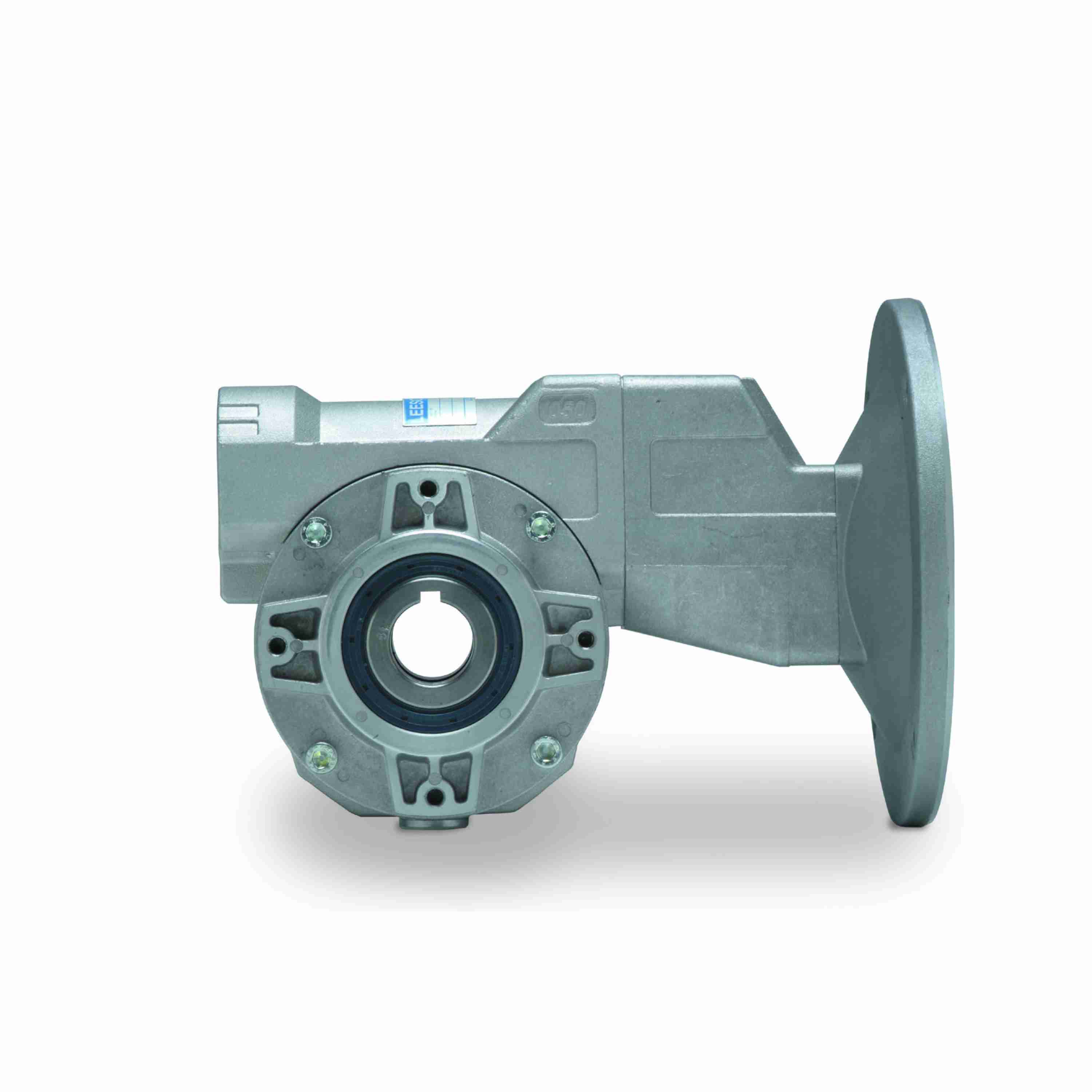

GROVE GEAR W5205093.00 DXHMQ520-184.9-H-56-16 Helical Reducer, 184.9:1 Ratio, 1 Inch Output Diameter, Aluminum
Item: AY2KGAModel: W5205093.00Cross Ref: DXHMQ520-184.9-H-56-16
7 In Stock
Ships within 2 days via
€1,596.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reducer |
| Assembly | DXHMQ-H |
| C | 5.33" |
| Ce | 1.1 |
| Center Distance | 1.97" |
| D | 1.93 |
| F | 1.5 |
| Frame | 56C |
| Frame Size | 56C |
| G | 0.12 |
| Gear Type | Helical, Worm |
| Housing Construction | Aluminum |
| Housing Material | Aluminum |
| I | 2 14/25" |
| Input Hp | 9/50 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Material | Aluminum |
| Max. Input Hp | 9/50 hp |
| No. Of Gear Reductions | 2 |
| Output Dia. | 1" |
| Output Hp | 11/125 hp |
| Output Key Size | 1/4" x 2" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H |
| Output Speed | 9.46 RPM |
| Output Torque | 589 lbs.-in. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | DXHMQ |
| Rq | 5.77" |
| Series | Bravo Series |
| Series Type | Bravo 500 Worm Gear Reducers |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | max. input hp | gear type | output torque | mounting type | gear ratio | no. of gear reductions | output shaft assembly code | assembly | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W5200081.00 | 1 49/250 hp | Worm | 583 lbs.-in. | Shaft Mount | - | 1 | H | HMQ-H | €509.73 | |
| W5200079.00 | 1.961 hp | - | - | Shaft | 10:1 | - | - | - | €799.39 | |
| W5200083.00 | 0.684 hp | Worm | 607 lbs.-in. | Shaft Mount | - | 1 | H | HMQ-H | €799.39 | |
| W5200080.00 | 1.494 hp | - | - | Shaft | 14:1 | - | - | - | €882.44 | |
| W5205033.00 | - | - | - | Shaft | 301:1 | - | - | - | €1,478.11 | |
| W5200082.00 | 0.889 hp | Worm | 577 lbs.-in. | Shaft Mount | - | 1 | H | HMQ-H | €799.39 | |
| W5200085.00 | 0.486 hp | Worm | 613 lbs.-in. | Shaft Mount | - | 1 | H | HMQ-H | €799.39 |
