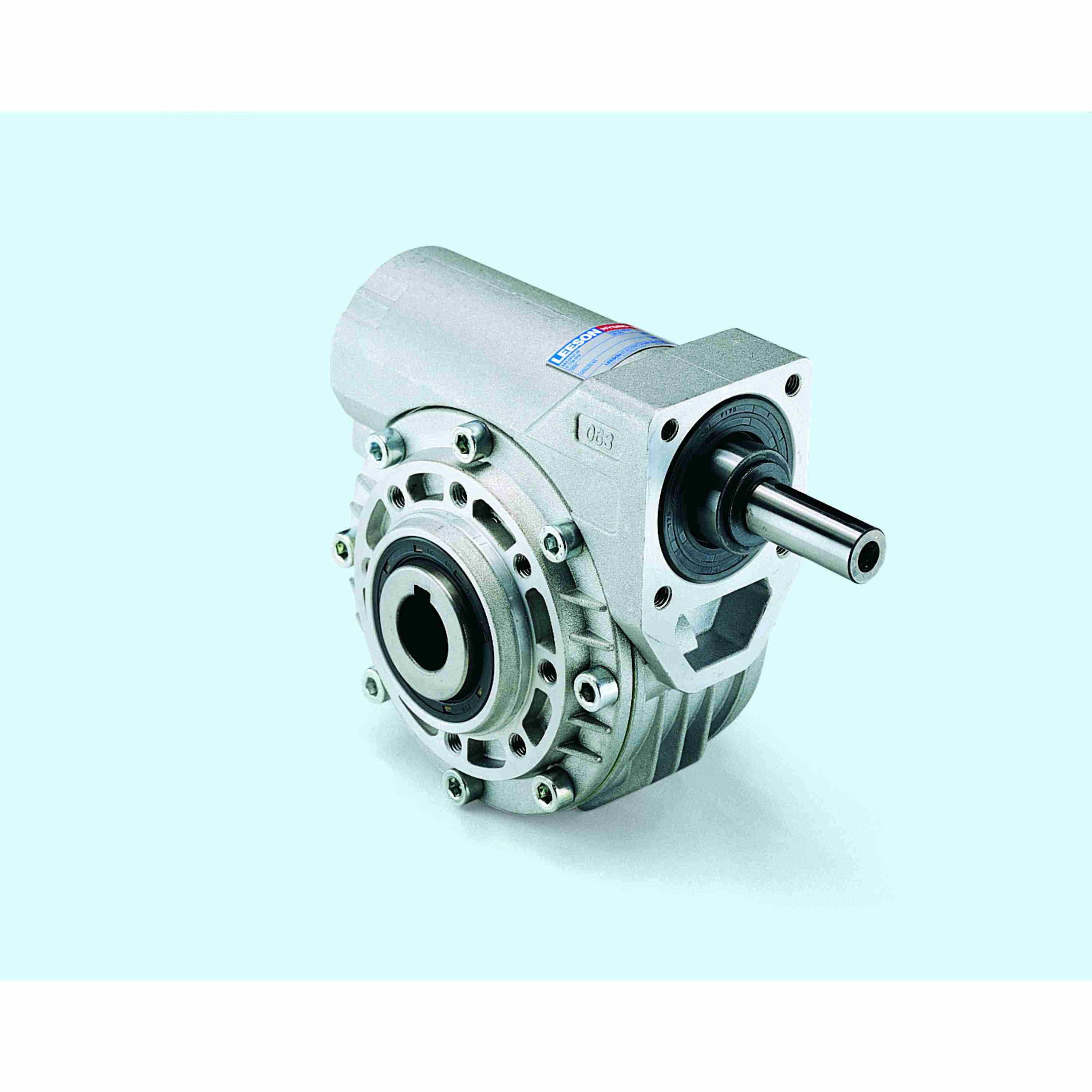

GROVE GEAR W5200074.00 H520-60-H-16 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum
Item: AY3MMKModel: W5200074.00Cross Ref: H520-60-H-16
7 In Stock
Ships within 2 days via
€983.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reducer |
| Assembly | H-H |
| Bore Code | 16 |
| C | 5.33" |
| Center Distance | 1.97" |
| D | 2.15 |
| F | 1.5 |
| G | 0.12 |
| Gear Type | Worm |
| Housing Material | Aluminum |
| I | 2 14/25" |
| Input Dia. | 5/8" |
| Input Hp | 0.486 hp |
| Input Keyway Size | 1/4" x 1.62" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| M | 1.74 |
| Material | Aluminum |
| Max. Input Hp | 0.486 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Hp | 0.282 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H |
| Output Shaft Orientation | H |
| Output Speed | 29 RPM |
| Output Style | H |
| Output Torque | 613 lbs.-in. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | Bravo Series |
| Series Style | H520-60-H-16-H |
| Series Type | Bravo 500 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Nitrile |
| U | 5/8" |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Hp | Max. Input Hp | Output Speed | Output Torque | Input Keyway Size | No. Of Gear Reductions | Gear Type | Reducer Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W5200081.00 | 0.897 hp | 1 49/250 hp | 97 RPM | 583 lbs.-in. | 1/4" x 1.62" | 1 | Worm | - | €509.73 | |
| W5200079.00 | 1.569 hp | 1.961 hp | - | - | 3/16" x 3/32" | Single | Worm | Worm - Right Angle | €799.39 | |
| W5200083.00 | 59/125 hp | 0.684 hp | 49 RPM | 607 lbs.-in. | 1/4" x 1.62" | 1 | Worm | Worm - Right Angle | €799.39 | |
| W5200080.00 | 1 9/50 hp | 1.494 hp | - | - | 3/16" x 3/32" | Single | Worm | Worm - Right Angle | €882.44 | |
| W5205033.00 | 0.165 hp | - | - | - | 3/16" x 3/32" | Double | Double-Worm | - | €1,478.11 | |
| W5200082.00 | 0.613 hp | 0.889 hp | 67 RPM | 577 lbs.-in. | 1/4" x 1.62" | 1 | Worm | Worm - Right Angle | €799.39 | |
| W5200085.00 | 0.282 hp | 0.486 hp | 29 RPM | 613 lbs.-in. | 1/4" x 1.62" | 1 | Worm | Worm - Right Angle | €799.39 |
