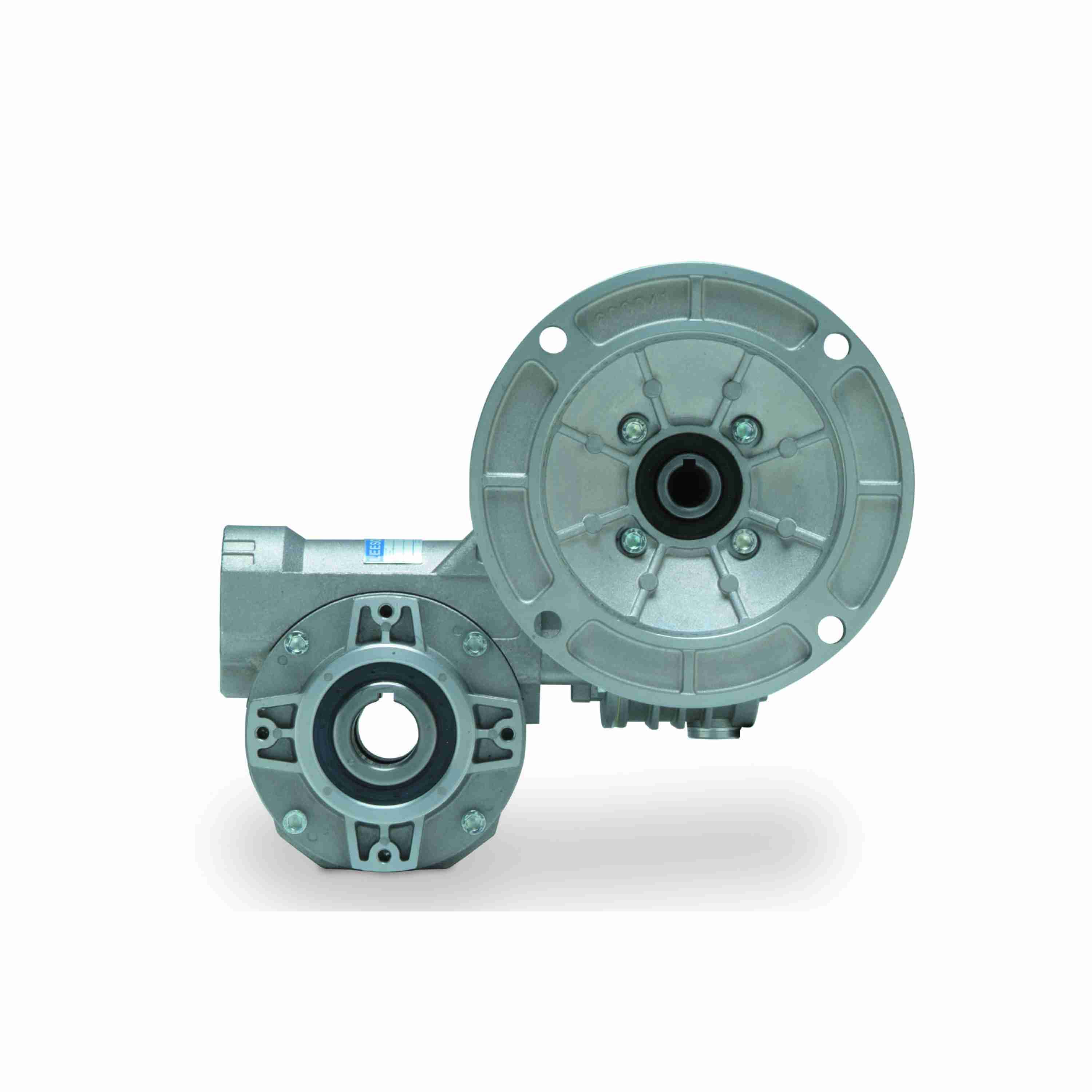

GROVE GEAR W5202527.00 DHMQ520-182-H1-56-16 Double Reduction Reducer, 182:1 Ratio, 1 Inch Output Diameter, Aluminum
€974.95 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | DHMQ-H1 |
| Bc | 4.53 |
| C | 7.3" |
| C1 | 4.76 |
| Ce | 1.77 |
| Center Distance | 1.97" |
| D1 | 1.93 |
| D2 | 2.15 |
| F | 1.5 |
| Frame | 56C |
| Frame Size | 56C |
| G | 0.12 |
| Gear Type | Double Worm |
| Housing Material | Aluminum |
| Input Hp | 0.259 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Material | Aluminum |
| Max. Input Hp | 0.259 hp |
| No. Of Gear Reductions | 2 |
| Output Dia. | 1" |
| Output Hp | 61/500 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Speed | 9.62 RPM |
| Output Torque | 799 lbs.-in. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | DHMQ |
| Reduction | Double |
| Reduction Type | Double |
| Rq | 2 3/5" |
| Series | Bravo Series |
| Series Type | Bravo 500 Worm Gear Reducers |
Product Variants
| Model | Output Hp | Max. Input Hp | Output Speed | Output Torque | Input Keyway Size | No. Of Gear Reductions | Gear Type | Reducer Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| W5200081.00 | 0.897 hp | 1 49/250 hp | 97 RPM | 583 lbs.-in. | 1/4" x 1.62" | 1 | Worm | - | €509.73 | |
| W5200079.00 | 1.569 hp | 1.961 hp | - | - | 3/16" x 3/32" | Single | Worm | Worm - Right Angle | €799.39 | |
| W5200083.00 | 59/125 hp | 0.684 hp | 49 RPM | 607 lbs.-in. | 1/4" x 1.62" | 1 | Worm | Worm - Right Angle | €799.39 | |
| W5200080.00 | 1 9/50 hp | 1.494 hp | - | - | 3/16" x 3/32" | Single | Worm | Worm - Right Angle | €882.44 | |
| W5205033.00 | 0.165 hp | - | - | - | 3/16" x 3/32" | Double | Double-Worm | - | €1,478.11 | |
| W5200082.00 | 0.613 hp | 0.889 hp | 67 RPM | 577 lbs.-in. | 1/4" x 1.62" | 1 | Worm | Worm - Right Angle | €799.39 | |
| W5200085.00 | 0.282 hp | 0.486 hp | 29 RPM | 613 lbs.-in. | 1/4" x 1.62" | 1 | Worm | Worm - Right Angle | €799.39 |
