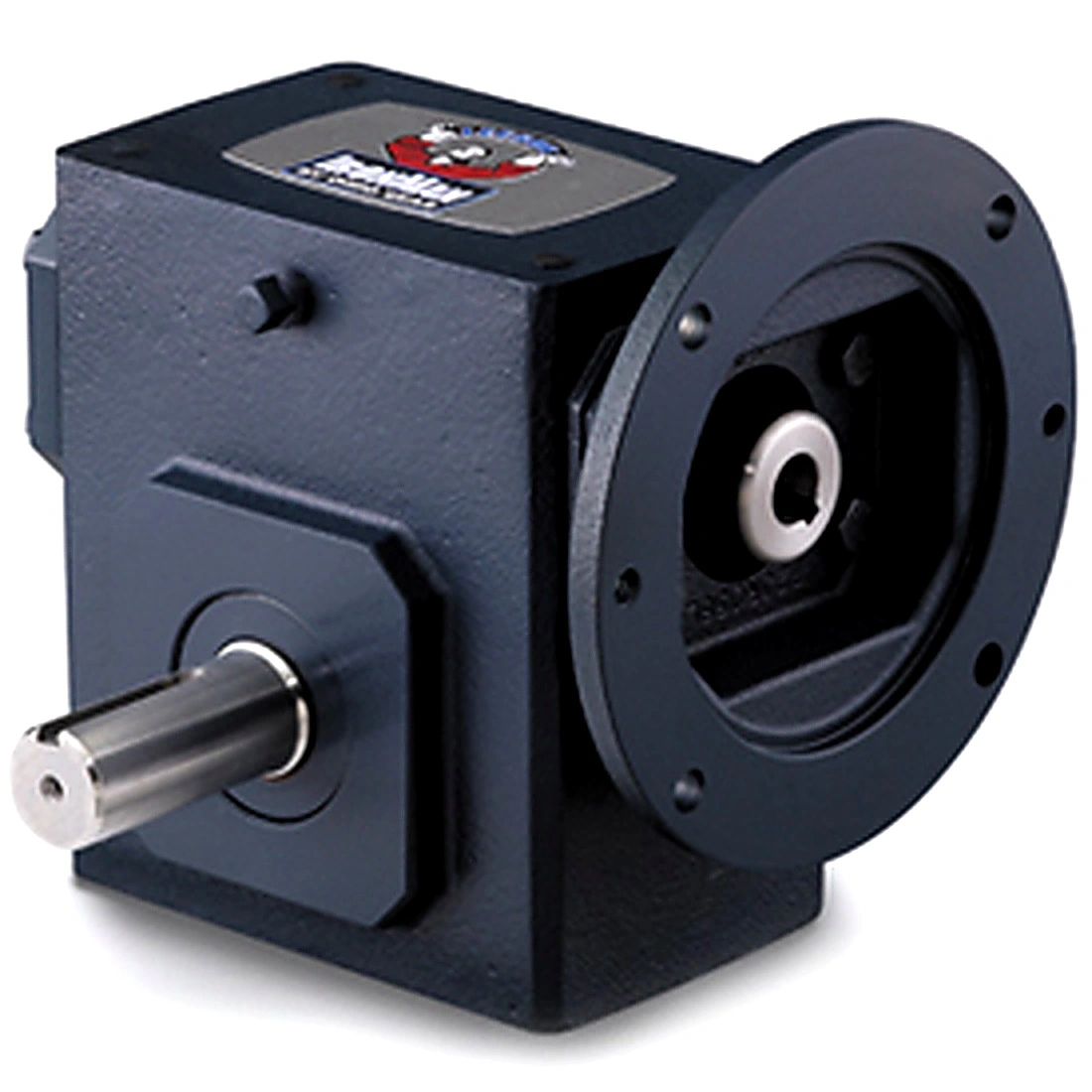

GROVE GEAR GRG8320290.00 Worm Reducer, 7.5:1 Ratio, 1.375 Inch I.D, 1.5 Inch O.D, Cast Iron
Get it by Friday, Feb 27
€2,558.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BMQ-L |
| Center Distance | 3 1/4" |
| Frame | 210TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 1 3/8" |
| Input Bore Size | 1 3/8" |
| Input Dia. | 1 3/8" |
| Input Hp @ 1750 Rpm | 8.863 hp |
| Input Keyway Size (c Face) | 5/16" x 5/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Cast Iron |
| Max Input Hp | 8 863/1000 hp |
| Max. Input Hp | 8.863 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/2" |
| Output Hp | 8 33/125 hp |
| Output Key Size | 3/8" x 2.63" |
| Output Rpm | 233 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 1 1/2" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 1869 |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 2232 lbs.-in. |
| Overhung Load | 2275 lbs. |
| Product Line | GRG Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GRG Series |
| Series Style | GRG-BMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Model | Gear Type | Output Shaft Type | Overhung Load | Max. Input Hp | Gear Ratio | Output Torque | Frame | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8325605.00 | - | - | - | - | - | - | - | Stainless Steel Coated | €3,597.96 | |
| GRG8320545.20 | - | - | - | - | - | - | - | Painted | €1,515.25 | RFQ
|
| GRG8320591.23 | - | - | - | - | - | - | - | - | €1,910.44 | |
| GRG8325596.00 | - | - | - | - | - | - | - | Painted | €1,933.01 | RFQ
|
| GRG8320549.31 | Worm | Hollow Shaft | - | 8 23/250 hp | - | 2700 lbs.-in. | 180TC | - | €3,525.43 | |
| GRG8320551.20 | - | - | - | - | - | - | - | - | €1,910.44 | |
| GRG8320551.31 | - | Hollow Shaft | - | - | - | - | - | - | €3,525.43 |
