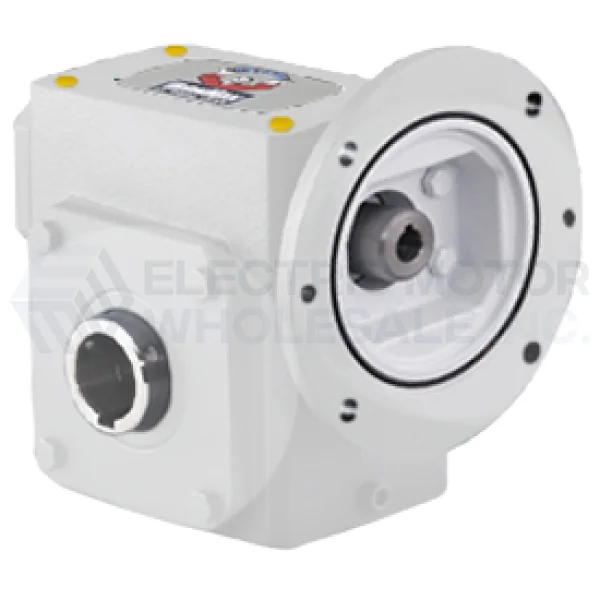

GROVE GEAR GRG8213519.16 GRG-WHMQ821-30-H1-140-16 Epoxy WashDown Right Angle Gear Reducer, 30 to 1 Ratio, 1 Inch Hollow Bore, 143-5TC NEMA Input, Cast Iron
Get it by Tuesday, Aug 18
€1,307.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | Epoxy Washdown |
| Certifications | USDA Accepted |
| Hollow Bore Dimensions | 1" |
| Housing | Cast Iron |
| Ip Rating | 69K |
| Max. Input Hp @ 1750 | 1.129 hp |
| Mount Footprint | 3 x 4.75 |
| Mount Style | WHMQ |
| Nema Input Mounting | 143-5TC |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 58.3 |
| Overhung Load Rating | 1000 lbs. |
| Reduction Ratio | 30:1 |
| Series | GRG |
| Series Size | 821 |
| Shaft Center Distance | 2.06 |
| Shaft Center Height | 2.28 |
| Torque (lb-in)@1750rpm | 968 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 17.78 |
Product Variants
| Model | Output Speed | Output Dia. | Input Dia. | Output Hp | Output Torque | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | Right | Blue | €1,501.47 | |
| GRG8210125.00 | 87.5 RPM | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Right | Blue | €1,050.98 | |
| GRG8210118.00 | 29.2 RPM | 1" | 5/8" | 0.435 hp | - | 0.674 hp | Left | Blue | €930.17 | |
| GRG8210113.00 | - | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Left | Blue | €1,050.98 | |
| GRG8210175.00 | 58.3 RPM | - | 7/8" | 0.896 hp | - | 1 129/1000 hp | - | Blue | €1,341.81 | |
| GRG8210117.00 | 35 RPM | 1" | 5/8" | 0.539 hp | - | 0.769 hp | Left | Blue | €930.17 | |
| GRG8210115.00 | - | 1" | 5/8" | 0.896 hp | - | 1.129 hp | Left | Blue | €930.17 |
