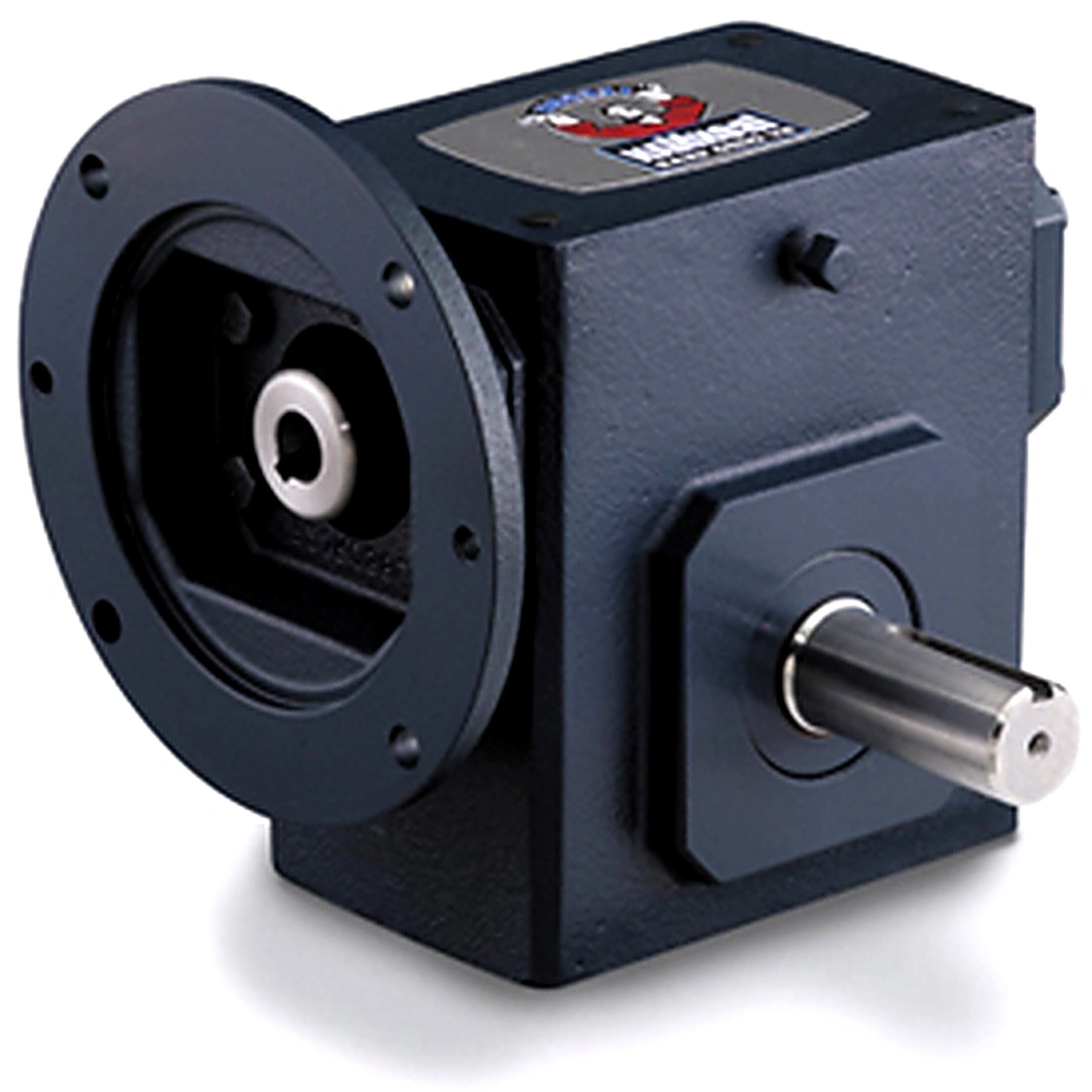

GROVE GEAR GRG8210175.00 GRG-BMQ821-30-D-140 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 968 lb-in Torque, Dual Shaft Output
Get it by Friday, Aug 28
€1,341.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Case Material | Cast Iron |
| Center Distance | 2.06" |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Frame Size | 140TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 1.13 hp |
| Input Bore (c Face) | 0.875 |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 1.129 hp |
| Input Hp @ 1750 Rpm | 1.129 hp |
| Input Quill Dia. | 7/8" |
| Input Style | C-Face Quill |
| Material | Cast Iron |
| Max. Hp | 1 13/100 hp |
| Max. Input Hp | 1 129/1000 hp |
| Max. Ohl (output Shaft) | 1255 |
| Max. Overhung Load | 1200 lbs. |
| Max. Thrust Load (output Shaft) | 1144 |
| No. Of Gear Reductions | Single |
| Output Hp | 0.896 hp |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Double |
| Output Shaft Type | Double Shaft |
| Output Speed | 58.3 RPM |
| Output Style | D |
| Output Type | Double Shaft |
| Paint/coating | Blue |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GRG Series - Ironman Worm Gear Reducers |
| Ratio | 30:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.13 SF @ 1 HP |
| Shaft Seal Material | Viton |
| Speed | 58 RPM |
| Torque | 968 lbs.-in. |
| Torque (lb-in)@1750rpm | 968 |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Output Speed | Output Dia. | Input Dia. | Output Hp | Output Torque | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | Right | Blue | €1,501.47 | |
| GRG8210125.00 | 87.5 RPM | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Right | Blue | €1,050.98 | |
| GRG8210118.00 | 29.2 RPM | 1" | 5/8" | 0.435 hp | - | 0.674 hp | Left | Blue | €930.17 | |
| GRG8210113.00 | - | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Left | Blue | €1,050.98 | |
| GRG8210117.00 | 35 RPM | 1" | 5/8" | 0.539 hp | - | 0.769 hp | Left | Blue | €930.17 | |
| GRG8210115.00 | - | 1" | 5/8" | 0.896 hp | - | 1.129 hp | Left | Blue | €930.17 | |
| GRG8210021.00 | 35 RPM | 1" | 5/8" | 0.539 hp | 970 lbs.-in. | 0.769 hp | Right | Blue | €958.95 |
