GROVE GEAR GRG8210068.00 GRG-BM821-40-D-56 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron
Get it by Wednesday, Dec 24
€1,341.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BM-D |
| Center Distance | 2.06" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 0.916 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Keyway Size | 3/16" x 3/32" |
| Material | Cast Iron |
| Max Input Hp | 229/250 hp |
| Max. Input Hp | 0.916 hp |
| Mounting Type | No Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 0.674 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Rpm | 43 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Double Shaft |
| Output Style | D |
| Output Torque | 971 lbs.-in. |
| Overhung Load | 1315 lbs. |
| Product Line | GRG Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GRG Series |
| Series Style | GRG-BM-D |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 0.63" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Model | Gear Type | Max. Input Hp | Output Shaft Type | Overhung Load | Gear Ratio | Output Torque | Mounting Type | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | - | - | €1,501.47 | |

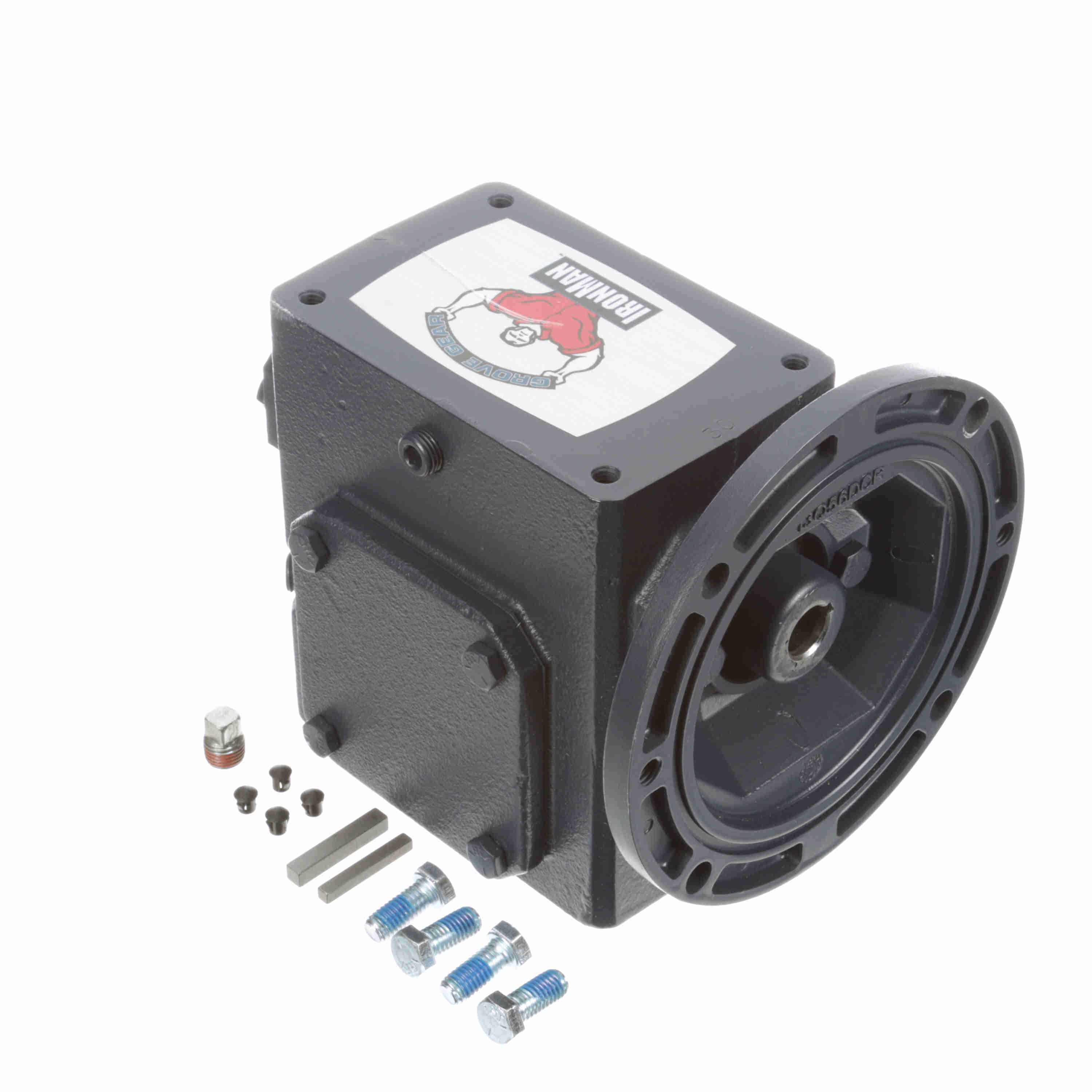

| GRG8210125.00 | - | 1.584 hp | Right Handed Shaft | - | 20:1 | - | No Base | - | €1,050.98 | |
| GRG8210118.00 | - | 0.674 hp | Left Handed Shaft | - | 60:1 | - | No Base | - | €930.17 | |
| GRG8210113.00 | - | 1.584 hp | Left Handed Shaft | - | 20:1 | - | No Base | - | €1,050.98 | |
| GRG8210175.00 | - | - | Double Shaft | - | - | - | - | - | €1,341.81 | |
| GRG8210117.00 | - | 0.769 hp | Left Handed Shaft | - | 50:1 | - | No Base | - | €930.17 | |
| GRG8210115.00 | - | 1.129 hp | - | - | 30:1 | - | No Base | - | €930.17 |
