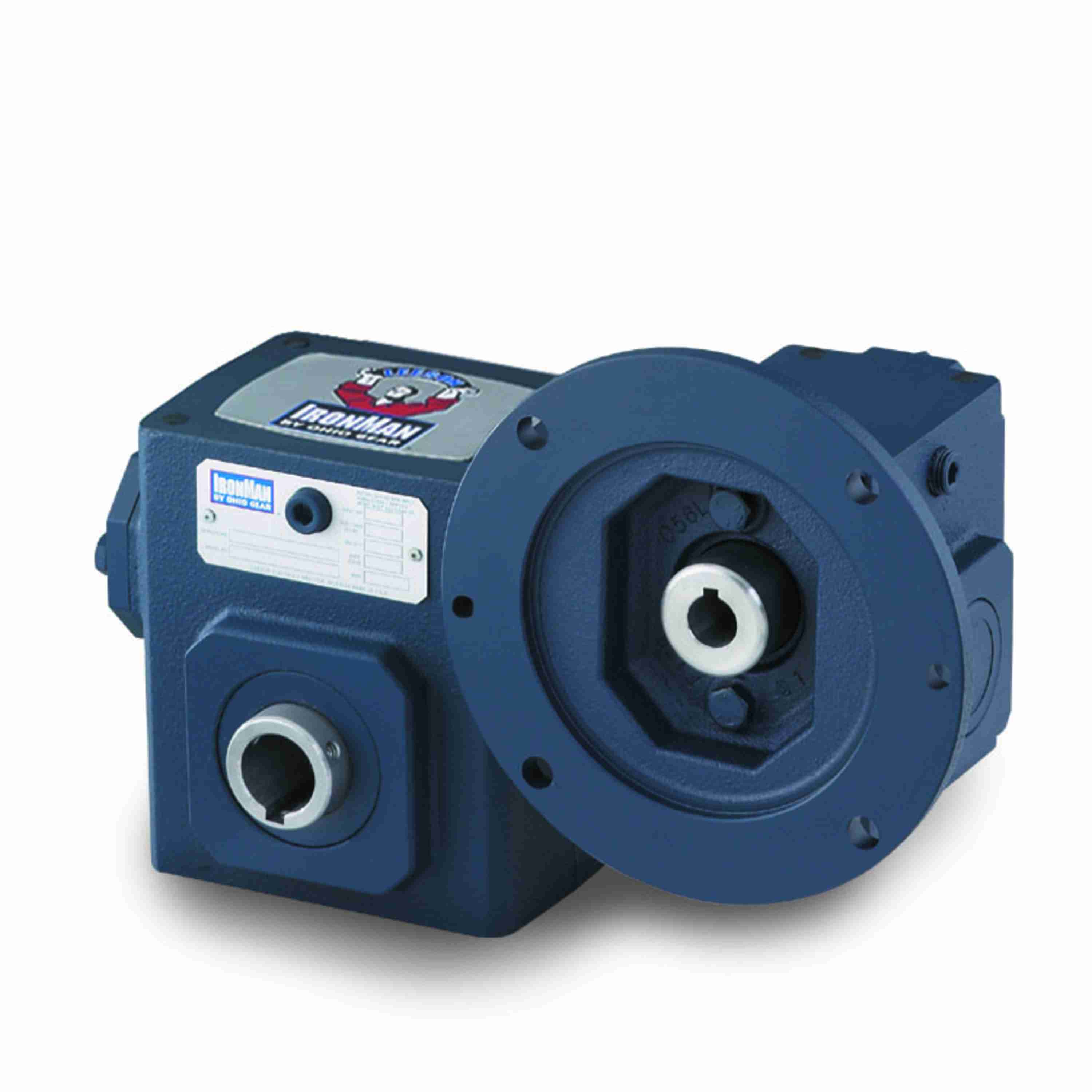

GROVE GEAR GR8245570.00 GR-WDHMQ824-100-H11-56-19 Double Reduction Reducer, 100:1 Ratio, 1.188 Inch Output Diameter, Cast Iron
Get it by Thursday, Aug 27
€2,357.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 7.69 |
| Ab | 5.75 |
| Ae1 | 0.51 |
| Ae2 | 0.31 |
| Aj | 5.88 |
| B | 6.12 |
| Bc | 6.44 |
| Be | 0.38" |
| Bf | 0.41 |
| Bore Code | 19 |
| C | 7.81" |
| C1 | 4.66 |
| Ce | 1.33 |
| Center Distance | 2.38" |
| D1 | 1.72 |
| F | 2.88 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.44 |
| Gear Type | Double Worm |
| H | 0.53" |
| Housing Material | Cast Iron |
| I | 3.77" |
| Input Hp | 0.829 hp |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| J | 5" |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 0.829 hp |
| Mounting Assembly | 1 |
| Mounting Type | Base |
| No. Of Gear Reductions | 2 |
| Output Dia. | 1.188" |
| Output Hp | 0.567 hp |
| Output Key Size | 1/4" x 2.5" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | WDHMQ-H11 |
| Output Shaft Orientation | H11 |
| Output Speed | 17.5 RPM |
| Output Torque | 2041 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| R | 3/4" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Double |
| Reduction Type | Double |
| Series | GR Series |
| Series Style | GR-WDHMQ |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| V | 1.94" |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8240166.00 | 1604 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Right | Blue | €1,119.76 | |
 |
GR8240154.00 | 1219 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Left | Blue | €1,265.18 | |
 |
GR8240159.00 | - | 175 RPM | 1 1/8" | 3.253 hp | 5/8" | 3 141/250 hp | Right | Blue | €1,540.94 | |
 |
GR8240565.18 | 1421 lbs.-in. | 87.5 RPM | 1 1/8" | 1.972 hp | 7/8" | 2.326 hp | Hollow | Blue | €2,095.34 | |
|
GR8241164.00 | 1433 lbs.-in. | 43.75 RPM | - | 0.994 hp | - | - | Right | Blue | €1,422.33 | RFQ
|
 |
GR8240519.20 | 1423 lbs.-in. | 58.3 RPM | 1 1/4" | 1.317 hp | 3/4" | 1.653 hp | Hollow | Blue | €2,095.34 | |
 |
GR8240510.19 | 1418 lbs.-in. | 29.2 RPM | 1 3/16" | - | 3/4" | - | - | - | €1,051.60 |
