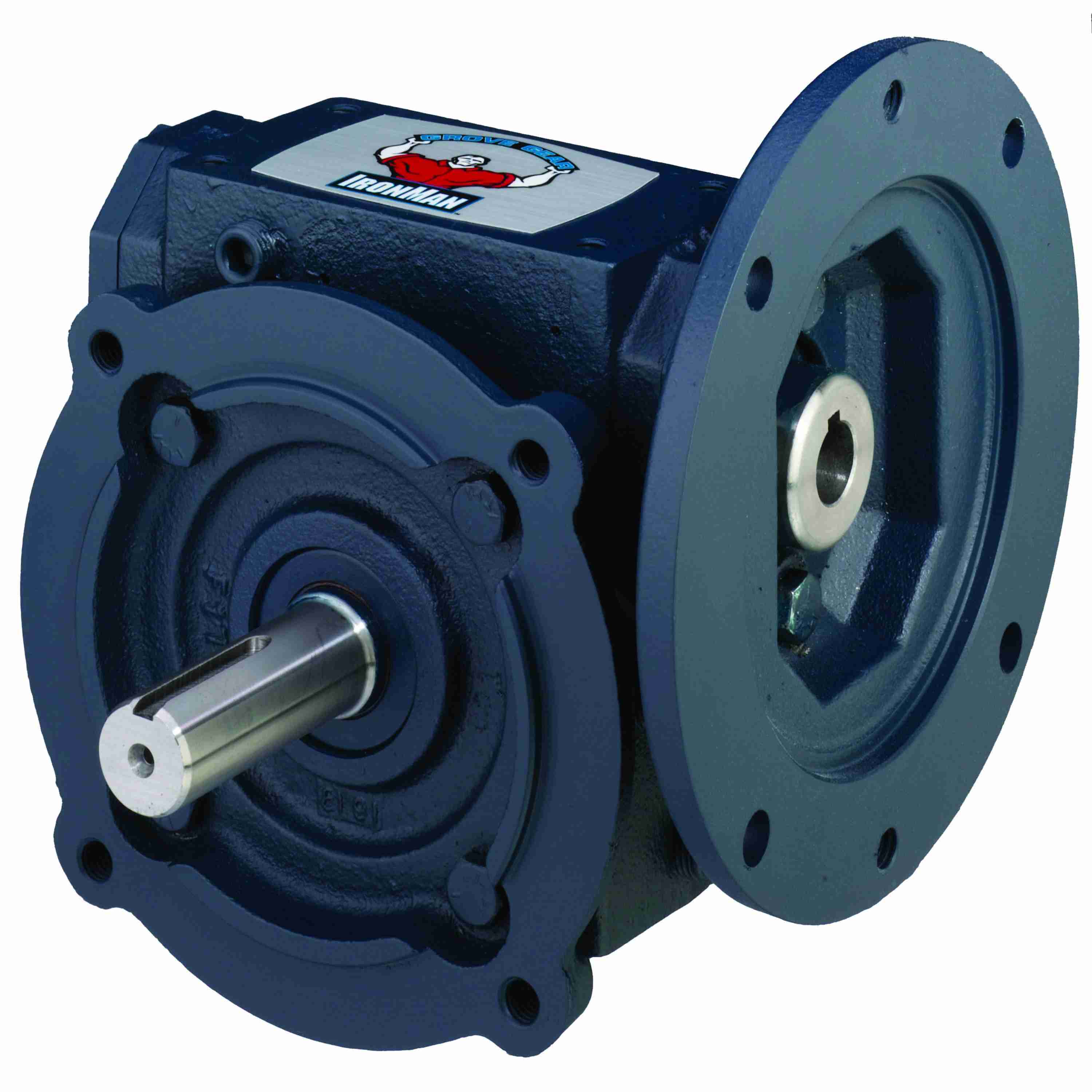

GROVE GEAR GR8240159.00 GR-BMQ824-10-R-56 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron
Get it by Wednesday, Aug 26
€1,540.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Case Material | Cast Iron |
| Center Distance | 2.38" |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 3 14/25 hp |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 3.564 hp |
| Input Hp @ 1750 Rpm | 3.564 hp |
| Input Style | C-Face Quill |
| Material | Cast Iron |
| Max. Hp | 3 14/25 hp |
| Max. Input Hp | 3 141/250 hp |
| Max. Ohl (output Shaft) | 1770 |
| Max. Overhung Load | 1065 lbs. |
| Max. Thrust Load (output Shaft) | 1820 |
| No. Of Gear Reductions | Single |
| Output | Right |
| Output Dia. | 1 1/8" |
| Output Hp | 3.253 hp |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 175 RPM |
| Output Style | R |
| Output Type | Right Shaft |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Ratio | 10:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series | GR Series - Ironman Worm Gear Reducers |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.78 SF @ 2 HP |
| Service Factor 2 | 2.37 SF @ 1 1/2 HP |
| Service Factor 3 | 3.56 SF @ 1 HP |
| Shaft Seal Material | Viton |
| Speed | 175 RPM |
| Torque | 1172 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8240166.00 | 1604 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Right | Blue | €1,119.76 | |
 |
GR8240154.00 | 1219 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Left | Blue | €1,265.18 | |
 |
GR8240565.18 | 1421 lbs.-in. | 87.5 RPM | 1 1/8" | 1.972 hp | 7/8" | 2.326 hp | Hollow | Blue | €2,095.34 | |
|
GR8241164.00 | 1433 lbs.-in. | 43.75 RPM | - | 0.994 hp | - | - | Right | Blue | €1,422.33 | RFQ
|
 |
GR8240519.20 | 1423 lbs.-in. | 58.3 RPM | 1 1/4" | 1.317 hp | 3/4" | 1.653 hp | Hollow | Blue | €2,095.34 | |
 |
GR8240510.19 | 1418 lbs.-in. | 29.2 RPM | 1 3/16" | - | 3/4" | - | - | - | €1,051.60 | |
 |
GR8241155.00 | 830 lbs.-in. | 21 RPM | 1 1/8" | 36/125 hp | 5/8" | 91/200 hp | - | - | €1,007.62 |
