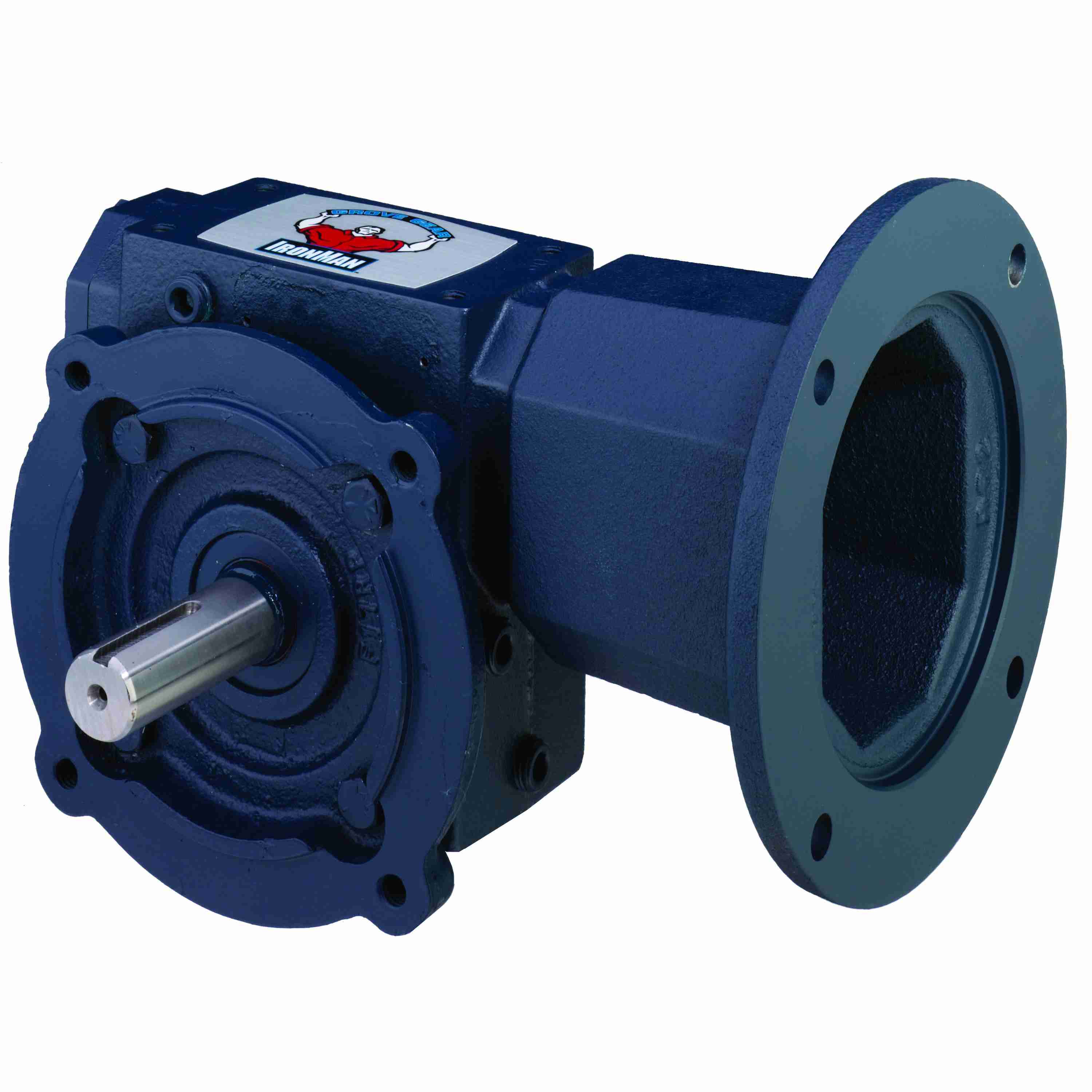

GROVE GEAR GR8241287.00 GR-CM824-10-L-210 Worm Reducer, 10:1 Ratio, 1.375 Inch I.D, 1.125 Inch O.D, Cast Iron
Get it by Thursday, Aug 27
€1,007.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 8.5 |
| Aj | 7.25 |
| Ak | 8.5 |
| Assembly | CM-L |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 6 22/25" |
| Center Distance | 2.38" |
| D | 2.69 |
| Frame | 210TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| I | 3.77" |
| Input Bore (c Face) | 1 3/8" |
| Input Dia. | 1 3/8" |
| Input Hp | 3.564 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 5/16" x 5/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| J | 7 1/4" |
| L1 | 8 19/25" |
| Max. Input Hp | 3.564 hp |
| N | 6.59 |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/8" |
| Output Hp | 3.253 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 175 RPM |
| Output Style | L |
| Output Torque | 1172 lbs.-in. |
| Overhung Load | 1770 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| R | 2.37" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-CM-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| T | 1.125 |
| Tap Size | 1/2"-13 |
| Thread Type | Coarse |
| U | 3/4" |
| X | 1.97" |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8240166.00 | 1604 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Right | Blue | €1,119.76 | |
 |
GR8240154.00 | 1219 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Left | Blue | €1,265.18 | |
 |
GR8240159.00 | - | 175 RPM | 1 1/8" | 3.253 hp | 5/8" | 3 141/250 hp | Right | Blue | €1,540.94 | |
 |
GR8240565.18 | 1421 lbs.-in. | 87.5 RPM | 1 1/8" | 1.972 hp | 7/8" | 2.326 hp | Hollow | Blue | €2,095.34 | |
|
GR8241164.00 | 1433 lbs.-in. | 43.75 RPM | - | 0.994 hp | - | - | Right | Blue | €1,422.33 | RFQ
|
 |
GR8240519.20 | 1423 lbs.-in. | 58.3 RPM | 1 1/4" | 1.317 hp | 3/4" | 1.653 hp | Hollow | Blue | €2,095.34 | |
 |
GR8240510.19 | 1418 lbs.-in. | 29.2 RPM | 1 3/16" | - | 3/4" | - | - | - | €1,051.60 |
