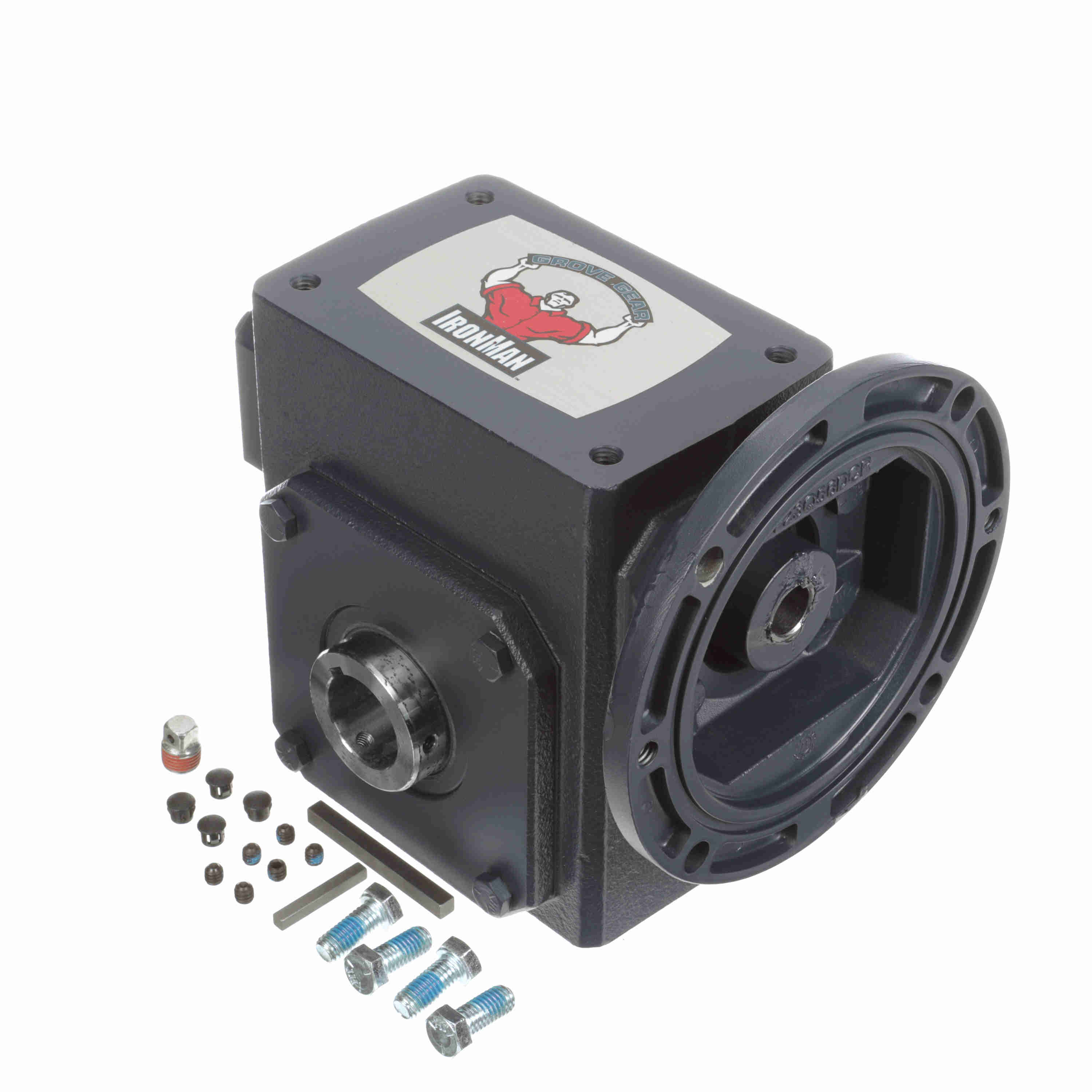

GROVE GEAR GR8240565.23 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Cast Iron | AX8NVC

GROVE GEAR GR8240565.23 GR-HMQ824-20-H1-140-23 Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87.5 RPM Output, 1421 lb-in Torque, Cast Iron

Item: AX8NVCModel: GR8240565.23Cross Ref: GR-HMQ824-20-H1-140-23
Check Availability
In Stock
20:1
1 7/16"
143-5TC

Get it by Tuesday, Jul 14

€1,668.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Aa 7.69
Ab 5.75
Ae1 0.51
Ae2 0.31
Aj 5.88
Application General Purpose
Assembly HMQ-H1
B 6.12
Be 0.38"
Bf 0.41
Bore Code 23
C 6.94"
Center Distance 2.38"
F 2.88
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame 140TC
G 1.44
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 47 lbs.
H 0.53"
Housing Material Cast Iron
I 3.77"
Input Bore (c Face) 7/8"
Input Bore Size 7/8"
Input Dia. 7/8"
Input Hp 2.326 hp
Input Hp @ 1750 Rpm 2.326 hp
Input Keyway Size 3/16" x 1.63"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Quill Dia. 7/8"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
J 5"
Key Way Size 3/16" x 3/32"
Lq 4.63"
M 2.38
Material Cast Iron
Max. Input Hp 2.326 hp
Max. Ohl (output Shaft) 1770
Max. Thrust Load (output Shaft) 2091
Motor Hp 2 hp
Mounting Type Shaft Mount
No. Of Gear Reductions 1
Nominal Motor Hp Rating To Hp @ 1750 Rpm 2 hp
Output Hollow
Output Dia. 1.438"
Output Hollow Shaft Dia. 1.438"
Output Hp 1.972 hp
Output Key Size 3/8" x 3"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 2091
Output Shaft Type Hollow Shaft
Output Speed 87.5 RPM
Output Style H1
Output Torque 1421 lbs.-in.
Output Type Hollow Bore
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
R 3/4"
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 4.09"
Series GR Series
Series Style GR-HMQ-H1
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
Speed 87.5 RPM
T 1.438
Torque (lb-in)@1750rpm 1421
U 3/4"
V 1.94"

Shipping Info:

Ship weight (kg) 21.15
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Product Variants

ProductModeloutput torquegear typemax. input hpmounting typegear ratiocenter distanceoutput shaftno. of gear reductionsPrice
GROVE GEAR GR8240166.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Right Angle Cast Iron | AX4HJP GR8240166.00--0.967 hpBase60:12.38"--€1,119.76
GROVE GEAR GR8240154.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4HUH GR8240154.00--0.967 hpBase60:12.38"--€1,265.18
GROVE GEAR GR8240159.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4JCQ GR8240159.00--3 141/250 hp--2.38"--€1,540.94
GROVE GEAR GR8240565.18 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Cast Iron | AX4MRN GR8240565.181421 lbs.-in.Worm2.326 hpShaft Mount-2.38"Hollow Bore1€2,095.34
GROVE GEAR GR8241164.00 Quill Input Worm Gear Reducer | AX6CNV GR8241164.001433 lbs.-in.----2.4"--€1,422.33
RFQ
GROVE GEAR GR8240519.20 Worm Reducer, 30:1 Ratio, 0.75 Inch I.D, 1.25 Inch O.D, Cast Iron | AX6WUM GR8240519.201423 lbs.-in.Worm1.653 hpShaft Mount-2.38"Hollow Bore1€2,095.34
GROVE GEAR GR8240510.19 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX6XKJ GR8240510.191418 lbs.-in.Worm-Shaft Mount-2.38"Hollow Bore1€1,051.60
