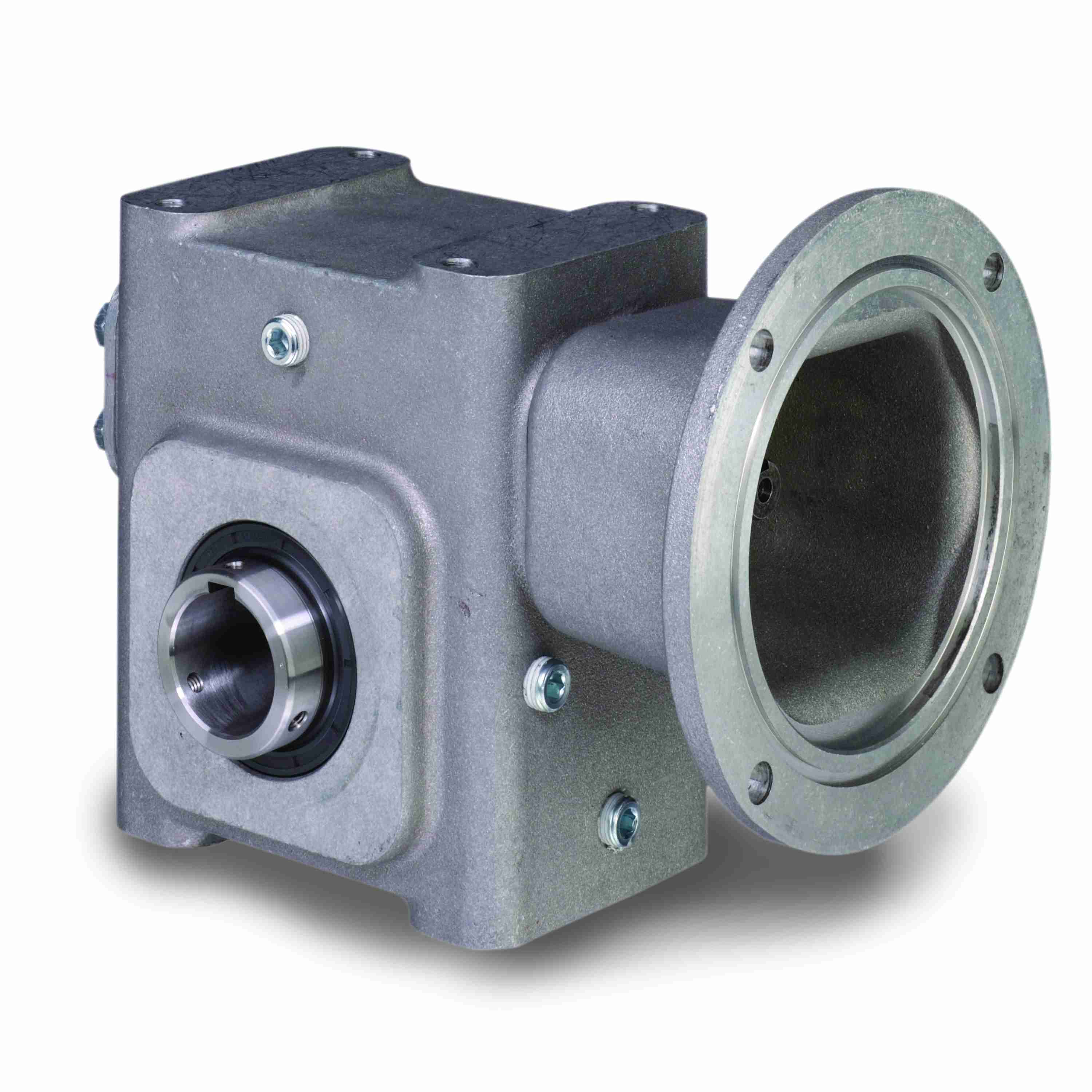

GROVE GEAR EL8420567.35 EL-HM842-30-H_-250-35 Worm Reducer, 30:1 Ratio, 1.625 Inch I.D, 2.188 Inch O.D, Aluminum
Get it by Friday, Aug 28
€3,711.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | HM-H1 |
| Bore Code | 35 |
| Center Distance | 4 1/4" |
| Frame | 250TC |
| Gear Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 1 5/8" |
| Input Dia. | 1 5/8" |
| Input Hp | 6.481 hp |
| Input Keyway Size | 3/8" x 3/16" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| Material | Aluminum |
| Max. Input Hp | 6.481 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Dia. | 2.188" |
| Output Hp | 5.517 hp |
| Output Key Size | 1/2" x 3.38" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Speed | 58 RPM |
| Output Style | H1 |
| Output Torque | 5960 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Shipping Info:
| Ship weight (kg) | 46.8 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
Product Variants
| Model | Output Dia. | Input Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Output Key Size | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8420517.35 | 2.188" | 5/8" | 8.458 hp | 87 RPM | 6092 lbs.-in. | 9.462 hp | 1/2" x 3.38" | 56C | €3,711.21 | |
| EL8420561.35 | 2.188" | 1 5/8" | 17 1/4 hp | 350 RPM | 3209 lbs.-in. | 18 2/25 hp | 1/2" x 3.38" | 250TC | €3,711.21 | |
| EL8420546.35 | 2.188" | 1 1/8" | 2.772 hp | 29 RPM | 5989 lbs.-in. | 3.681 hp | 1/2" x 3.38" | 180TC | €3,711.21 | |
| EL8420535.23 | 1.438" | 7/8" | 1.257 hp | 21 RPM | 3620 lbs.-in. | 1 19/25 hp | 3/8" x 3" | 140TC | €3,248.11 | |
| EL8420548.35 | 2.188" | 1 1/8" | 99/125 hp | 17 RPM | 2852 lbs.-in. | 1.201 hp | 1/2" x 3.38" | 180TC | €3,711.21 | |
| EL8420554.31 | 1.938" | 1 3/8" | 6.946 hp | 70 RPM | 6254 lbs.-in. | 7 47/50 hp | 1/2" x 3.38" | 210TC | €3,711.21 | |
| EL8420519.35 | 2.188" | 5/8" | 5.517 hp | 58 RPM | 5960 lbs.-in. | 6.481 hp | 1/2" x 3.38" | 56C | €3,711.21 |
