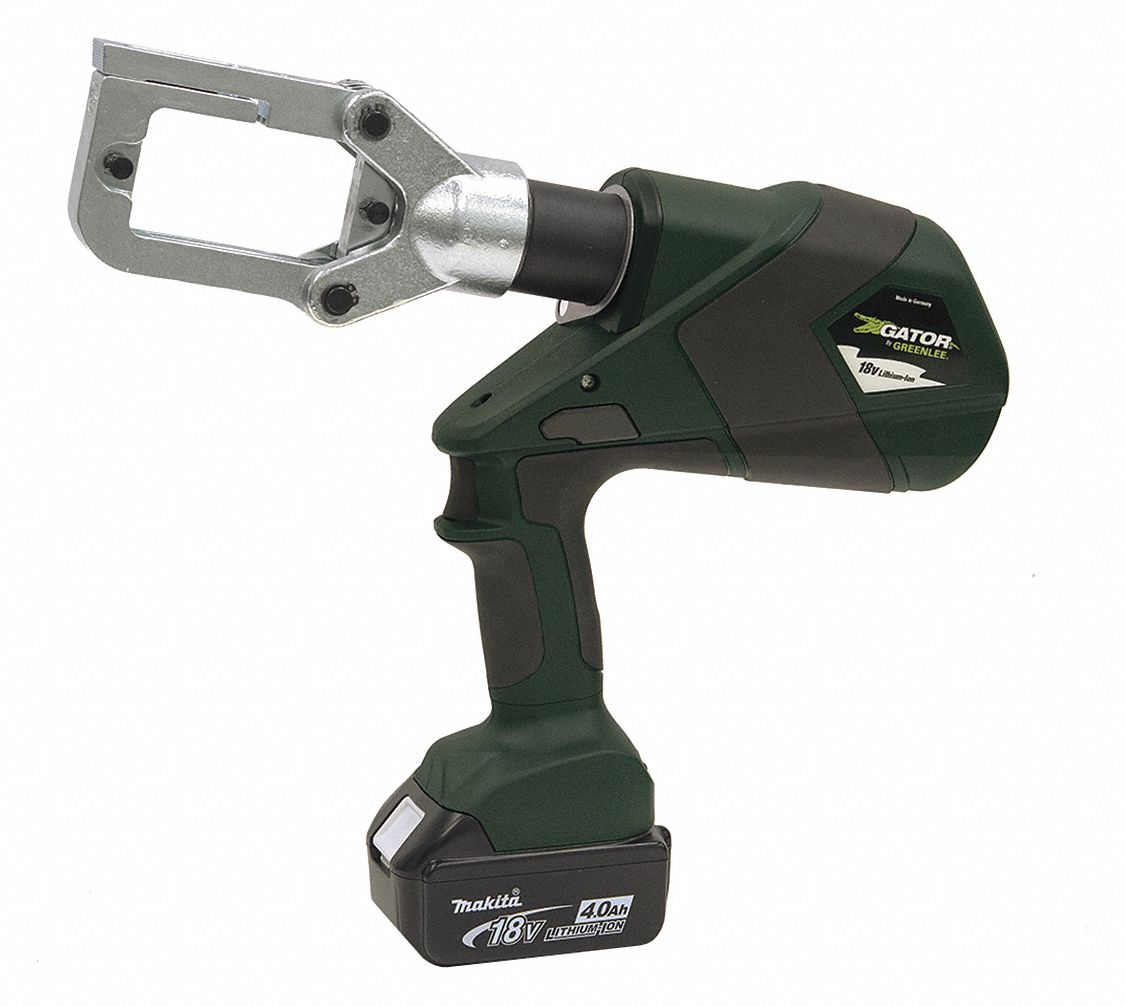

GREENLEE E6CCXLX11 Cordless Crimping Tool, 6 ton Max. Crimping Force, U Style
Get it by Tuesday, Aug 25
5.00% off
€5,773.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Crimping Tool |
| Application | 6 Ton. Crimping/Cutting |
| Auto-cycle | Yes |
| Battery Capacity | 4 Ah |
| Battery Platform | Makita 18V LXT |
| Compatible Connector Type | Aluminum Lug, Copper Lug |
| Compatible Die Type | U |
| Compatible Max. Wire/cable Dia. | 600 kcmil |
| Compatible Min. Wire/cable Dia. | 8 AWG |
| Compatible Wire/cable Type | Aluminum Cable, Copper Cable |
| Connector Type | Color Coded Lugs, Splices |
| Cordless Tool Kit Contents | (2) Batteries, Bare Tool, Charger |
| Crimp Head Type | Die |
| Crimping Capacities | 350 kcmil, 600 kcmil |
| Crimping Capacity | 600 Kcmil, 350 Kcmil |
| Crimping Force | 12000 lbs. |
| Features | Retraction Stop Repeat (Rsr) Allows The Operator To Partially Retract The Ram And Then The Tool Repeats The Retraction For Subsequent Crimps, Use Optional Ccx Blade And Adapters |
| Grip Material | Rubber |
| Grip Style | Tacky |
| Handle Type | Pistol Style With Over Molded Rubber Grip |
| Head Rotation | 350° |
| Head Style | Latching |
| Included Batteries | Yes |
| Included Battery Part Number | 05167 |
| Included Charger | Yes |
| Included Charger Part No. | 52180 |
| Included Charger Part Number | 52180 |
| Max. Aluminum Lug Capacity | 350 kcmil |
| Max. Copper Lug Capacity | 600 kcmil |
| Min. Aluminum Lug Capacity | 8 AWG |
| Min. Copper Lug Capacity | 8 AWG |
| No. Of Batteries Included | 2 |
| No. Of Dies Included | 0 |
| Overall Height | 12.9" |
| Overall Length | 14 3/4" |
| Overall Width | 3" |
| Power Source | Cordless |
| Tool Series | Series Gator |
| Tool Weight | 14 lbs. |
| Type | Die Style Crimper/Cutter |
| Voltage | 18V |
| Wire Size | 8 AWG to 600 Kcmil Cu, 8 AWG to 350 Kcmil Al , 8 AWG to 600 Kcmil, 8 AWG to 350 Kcmil |
| Wireless Tool Tracking | No |
Shipping Info:
| Ship weight (kg) | 12.11 |
| Ship height (cm) | 32.77 |
| Ship length (cm) | 38.86 |
| Ship width (cm) | 7.62 |
| Country of Origin | DE |
Product Variants
| Product | Model | Crimping Capacity | Max. Aluminum Lug Capacity | Compatible Max. Wire/cable Dia. | Max. Copper Lug Capacity | Crimping Force | Tool Weight | Crimping Capacities | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E12CCXLX11 | 750 kcmil | 750 kcmil | 750 kcmil | 750 kcmil | 24000 lbs. | 15 lbs. | 750 kcmil | 12 Ton. Crimping/Cutting | €11,069.18 |
