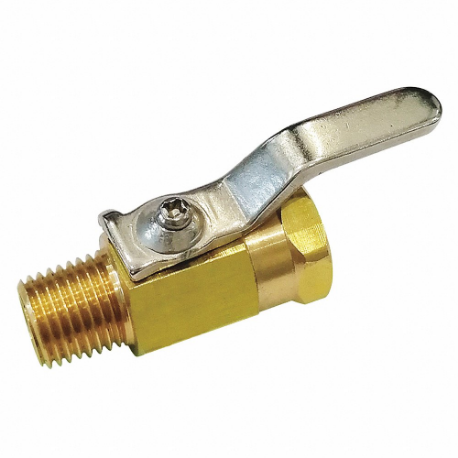

GRAINGER G-MMFP-25 Mini Ball Valve, 1/4 Inch Pipe, Standard, 500 Psi Cwp, -35 Deg To 300 Deg F, Lever Handle
Item: CQ2LPBModel: G-MMFP-25Cross Ref: 21VL79
7 In Stock
Ships within 2 days via
5.00% off
€15.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mini Ball Valve |
| 3-a Certified | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Standard Port |
| Body Material | Brass |
| Body Seal Material | Nitrile |
| Body Style | Inline |
| Coefficient Of Volume | 8.23 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Male |
| Connection Size-side 1 | 1/4" |
| Connection Size-side 2 | 1/4" |
| Connection Type | FNPT x MNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Air, Steam, Water |
| Handle | Lever |
| Handle Color | Chrome |
| Handle Finish | Chrome Plated |
| Handle Material Finish | Carbon Steel , Chrome Plated |
| Handle Type | Lever |
| Max. Pressure | 500 psi |
| Max. Pressure (cwp) | 500 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Media Temp. | -35°F to +300°F |
| Nominal Valve Size | 1/4" |
| Overall Length | 0.7" |
| Pipe Size | 1/4" |
| Port | Standard |
| Seal Material | Buna N |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. | -35°F to +300°F |
| Vacuum Service Rating | 29.9 in. hg |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Structure | One Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Seat Material | Max. Pressure | Stem Material | Ball Material | Temp. | Body Style | Valve Structure | Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06Q031B04112 | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | +32°F to +320°F | Two Way | Three Piece | Full | €224.82 | |
 |
107-827-CL | PTFE | 600 psi | - | Stainless Steel | -20°F to +300°F | Inline | Two Piece | Full | €122.76 | |
 |
SSV-150 | PTFE | 1500 psi | Stainless Steel | Stainless Steel | 0°F to +400°F | Inline | One Piece | Full | €384.65 | |
 |
SSV-150NLH | PTFE | 1500 psi | Stainless Steel | Stainless Steel | 0°F to +400°F | Inline | Two Piece | Full | €380.89 | |
 |
G-F600-150 | PTFE | 600 psi | Brass | - | 0°F to +350°F | Inline | Two Piece | Full | €124.63 | |
 |
G-F600-150LH | PTFE | 600 psi | Brass | - | 0°F to +350°F | Inline | Two Piece | Full | €128.61 | |
|
06Q031B04114 | PCTFE, PTFE, RPTFE | 1000 psi | Stainless Steel | Stainless Steel | +32°F to +320°F | Two Way | Three Piece | Full | €160.72 |
