GRAINGER SSV-150 Ball Valve, 1 1/2 Inch Pipe, 1, 500 PSI CWP, 0-400 Deg F | CQ2LKA 20K959

GRAINGER SSV-150 Ball Valve, 1 1/2 Inch Pipe, 1, 500 PSI CWP, 0-400 Deg F

Item: CQ2LKAModel: SSV-150Cross Ref: 20K959
7 In Stock

Ships within 2 days via

€346.54
10.00% off
€311.89 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Ball Valve
3-a Compliance Not Rated
Ball Material Stainless Steel
Ball Material Grade Grade 316
Ball Port Style Full Port
Body Material Stainless Steel
Body Seal Material PTFE
Body Style Inline
Coefficient Of Volume (cv) 131.93
Connection Gender - Side 1 Female
Connection Gender - Side 2 Female
Connection Size - Side 1 1 1/2"
Connection Size - Side 2 1 1/2"
Connection Type FNPT x FNPT
Connection Type - Side 1 NPT
Connection Type - Side 2 NPT
For Media Air, Steam, Water
Handle Locking Lever
Handle - Locking Locking
Handle Color Blue
Handle Material Stainless Steel
Handle Material Grade Grade 304
Handle Type Lever
Max. Media Temperature 400°F
Max. Pressure 1500 psi
Max. Pressure (combustible Gas) Not Rated
Max. Pressure (cwp) 1500 psi
Max. Pressure (steam) 150 psi
Max. Steam Pressure 150 psi WSP
Media Temp. Range 0°F to 400°F
Min. Media Temperature 0°F
Nominal Valve Size 1 1/2"
Overall Length 7.19"
Pipe Size 1 1/2"
Port Full
Seal Material PTFE
Seat Material PTFE
Standards Ansi B1.20.3
Stem Grade Grade 316
Stem Material Stainless Steel
Stem Type Blowout Resistant
Temp. Range 0°F to +400°F
Vacuum Service Rating 29.9 in. hg
Valve Body Style Straight
Valve Construction One-Piece
Valve Structure One Piece
Vented Ball Valve Non Vented

Shipping Info:

Ship weight (kg) 1.34
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelConnection TypeSeat MaterialMax. PressureStem MaterialBody MaterialSeal MaterialHandleOverall LengthPrice
GRAINGER 06Q031B04112 Ball Valve, 1 1/2 Inch Pipe, 1 1/2 Inch Tube, 1000 PSI, 32-320 Deg F, Weld | CQ2LJY 796AC0 06Q031B04112Butt Weld x Butt WeldPCTFE, PTFE, RPTFE1000 psiStainless SteelStainless SteelRPTFELocking Lever4.45"€207.71
GRAINGER 1PYV5 Ball Valve, 1 1/2 Inch Pipe, 1 1/2 Inch Tube, 600 PSI | CQ2LJZ 107-827-CLFNPT x FNPTPTFE600 psi-BrassPTFELocking Lever7.58"€106.04
GRAINGER SSV-150NLH Ball Valve, 1 1/2 Inch Pipe, 1, 500 PSI CWP, 0-400 Deg F, Lever Handle | CQ2LKB 20K951 SSV-150NLHFNPT x FNPTPTFE1500 psiStainless SteelStainless SteelPTFELever7.19"€331.21
GRAINGER G-F600-150 Ball Valve, 1 1/2 Inch Pipe, 600 PSI CWP, 0-350 Deg F, Lever Handle, Brass | CQ2LKD 20K914 G-F600-150FNPT x FNPTPTFE600 psiBrassBrassPTFELever8.23"€120.65
GRAINGER G-F600-150LH Ball Valve, 1 1/2 Inch Pipe, 600 PSI CWP, 0-350 Deg F, Locking Lever Handle | CQ2LKE 20K886 G-F600-150LHFNPT x FNPTPTFE600 psiBrassBrassPTFELocking Lever4 4/25"€108.08
GRAINGER 06Q031B04114 Ball Valve, 1 1/4 Inch Pipe, 1 1/4 Inch Tube, 1000 PSI, 32-320 Deg F, Weld | CQ2LKF 796AA9 06Q031B04114Butt Weld x Butt WeldPCTFE, PTFE, RPTFE1000 psiStainless SteelStainless SteelRPTFELocking Lever3.82"€148.49

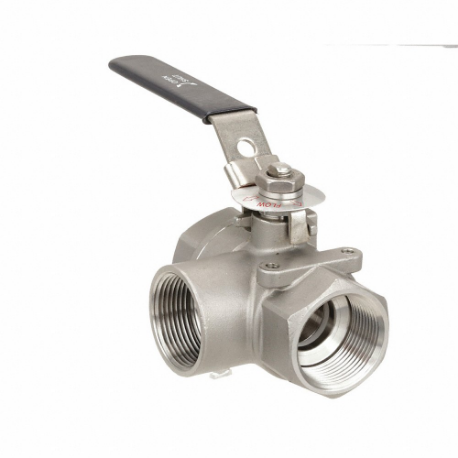

GRAINGER G-SSTW-125 Ball Valve, 1 1/4 Inch Pipe, 1000 PSI CWP, -20-450 Deg F | CQ2LKG 32H991 G-SSTW-125FNPT x FNPT x FNPTRPTFE1000 psiStainless SteelStainless SteelRPTFELocking Lever-€343.03
