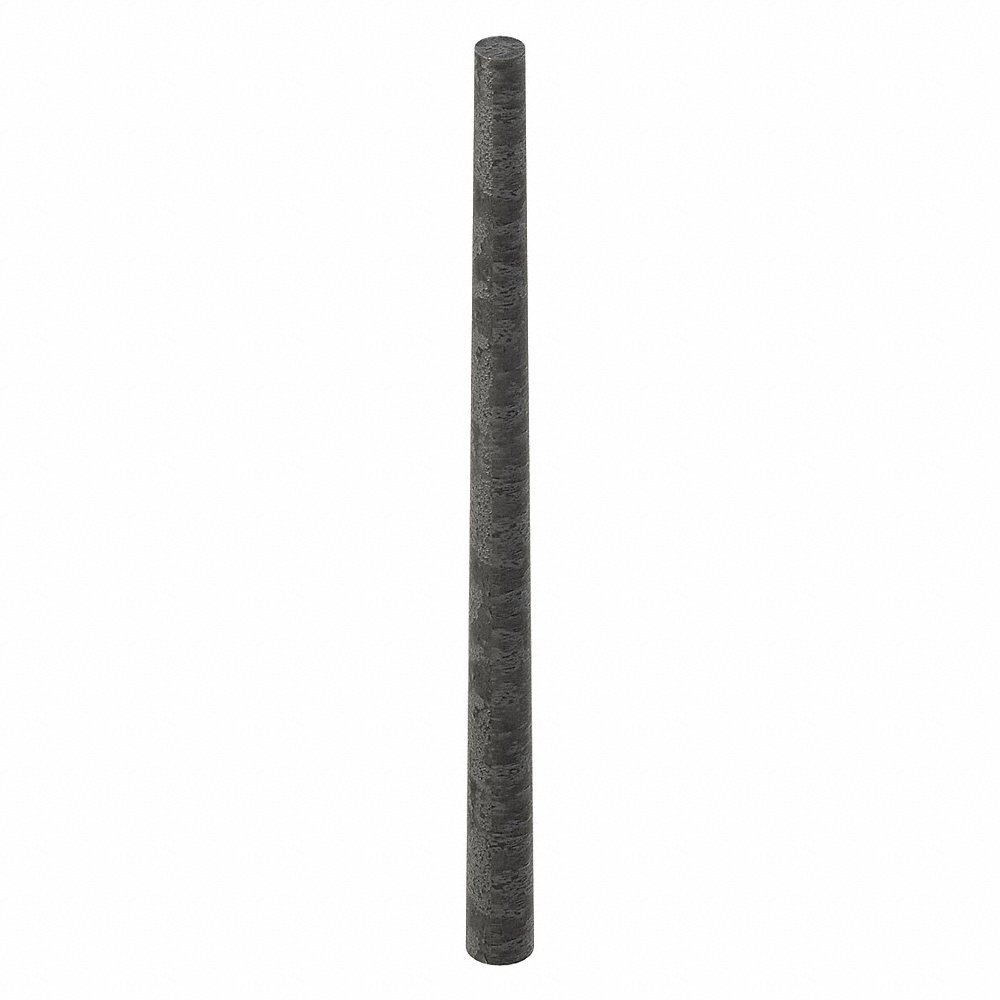

FABORY U39000.409.0600 Taper Pin, Std, 7 Small End Dia., 6 In Lg., 0.408 In Large End Dia., 7 Pin Size, Not Gr.
Item: CG8NXKModel: U39000.409.0600Cross Ref: 41LL60
7 In Stock
6"
0.408"
Ships within 2 days via
5.00% off
€30.43 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Pin |
| Finish | Plain |
| Grade | Non Graded |
| Large End Dia. | 0.408" , 0.41" |
| Length | 6" |
| Material | Steel |
| Material Grade/class | Ungraded |
| Pin Size | 7 |
| Pin Type | Standard |
| Product Type | Taper Pin |
| Shank Length | 6" |
| Small End Dia. | #7 , 0.284" |
| Standard | ASME B18.8.2 |
| System Of Measurement | Imperial |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Small End Dia. | Large End Dia. | Pin Size | Shank Length | Overall Length Tolerance | Small End Dia. Tolerance | Usable Length Tolerance | Usable Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TAP1003032-050P1 | 3 mm | 3.6 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 50 | €30.89 | |
| TAP1003045-050P1 | 3 mm | 3.9 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 50 | €32.60 | |
| TAP1003050-025P1 | 3 mm | 4 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 25 | €24.08 | |
| TAP1004012-050P1 | 4 mm | 4.2 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 50 | €25.25 | |
| TAP1004026-050P1 | 4 mm | 4.5 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 50 | €33.07 | |
| TAP1004045-050P1 | 4 mm | 4.9 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 50 | €37.71 | |
| TAP1005026-050P1 | 5 mm | 5.5 mm | Metric | - | -0.5 mm to +0.5 mm | -0.048 mm | -0.5 mm to +0.5 mm | - | 50 | €36.12 |
