Free Cutting Steel Standard Taper Pins
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R| Style | Model | Small End Dia. | Large End Dia. | Pin Size | Shank Length | Overall Length Tolerance | Small End Dia. Tolerance | Usable Length Tolerance | Usable Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U39000.156.0125 | #0 | 0.155" | 0 | - | - | - | - | - | 25 | €19.07 | |
| B | U39000.156.0200 | #0 | 0.155" | 0 | 2" | - | - | - | - | 25 | €26.10 | |
| C | U39000.156.0100 | #0 | 0.155" | 0 | 1" | - | - | - | - | 25 | €8.91 | |
| D | U39000.193.0087 | #2 | 0.192" | 2 | 7/8" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €47.68 | |
| E | U39000.193.0075 | #2 | 0.192" | 2 | - | - | - | - | - | 25 | €30.04 | |
| F | U39000.193.0150 | #2 | 0.192" | 2 | 1 1/2" | - | - | - | - | 25 | €12.51 | |

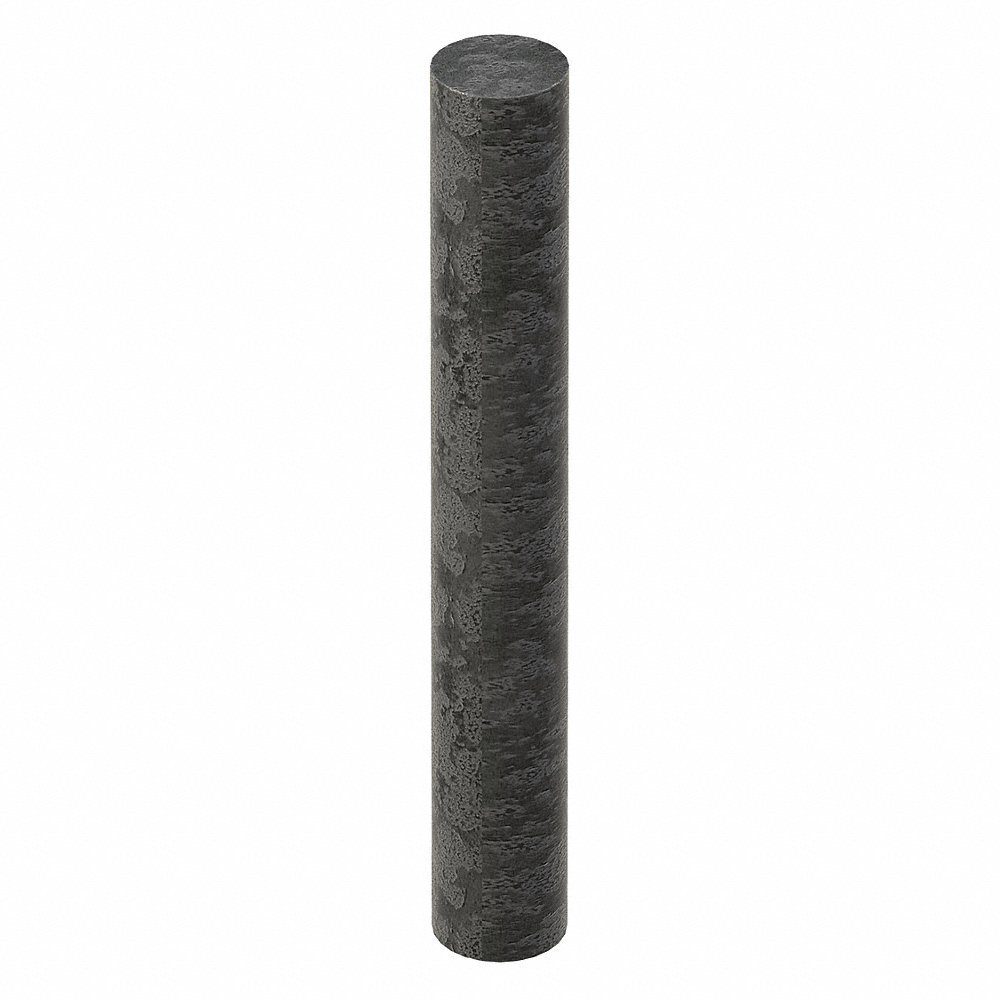

| G | U39000.142.0100 | #2/0 | 0.14" | 2/0 AWG | - | - | - | - | - | 50 | €15.68 | |
| D | U39000.219.0125 | #3 | 0.218" | 3 | - | - | - | - | - | 25 | €14.41 | |
| D | U39000.219.0275 | #3 | 0.218" | 3 | 2 3/4" | - | - | - | - | 25 | €70.70 | |
| D | U39000.289.0325 | #5 | 0.288" | 5 | 3 1/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €22.24 | |
| D | U39000.289.0125 | #5 | 0.288" | 5 | - | - | - | - | - | 10 | €23.92 | |
| H | U39000.341.0250 | #6 | 0.343" | 6 | 2 1/2" | - | - | - | - | 10 | €18.78 | |
| I | U39000.341.0275 | #6 | 0.342" | 6 | - | - | - | - | - | 10 | €42.08 | |
| J | U39000.341.0500 | #6 | 0.343" | 6 | 5" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €45.58 | |
| K | U39000.341.0400 | #6 | 0.343" | 6 | 4" | - | - | - | - | 5 | €15.64 | |
| L | U39000.341.0100 | #6 | 0.343" | 6 | 1" | - | - | - | - | 10 | €22.41 | |
| D | U39000.341.0125 | #6 | 0.343" | 6 | 1 1/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 10 | €30.36 | |
| D | U39000.341.0150 | #6 | 0.343" | 6 | 1 1/2" | - | - | - | - | 10 | €35.12 | |
| D | U39000.341.0225 | #6 | 0.343" | 6 | 2 1/4" | - | - | - | - | 10 | €36.42 | |
| M | U39000.341.0350 | #6 | 0.343" | 6 | 3 1/2" | - | - | - | - | 5 | €31.67 | |
| N | U39000.341.0300 | #6 | 0.343" | 6 | 3" | - | - | - | - | 10 | €21.67 | |
| D | U39000.341.0325 | #6 | 0.343" | 6 | 3 1/4" | - | - | - | - | 5 | €23.92 | |
| D | U39000.341.0450 | #6 | 0.343" | 6 | 4 1/2" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €40.10 | |
| D | U39000.341.0175 | #6 | 0.343" | 6 | 1 3/4" | - | - | - | - | 10 | €11.64 | |
| D | U39000.341.0600 | #6 | 0.343" | 6 | 6" | - | - | - | - | 5 | €25.04 | |
| D | U39000.341.0200 | #6 | 0.343" | 6 | 2" | - | - | - | - | 10 | €34.09 | |
| D | U39000.409.0225 | #7 | 0.408" | 7 | - | - | - | - | - | 5 | €25.87 | |
| O | U39000.409.0375 | #7 | 0.408" | 7 | - | - | - | - | - | 5 | €67.52 | |
| D | U39000.409.0175 | #7 | 0.408" | 7 | - | - | - | - | - | 5 | €28.08 | |
| D | U39000.492.0375 | #8 | 0.491" | 8 | - | - | - | - | - | 5 | €73.36 | |
| D | U39000.492.0225 | #8 | 0.491" | 8 | - | - | - | - | - | 5 | €39.41 | |
| D | U39000.492.0325 | #8 | 0.491" | 8 | 3 1/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €62.08 | |
| D | U39000.591.0175 | #9 | 0.59" | 9 | 1 3/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €46.44 | |
| D | U39000.591.0200 | #9 | 0.59" | 9 | - | - | - | - | - | 5 | €49.69 | |
| D | U39000.591.0225 | #9 | 0.59" | 9 | 2 1/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €65.61 | |
| D | U39000.591.0275 | #9 | 0.59" | 9 | 2 3/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €66.80 | |
| D | U39000.591.0375 | #9 | 0.59" | 9 | 3 3/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 1 | €18.09 | |
| D | U39000.591.0325 | #9 | 0.59" | 9 | 3 1/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 1 | €21.74 | |
| P | U39000.706.0600 | #10 | 0.705" | 10 | 6" | - | - | - | - | 1 | €29.24 | |
| Q | U39000.706.0550 | #10 | 0.705" | 10 | 5 1/2" | - | - | - | - | 1 | €26.66 | |
| D | U39000.706.0375 | #10 | 0.705" | 10 | 3 3/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 1 | €23.17 | |
| D | U39000.706.0325 | #10 | 0.705" | 10 | 3 1/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 1 | €20.14 | |
| D | U39000.706.0275 | #10 | 0.705" | 10 | 2 3/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 1 | €18.28 | |
| D | U39000.156.0400 | 0.073" | 0.155" | 0 | 4" | - | - | - | - | 25 | €51.07 | |
| D | U39000.172.0400 | 0.089" | 0.171" | 1 | 4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €110.89 | |
| D | U39000.156.0300 | 0.094" | 0.155" | 0 | 3" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €63.49 | |
| D | U39000.193.0400 | 0.11" | 0.192" | 2 | 4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €113.32 | |
| D | U39000.172.0300 | 0.11" | 0.171" | 1 | 3" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €87.19 | |
| D | U39000.172.0200 | 0.13" | 0.171" | 1 | 2" | - | - | - | - | 25 | €14.13 | |
| R | U39000.156.0075 | 0.14" | 0.155" | 0 | 3/4" | - | - | - | - | 25 | €6.69 | |
| D | U39000.492.0300 | 0.43" | 0.491" | 8 | 3" | - | - | - | - | 5 | €19.20 | |
| D | U39000.492.0200 | 0.45" | 0.491" | 8 | 2" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 5 | €38.02 | |
| D | U39000.126.0100 | 0.104" | 0.124" | 3/0 AWG | 1" | - | - | - | - | 50 | €13.08 | |
| D | U39000.142.0125 | 0.115" | 0.14" | 2/0 AWG | 1 1/4" | - | - | - | - | 50 | €40.29 | |
| D | U39000.142.0087 | 0.123" | 0.14" | 2/0 AWG | 7/8" | - | - | - | - | 50 | €35.08 | |
| D | U39000.142.0050 | 0.131" | 0.14" | 2/0 AWG | 1/2" | - | - | - | - | 50 | €28.27 | |
| D | U39000.193.0300 | 0.131" | 0.192" | 2 | 3" | - | - | - | - | 25 | €33.29 | |
| D | U39000.219.0400 | 0.136" | 0.218" | 3 | 4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €150.04 | |
| D | U39000.172.0175 | 0.136" | 0.171" | 1 | 1 3/4" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €52.17 | |
| D | U39000.156.0087 | 0.138" | 0.155" | 0 | 7/8" | - | - | - | - | 25 | €7.29 | |
| D | U39000.193.0250 | 0.141" | 0.192" | 2 | 2 1/2" | -0.02" to +0.01" | -0.02" to +0.01" | - | - | 25 | €76.17 |
Free Cutting Steel Standard Taper Pins
Taper pins ensure precise alignment and secure connections and are ideal for use in the automotive and aerospace industries. They are available as both Metric (SI units) and Imperial system (inches, feet & pounds) compliant units. These fasteners feature free cutting steel construction to enhance machinability, allowing for faster and more efficient manufacturing processes. They have plain finish to ensure compatibility with various materials, providing corrosion resistance at an affordable price.
