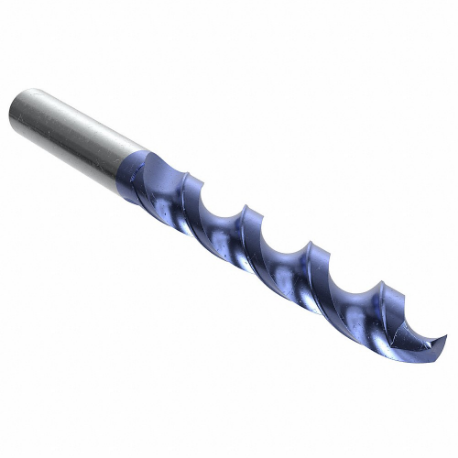

WALTER TOOLS A1254TFT-9.4 5061039 Taper Length Drill Bit, 9.40 mm Drill Bit Size, 9.40 mm Shank Dia
Item: CU9CTCModel: A1254TFT-9.4Cross Ref: 442U42 / 5061039
7 In Stock
Ships within 2 days via
5.00% off
€112.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Edge Dia. | 0.37" |
| Cutting Edge Length | 2.598" |
| Decimal Equivalent | 0.3701 |
| Depth X Dia. Ratio | 8xd |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 9.4 mm |
| Drill Dia. Tolerance | H8 |
| Drill Length Class | Taper Length |
| Drill Point Length | 2.82 mm |
| Finish | TiNAl |
| Finish-machining | Tinal |
| Flute Length | 3 3/16" |
| Flute Type | Spiral |
| Grade | Grade M42 |
| Length | 4.921" |
| Material | High Speed Steel |
| Material Grade-machining | Grade M42 |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 3.189" |
| No. Of Flutes | 2 |
| Overall Length | 125 mm |
| Point Angle | 118° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel |
| Primary Material Application Iso Code | M, N |
| Secondary Material Application | Composite, Nickel, Steel, Titanium |
| Secondary Material Application Iso Code | O, P, S |
| Shank Dia. | 9.4 mm |
| Shank Length | 44 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Size | 9.4 mm |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Product | Model | Flute Length | Shank Dia. | Shank Length | Max. Drilling Depth | Drill Dia. Tolerance | Drill Bit Size | Material-machining | Finish-machining | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DC170-08-12.700A1-WJ30EJ | 5 15/64" | 14 mm | 1 49/64" | 4.685" | M7 | 1/2" | Carbide | Tialn+Alcrn | €1,019.27 | |
 |
DC150-08-12.700A1-WJ30TA | 5 15/64" | 14 mm | 1 49/64" | 4.685" | M7 | 1/2" | Carbide | TiAlN | €673.16 | |
|
DC170-08-06.350A1-WJ30EJ | 2 19/32" | 8 mm | 1 13/32" | 2.165" | M7 | 1/4" | Carbide | Tialn+Alcrn | €504.04 | |
|
DC150-08-06.350A1-WJ30TA | 2 19/32" | 8 mm | 1 13/32" | 2.165" | M7 | 1/4" | Carbide | TiAlN | €295.51 | |
|
DC150-08-03.175A1-WJ30TA | 1 21/64" | 6 mm | 1 13/32" | 1.102" | M7 | 1/8" | Carbide | TiAlN | €248.09 | |
|
DC170-08-03.175A1-WJ30EJ | 1 21/64" | 6 mm | 1 13/32" | 1.102" | M7 | 1/8" | Carbide | Tialn+Alcrn | €420.03 | |
 |
A1254TFT-10 | 3 27/64" | 10 mm | 46 mm | 3.425" | H8 | 10 mm | High Speed Steel | Tinal | €127.62 |
