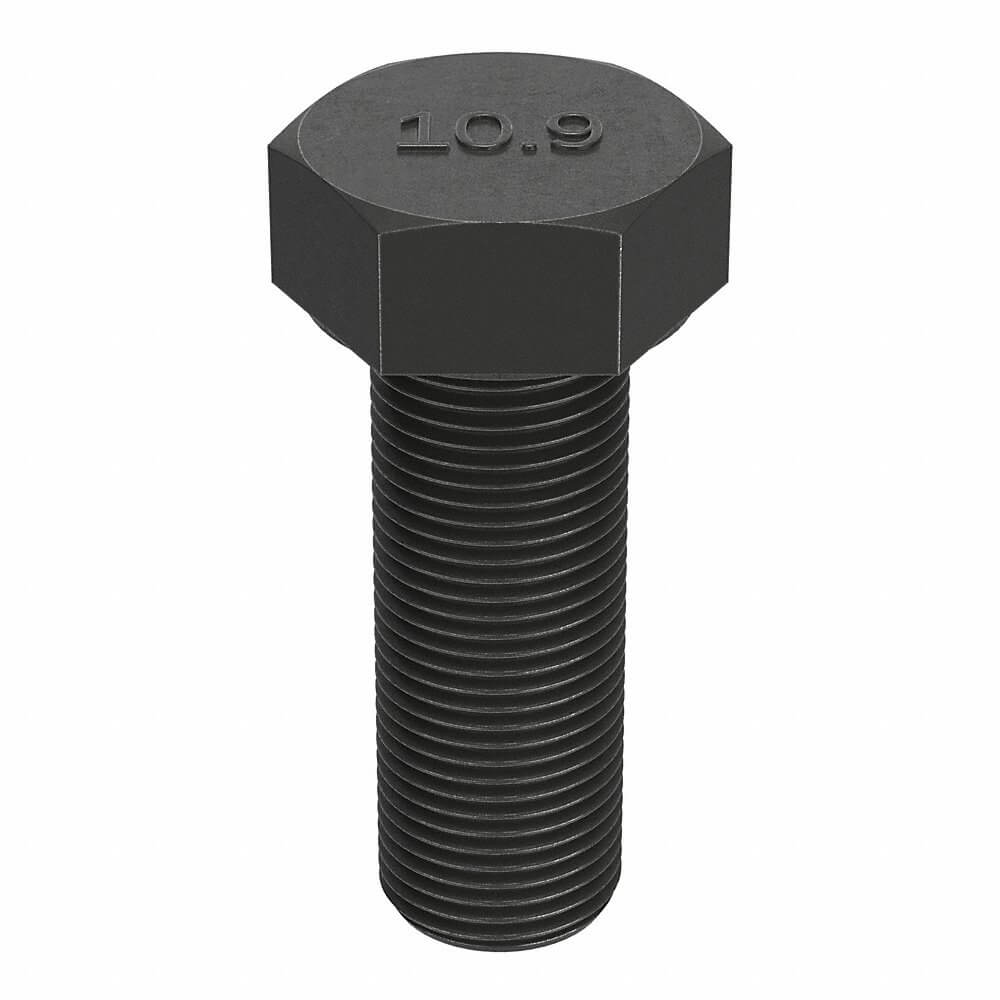

FABORY M04171.200.0045 Hex Head Cap Screw, M20x1.5 Thread Size, Steel, 45 mm Lg., 12.5 mm Head Ht., Fine
Item: CG8DMFModel: M04171.200.0045Cross Ref: 38CV24
7 In Stock
Ships within 2 days via
5.00% off
€56.56 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Drive | Hex |
| Fastener Length | 45 mm |
| Finish | Black Oxide |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 12.5 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 30 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 45 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 45 mm |
| Overall Length | 45 mm |
| Rockwell Hardness | Hrc32 |
| Standard | DIN 961 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 45 mm |
| Thread Size | M20 x 1.5 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 1.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M04161.200.0070 | Partially Threaded | 46 mm | 70 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €80.06 | |
| M04161.200.0080 | Partially Threaded | 46 mm | 80 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €97.65 | |
| M04161.200.0090 | Partially Threaded | 46 mm | 90 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €98.54 | |
| M04161.200.0100 | Partially Threaded | 46 mm | 100 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €154.71 | |
| M04161.200.0110 | Partially Threaded | 46 mm | 110 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €131.54 | |
| M04161.200.0120 | Partially Threaded | 46 mm | 120 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €136.00 | |
| M04161.200.0130 | Partially Threaded | 52 mm | 130 mm | 52 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €183.52 |
