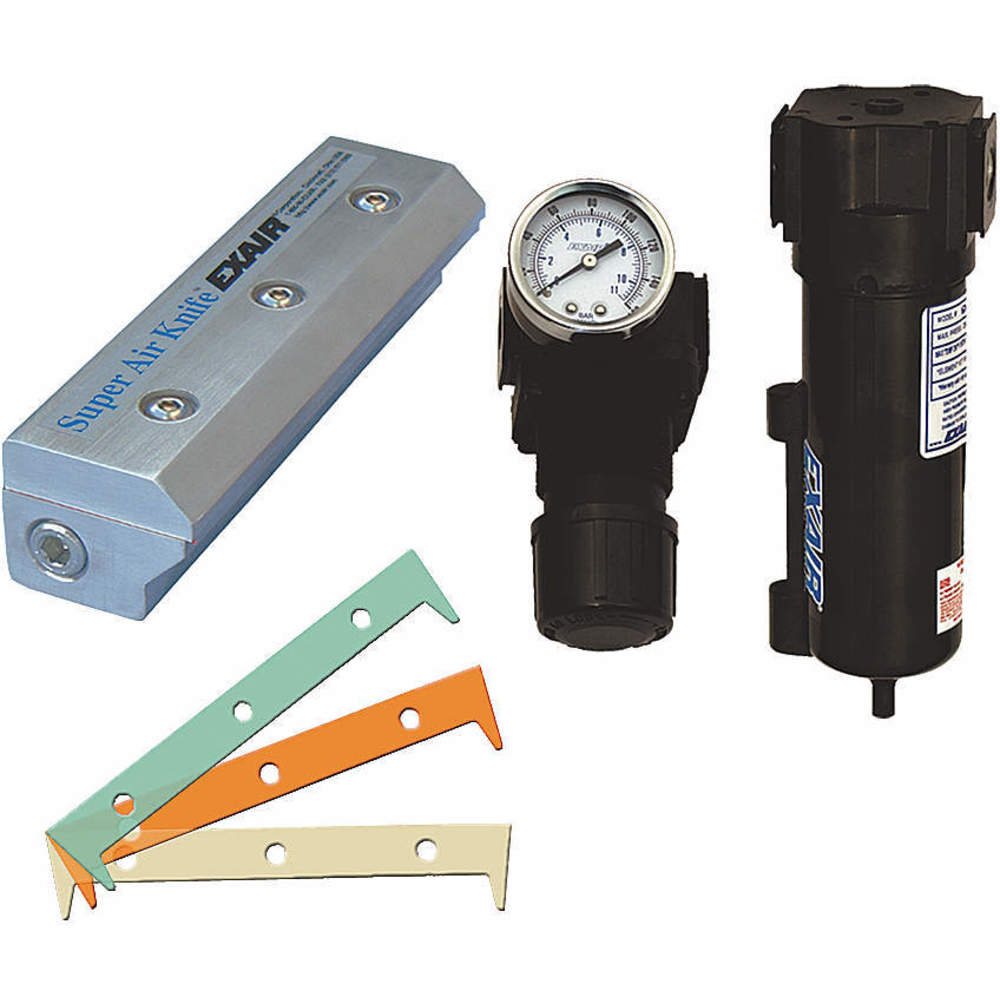

EXAIR 110236 Air Knife Kit 1/4 Inch Npt 36 Inch Length Aluminium
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,414.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Knife Kit |
| (f)npt Inlet | 1/4" |
| Air Consumption | 104.4 SCFM |
| Air Consumption Per Inch | 104.4 SCFM |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Slot Gap (in.) | 0.002" |
| Air Slot Gap (in.) | 0.002 |
| Air Slot Gap Size | 0.002" |
| Air Slot Height | 0.002" |
| Air Slot Width | 36" |
| Air Slot Width (in.) | 36 |
| Body Material | Aluminum |
| Category Type | Air Knives |
| Db @ 80 Psi | 64 dB |
| Flow Pattern Height At 12 Inches | 5" |
| Flow Pattern Height At 18 Inches | 7" |
| Flow Pattern Height At 3 Inches | 2" |
| Flow Pattern Height At 6 Inches | 3" |
| Fluid Type | Compressed Air |
| Fnpt Inlet Size | 1/4" |
| For Fluid Type | Compressed Air |
| Includes | Filter, Pressure Regulator And Filter/Regulator Mounting Hardware, Shim Set |
| Includes Filter Separator | Filter Separator Included |
| Includes Pressure Regulator | Pressure Regulator Included |
| Includes Shims | Shim Set Included |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | Female |
| Material | Aluminum |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 180°F |
| Max. Temp. | 180°F |
| Maximum Sound Level | 72 dBA |
| Min. Operating Pressure | 80 psi |
| Minimum Operating Pressure | 10 psi |
| Mounting Hole Dia. | 1/4" |
| Mounting Stud Thread Size | 1/4"-20 |
| Mounting Thread Size | 1/4"-20 |
| Number Of Air Inlets | 4 |
| Number Of Inlets | 4 |
| Operating Pressure | 80 psi to 250 psi |
| Overall Depth | 1 3/4" |
| Overall Height | 1 1/2" |
| Overall Length | 36" |
| Overall Thickness | 1 11/25" |
| Overall Width | 36" |
| Product Type | Air Knife Kit |
| System Of Measurement | Inch |
| Type | Air Knife Kit |
Shipping Info:
| Ship weight (kg) | 7.37 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 99.82 |
| Ship width (cm) | 21.59 |
| HS code | 8479899899 |
| Country of Origin | US |
Product Variants
| Model | Material | Air Slot Width | Air Consumption | Max. Temp. | Overall Depth | Overall Thickness | Overall Width | Air Slot Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 110203 | Aluminum | 3" | 8.7 SCFM | 180°F | 1 3/4" | 1 11/25" | 3" | 0.002" | €691.52 | |

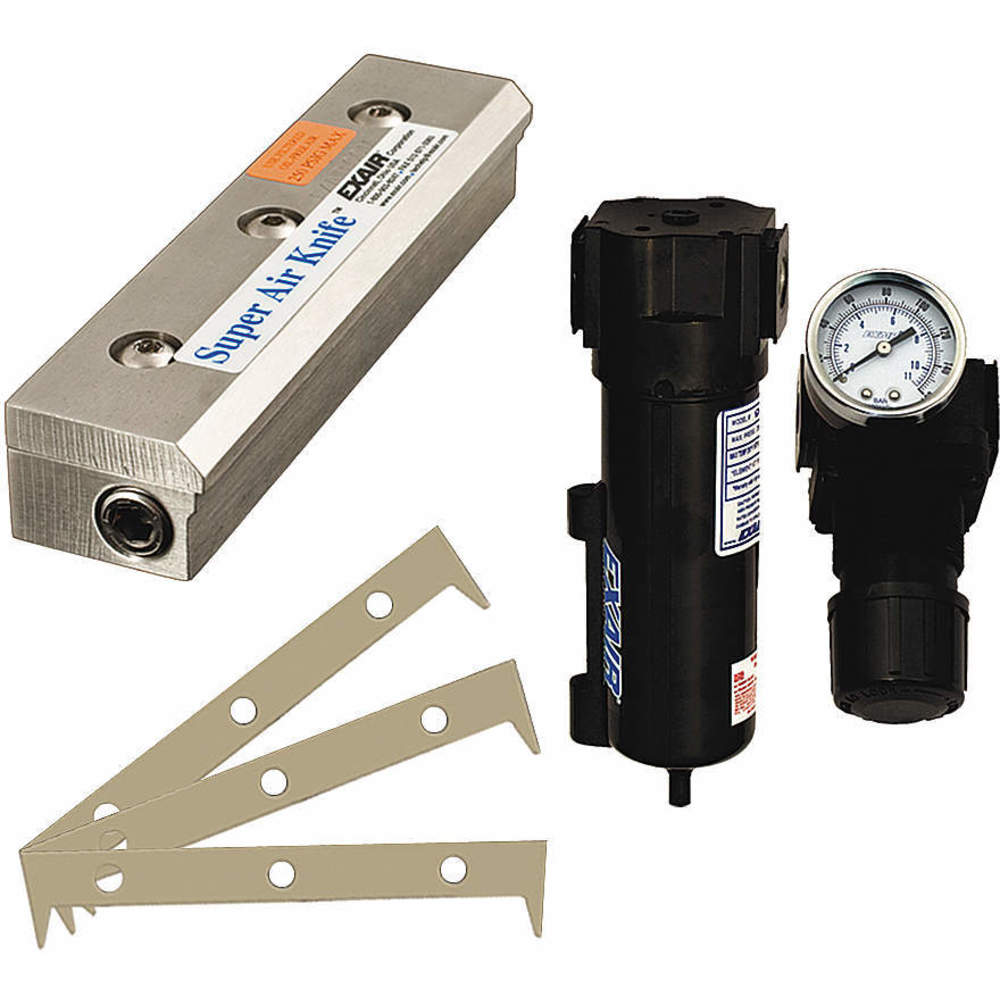

| 110203SS | Stainless Steel | 3" | 8.7 SCFM | 800°F | 1 1/2" | 1.03" | 3" | 0.002" | €942.05 | |
| 110206 | Aluminum | 6" | 17.4 SCFM | 180°F | 1 3/4" | 1 11/25" | 6" | 0.002" | €739.13 | |
| 110206SS | Stainless Steel | 6" | 17.4 SCFM | 800°F | 1 1/2" | 1.03" | 6" | 0.002" | €1,076.40 | |
| 110209 | Aluminum | 9" | 26.1 SCFM | 180°F | 1 3/4" | 1 11/25" | 9" | 0.002" | €832.63 | |
| 110209SS | Stainless Steel | 9" | 26.1 SCFM | 800°F | 1 1/2" | 1.03" | 9" | 0.002" | €1,293.77 | |
| 110212 | Aluminum | 12" | 34.8 SCFM | 180°F | 1 3/4" | 1 11/25" | 12" | 0.002" | €867.32 |
