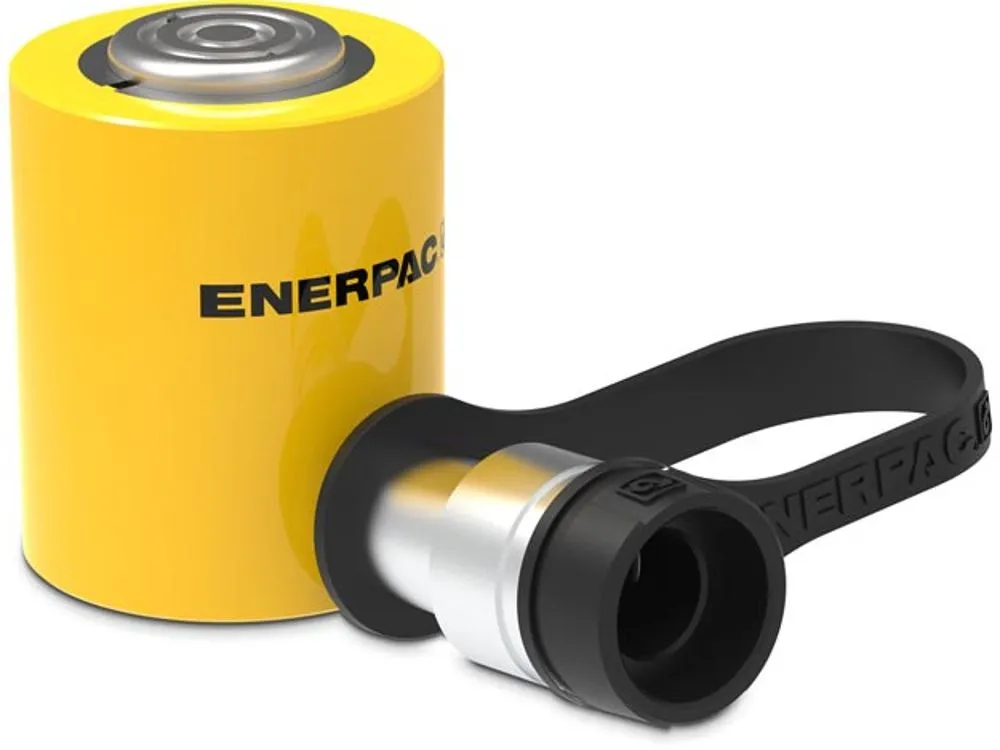

ENERPAC RCS-101 Flat Jac Single Acting Hydraulic Cylinder, 1.5 Inch Stroke
Ships within 2 days via
Payment
Product Specifications:
| Item | Hydraulic Cylinder |
| Base Bolt Circle Dia. | 1.03" |
| Base Mounting Holes Bolt Circle | 1.03" |
| Base To Advance Port | 0.69" |
| Bearing Type | Ball |
| Body Material | Steel |
| Bolt Circle Dia. | 1.03" |
| Center Hole Diameter | 1 1/2" |
| Collapsed Height | 3.47" |
| Cylinder Bore | 1.69" |
| Cylinder Type | General Purpose |
| Duty | Standard |
| Effective Push Area | 2.24 sq. in. |
| Extended Height | 4.97" |
| Finish | Paint |
| Gear Material | Steel |
| Gear Type | Worm |
| Handle | No |
| Includes | Dust Cap, Female Coupler |
| Input Rpm | 1750 RPM |
| Material | Steel |
| Max. Input Hp | 1/2 hp |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 10 ton. |
| Nominal Capacity | 10 ton. |
| Nominal Output Rpm | 35 RPM |
| Nominal Stroke Length | 7/8" |
| Number Of Stages | 1 |
| Oil Capacity | 3.35 cu. in. |
| Oil Capacity Push | 3.35 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.79" |
| Output Shaft Dia. | 1" |
| Outside Dia. | 2 3/4" |
| Overhung Load | 875 lbs. |
| Pinion Material | Hardened Steel |
| Plunger Dia. | 1.5" |
| Plunger Dia. | 1 1/2" |
| Plunger Thread Length | 8/25" |
| Plunger Thread Size | M4 |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 3.47" |
| Rotation | Forward, Reversible |
| Saddle Diameter | 1.38" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 1/5" |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Single Acting/double Acting | Single Acting |
| Single/double Output | Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | Indirect Drive |
| Stroke Length | 1 1/2" |
| Weighing Capacity | 10 ton. |
| Worm Gear Material | Bronze |
Shipping Info:
| Ship weight (kg) | 2.59 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 6.99 |
| HS code | 8431100090 |
| Country of Origin | CN |
Product Details:
Enerpac RCS101 Flat-Jac hydraulic cylinder is designed to operate in confined spaces with limited vertical clearance. This low height cylinder is well-suited for various industries such as aerospace, agriculture, oil and gas, mining and food production.
Features:
- It has a grooved plunger end with threaded holes that allow for easy mounting of tilt saddles.
- This cylinder is equipped with a plated steel plunger wiper that reduces contamination to enhance the life of the cylinder.
- It features baked enamel finish for improved corrosion resistance.
- This unit includes the CR400 female coupler, providing a connection to a CH604 male coupler.
- It has a single-acting spring return mechanism for hazard-proof lifting operations.
- This unit has mounting holes that allow for easy fixturing.
- Enerpac RCS302 hydraulic cylinder with 15.82 cubic inch oil capacity is also available.
Frequently Asked Questions:
Q. What is the difference between a single-acting and a double-acting cylinder?
A. A single-acting cylinder has one direction of force, extending or retracting with the help of an external force. In contrast, a double-acting cylinder has two directions of force, allowing for both extension & retraction through the use of internal fluid pressure.
Q. What are the different kinds of Enerpac RCS101 hydraulic cylinders?
A. A Single-acting, double-acting, tandem hydraulic and telescopic / actuating hydraulic cylinders are 4 different types of hydraulic cylinders.
Q. What are the factors to consider while choosing a low-height hydraulic cylinder?
A. Major factors include load capacity, stroke length, operating pressure, mounting options and safety considerations.
Product Variants
| Product | Model | Stroke Length | Retracted Height | Handle | Oil Capacity | Weighing Capacity | Outside Dia. | Cylinder Bore | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RCS-1002 | 2 1/4" | 5.56" | Yes | 44.18 cu. in. | 100 ton. | 6 1/2" | 5" | 2.19" | €3,016.75 | |
 |
RCS-201 | 1 3/4" | 3.88" | No | 7.75 cu. in. | 20 ton. | 3.63" | 2.38" | 1 14/25" | €1,436.02 | |
 |
RCS-302 | 2 3/8" | 4.63" | No | 15.82 cu. in. | 30 ton. | 4" | 2 22/25" | 1 14/25" | €1,835.35 | |
 |
RCS-502 | 2 3/8" | 4.81" | Yes | 22.85 cu. in. | 50 ton. | 4 22/25" | 3 1/2" | 1 14/25" | €1,904.98 |
