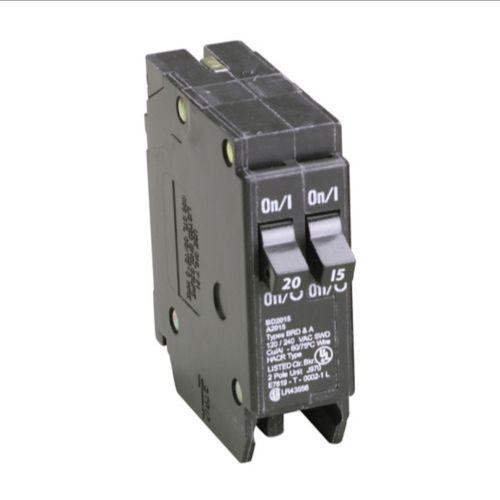

EATON BD2015 Thermal Magnetic Circuit Breaker, Type Bd 1-Inch Ctl Plug-On Circuit Breaker | BJ7QAW

EATON BD2015 Thermal Magnetic Circuit Breaker, Type Bd, 20-15 A, 10 Kaic, 1-Pole, 120V, #14-4 Awg Cu/Al

Item: BJ7QAWModel: BD2015
7 In Stock
20A, 15A

Ships within 2 days via

€35.89
10.00% off
€32.30 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Circuit Breaker
Amperage Rating 15/20A
Circuit Breaker Type BR
Features Includes Rejection Tab Feature
For Use With Type BR Loadcenters
Height 3"
Interrupt Rating 10 kAIC
Length 2"
Main Circuit Breaker BD
Mounting Type Plug-On
Notes All Type BD Duplex And BQ Quadplex Circuit Breakers Carry Listing For HACR Applications. All 15 And 20 Ampere Single Poles Are Switch Duty Rated.
Number Of Poles 1
Type Type BD 1-Inch CTL Plug-on Circuit Breaker
Voltage 120V AC
Width 1"
Wire Size #14 AWG to 4 AWG

Shipping Info:

Ship weight (kg) 0.17
Ship height (cm)7.62
Ship length (cm)5.08
Ship width (cm)2.54
Country of OriginUS

Product Details:

Eaton BD2015 circuit breaker protects electrical circuits & equipment against faulty currents. This thermal-magnetic circuit breaker is used with Eaton BR type load centers. Eaton also offers circuit breaker bell alarmthat can be used to alarm the user against trips.

Features:

  • It features plug-in mounting for easy installation & replacement on distribution board slots.
  • It has a thermal-magnetic trip unit for delivering both time-delayed & instantaneous current limiting protection.
  • It has a built-in rejection tab for blocking the clamping slot on the breaker, ensuring that the circuit breaker fits sections of the buss having notches in it.

Standards and Approvals:

  • UL 489

Frequently Asked Questions:

Q. What wire sizes are compatible with this Eaton BD2015 circuit breaker?

A. This circuit breaker supports 14 - 4 AWG copper or aluminium wiring.

Q. How to install this Eaton BD2015 circuit breaker?

A. This circuit breaker can be easily hung onto the bus on the rear wall of the circuit breaker enclosure.

Product Variants

ProductModelNumber Of PolesAc Voltage RatingVoltageMin. Wire SizeMax. Wire SizePhaseAmpsDc Voltage RatingPrice
EATON BQ215215 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDG BQ2152154-120/240V-----€95.83
EATON BQ215220 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDH BQ2152204-120/240V-----€95.83
EATON BQ215230 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDJ BQ2152304-120/240V-----€95.83
EATON BQ215240 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDK BQ2152404-120/240V-----€95.83
EATON BQ215250 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDL BQ2152504-120/240V-----€95.83
EATON BQ2202115 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDM BQ22021154-120/240V at 20A, 120V at 20A-----€102.67
EATON BQ2202120 Thermal Magnetic Circuit Breaker, Type Bq 1-Inch Ctl Plug-On Circuit Breaker | AG8MDN BQ22021204-120/240V at 20A, 120V at 15A-----€102.67
