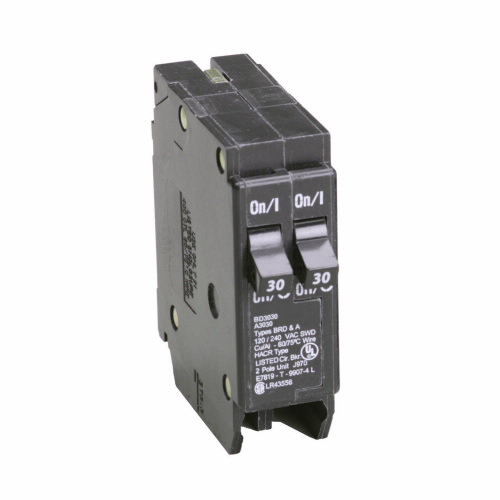

EATON BD3030CS Thermal Magnetic Circuit Breaker, 30-30 A, 10 Kaic, 1-Pole, 120V, #14-4 Awg Cu/Al
30A
Get it by Monday, Aug 17
€223.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amps | 30A |
| Circuit Breaker Type | BR |
| Features | Includes Rejection Tab Feature, Clamshell Pack |
| For Use With | Type BR Loadcenters |
| Height | 3" |
| Interrupt Rating | 10 kAIC |
| Length | 3" |
| Main Circuit Breaker | BD |
| Mounting Type | Plug-On |
| No. Of Poles | 1 |
| Notes | All Type BD Duplex And BQ Quadplex Circuit Breakers Carry Listing For HACR Applications. All 15 And 20 Ampere Single Poles Are Switch Duty Rated. |
| Type | Type BD 1-Inch CTL Plug-on Circuit Breaker Clamshell Pack |
| Voltage | 120V AC |
| Wire Size | #14 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Poles | Voltage | Height | Amps | Interrupt Rating | Wire Size | Main Circuit Breaker | Trip Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BQ215215 | 4 | 120/240V | 3" | 15A | 10 kAIC | #14 AWG to 4 AWG | - | Independent | €93.58 | |
 |
BQ215220 | 4 | 120/240V | 3" | 15/20A | - | #14 AWG to 4 AWG | - | Independent | €93.58 | |
 |
BQ215230 | 4 | 120/240V | 3" | 15/30A | 10 kAIC | #14 AWG to 4 AWG | - | Independent | €93.58 | |
 |
BQ215240 | 4 | 120/240V | - | 15/40A | 10 kAIC | #14 AWG to 4 AWG | - | Independent | €93.58 | |
 |
BQ215250 | 4 | 120/240V | 3" | 15/50A | 10 kAIC | #14 AWG to 4 AWG | - | Independent | €93.58 | |
 |
BQ2202115 | 4 | 120/240V at 20A, 120V at 20A | 3" | 15/20A | 10 kAIC | #14 AWG to 4 AWG | - | Independent | €97.63 | |
 |
BQ2202120 | 4 | 120/240V at 20A, 120V at 15A | 2 1/2" | 20A | 10 kAIC | #14 AWG to 4 AWG | - | Independent | €97.63 |
