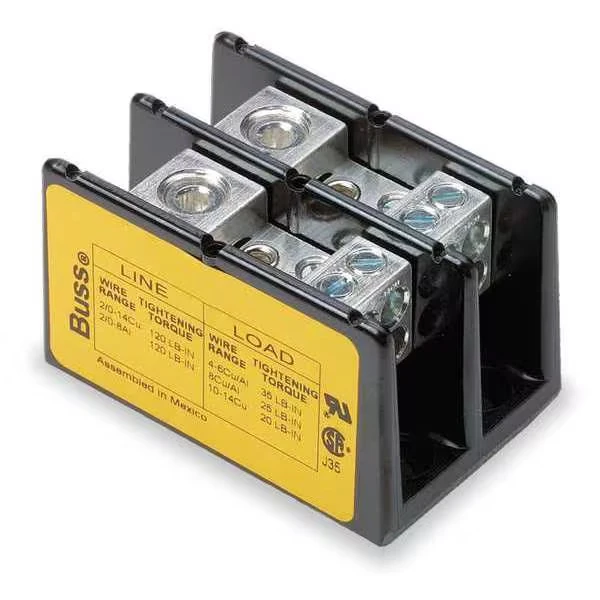

EATON 16220-2 Min Pwr Dist Block, 175A, 2P, 4P Secondary
Request a Quote
Payment
Delivery
Product Specifications:
| Application | Power Distribution |
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 1 3/4" |
| Design | Open |
| For Conductor Material | Aluminum, Copper |
| For Load Aluminum Wire Size-max. | 4 AWG |
| For Max. Load Wire Size | 4 AWG |
| Housing Color | Black |
| Length | 2 22/25" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 4 |
| Load Side Connection Type | Lug |
| Material | Molded Thermoplastic |
| Max. Amps | 175A |
| Max. Amps-copper Conductor | 175A |
| Min. For Line Aluminum Wire Size | 8 AWG |
| Min. For Line Copper Wire Size | 14 AWG |
| Min. For Load Aluminum Wire Size | 8 AWG |
| Min. For Load Copper Wire Size | 14 AWG |
| No. Of Circuits | 2 |
| Overall Depth | 1" |
| Overall Length | 3" |
| Overall Width | 2" |
| Primary Connections/pole | 1 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 4 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 1 22/25" |
Shipping Info:
| Ship length (cm) | 7.32 |
| Ship width (cm) | 4.78 |
