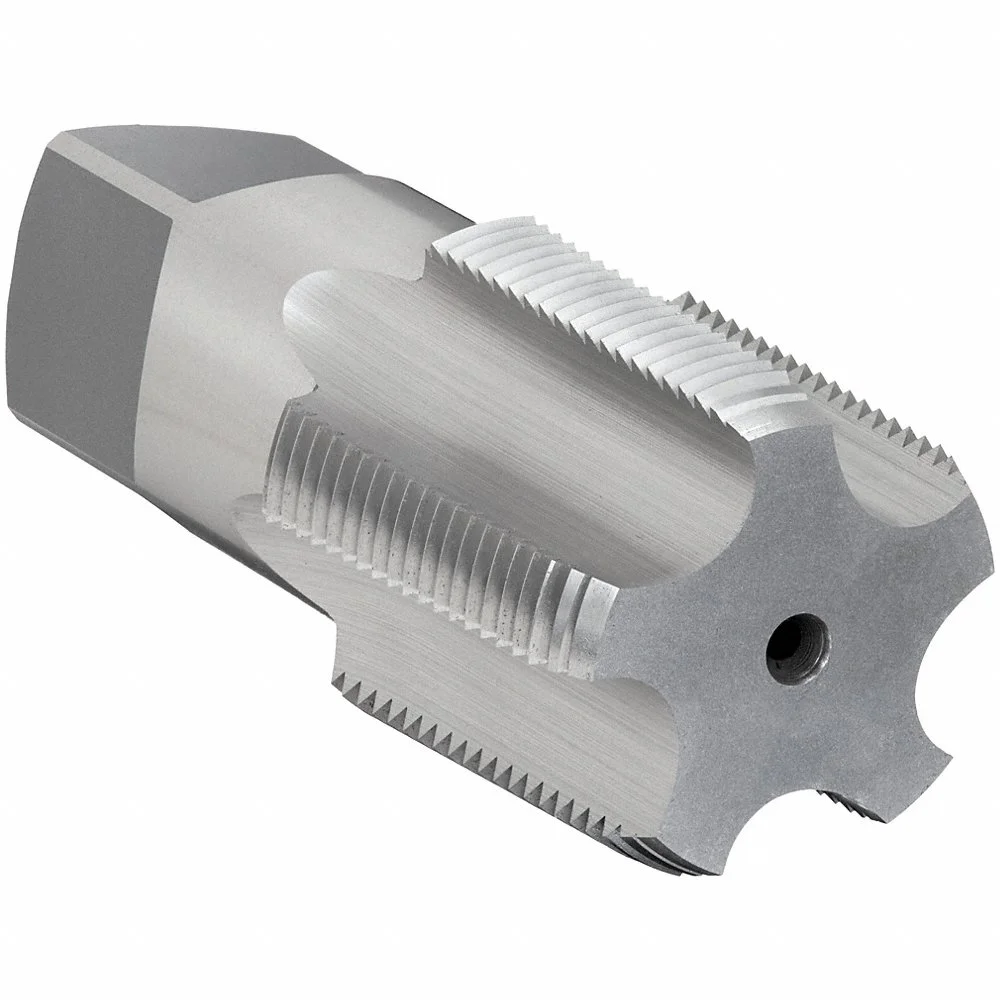

OSG 1310800 Pipe And Conduit Thread Tap, 1-1/4-11 1/2 Thread Size, 1 3/4 Inch Thread Length
Item: CT9PJKModel: 1310800Cross Ref: 2WAF7
7 In Stock
Ships within 2 days via
10.00% off
€423.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 75% Thread Drill Size | 1.4844" |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 1 15/32", 1 31/64" |
| Extended Neck | Yes |
| Helix Angle | 0° |
| Interrupted Thread | No |
| List Number | 108 |
| Material Grade - Machining | Grade 108 |
| No. Of Pieces | 1 |
| Number Of Flutes | 5 |
| Overall Length | 4" |
| Pitch Diameter Limit | Not Rated |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 1 19/64" |
| Shank Length | 2 15/64" |
| Spiral Direction | Neutral |
| Square Size | 0.983" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Modified Bottom, Semi Bottom |
| Tap Finish | Bright Uncoated |
| Tap Grouping | Tap |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Pipe |
| Tap Thread Size | 1 1/4"-11 1/2 |
| Thread Direction | Right Hand |
| Thread Length | 1 3/4" |
| Thread Size | 1 1/4"-11 1/2 |
| Threads Per Inch | 11.5 |
Shipping Info:
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Tap Thread Size | Shank Length | Thread Length | Coolant Fed | 75% Thread Drill Size | Number Of Flutes | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2734200 | 1 1/2" | - | - | - | - | - | - | - | €102.08 | |
|
2734500 | 2" | - | - | - | - | - | - | - | €181.63 | |
|
2734300 | 1 1/2" | - | - | - | - | - | - | - | €130.35 | |
 |
1737501 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €74.94 | |
 |
1310000 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €68.10 | |
 |
1312500 | 2 7/64" | 1/16"-27 | 1 15/64" | 11/16" | Non-Coolant Through | C | 4 | 19/64" | €66.77 | |
 |
1735001 | 2 7/64" | 1/16"-27 | 1 3/16" | 11/16" | Non-Coolant Through | C | 4 | 5/16" | €74.94 |
