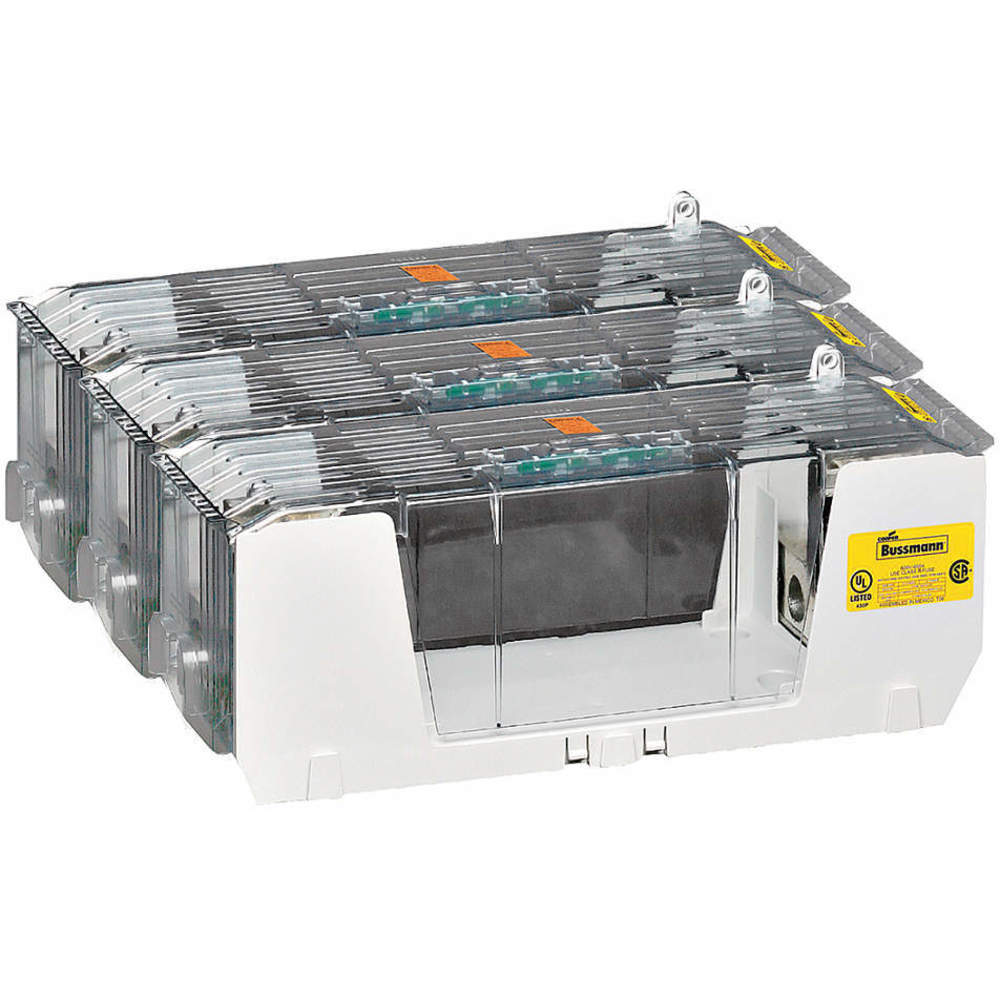

BUSSMANN RM60600-3CR Fuse Block, Fits Industrial Fuse Type, 3 Poles, 401 To 600 Amp, 600 VAC/300 VDC, R Class, 4 AWG to 500 MCM, Box Lug
Get it by Tuesday, Jul 7
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€4,031.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amperage Range | 450 to 600 |
| Amps | 401-600A , 450-600A |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Depth | 6" |
| Fits Fuse Type | Industrial |
| For Fuse Size | 10 3/8" x 2 7/8" |
| Fuse Amps | 401-600A |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Dia. | 3" |
| Fuse Holder Code | U |
| Fuse Length | 13 2/5" |
| Fuse Overall Dia. | 2 7/8" |
| Fuse Overall Length | 15.11" |
| Fuse Ul Class | R |
| Height | 6" |
| Indicating/nonindicating | Non Indicating |
| Length | 15.11" |
| Material | Thermoplastic |
| Max. Amps | 600A |
| Max. Voltage | 600V |
| Mounting Style | Bolt-Down, DIN Rail |
| Mounting Type | Bolt Down, DIN Rail |
| No. Of Poles | 3 |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Width | 14.79" |
| Wire | 4 AWG to 500 mcm |
| Wire Size | 4 AWG to 250 kcmil |
Shipping Info:
| Ship weight (kg) | 5.62 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 37.47 |
| HS code | 8536908085 |
| Country of Origin | MX |
Product Variants
| Product | Model | Fuse Ul Class | Connector Type | Voltage | Fuse Block Design | Amps | Height | Wire Size | Dc Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RM25100-1CR | R | Box Lug | 250V | Barrier | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €179.53 | |
 |
RM25100-2CR | R | Box Lug | 250V | Open | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €318.69 | |
 |
RM25100-3CR | R | Box Lug | 250V | Open | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €244.60 | |
 |
RM25200-1CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €401.11 | |
|
RM25200-2CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €707.09 | |
|
RM25200-3CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €1,147.64 | |
 |
RM25400-1CR | R | Box Lug | 250V | Open | 201-400A | 4 4/5" | 600 kcmil to 4 AWG | 250V DC | €1,193.30 |
