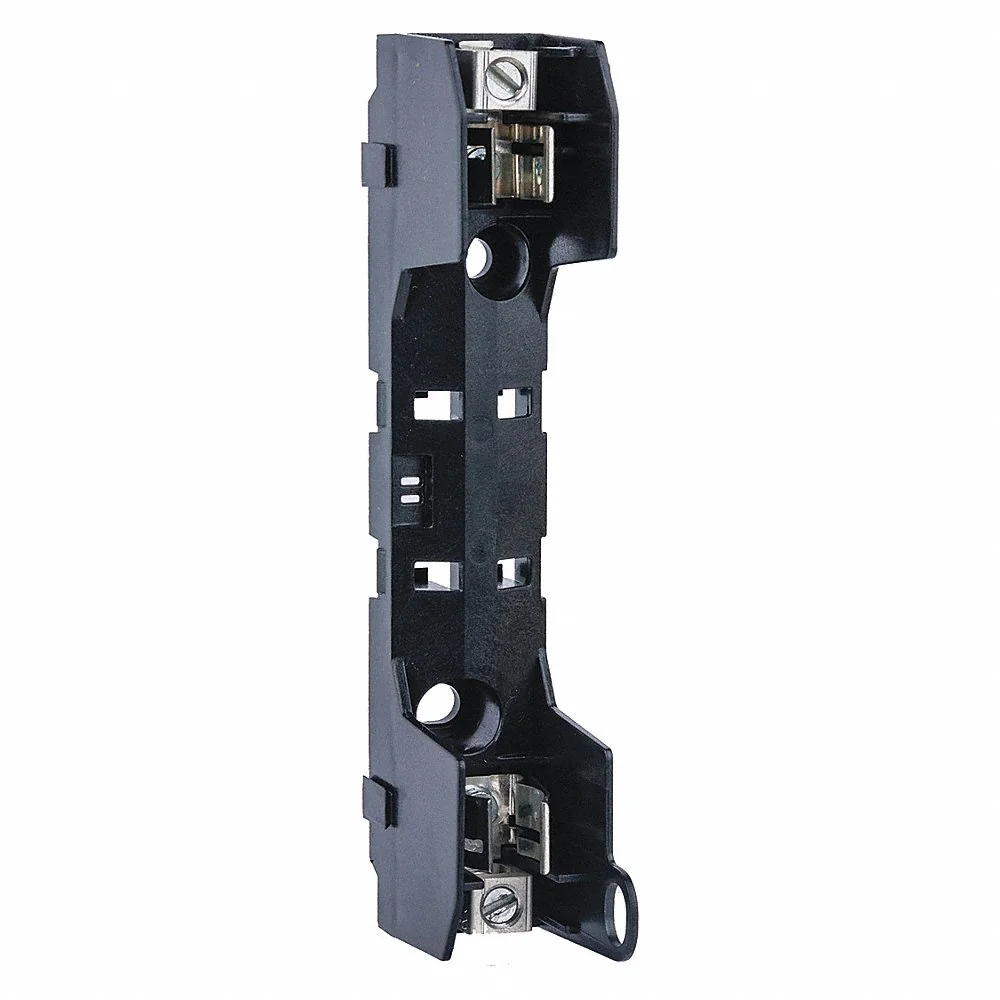

BUSSMANN RM60030-1CR Fuse Block, Fits Industrial Fuse Type, 1 Pole, 0 To 30 Amp, 600 VAC/300 VDC, R Class, 14 to 2 AWG, Box Lug
Item: AH9MWPModel: RM60030-1CRCross Ref: 40LG61
7 In Stock
Ships within 2 days via
5.00% off
€46.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amps | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | RM60030 Series |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5" x 13/16" Dia. |
| For Use | LPS, KTS-R, FRS |
| Fuse Amps | 0-30A |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Overall Dia. | 13/16" |
| Fuse Overall Length | 7" |
| Fuse Ul Class | R |
| Height | 2.3" |
| Housing Material | Thermoplastic |
| Length | 7" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, DIN Rail |
| Mounting Type | Bolt Down, DIN Rail |
| No. Of Poles | 1 |
| Operating Amps | 0-30A |
| Standards | Ce, Csa Certified, Reach, Rohs, Ul Listed |
| Type | Fuse Block |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Width | 1 1/5" |
| Wire | 14 AWG to 2 AWG |
| Wire Size | 2 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 2.86 |
| Country of Origin | MX |
Product Details:
- Fuse Type : Industrial
Product Variants
| Product | Model | Fuse Ul Class | Connector Type | Voltage | Fuse Block Design | Amps | Height | Wire Size | Dc Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RM25100-1CR | R | Box Lug | 250V | Barrier | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €179.53 | |
 |
RM25100-2CR | R | Box Lug | 250V | Open | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €318.69 | |
 |
RM25100-3CR | R | Box Lug | 250V | Open | 70-100A | 2 4/5" | 14 AWG to 1/0 AWG | 250V DC | €244.60 | |
 |
RM25200-1CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €401.11 | |
|
RM25200-2CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €707.09 | |
|
RM25200-3CR | R | Box Lug | 250V | Open | 110-200A | 3 4/5" | 6 AWG to 250 mcm | 250V DC | €1,147.64 | |
 |
RM25400-1CR | R | Box Lug | 250V | Open | 201-400A | 4 4/5" | 600 kcmil to 4 AWG | 250V DC | €1,193.30 |
