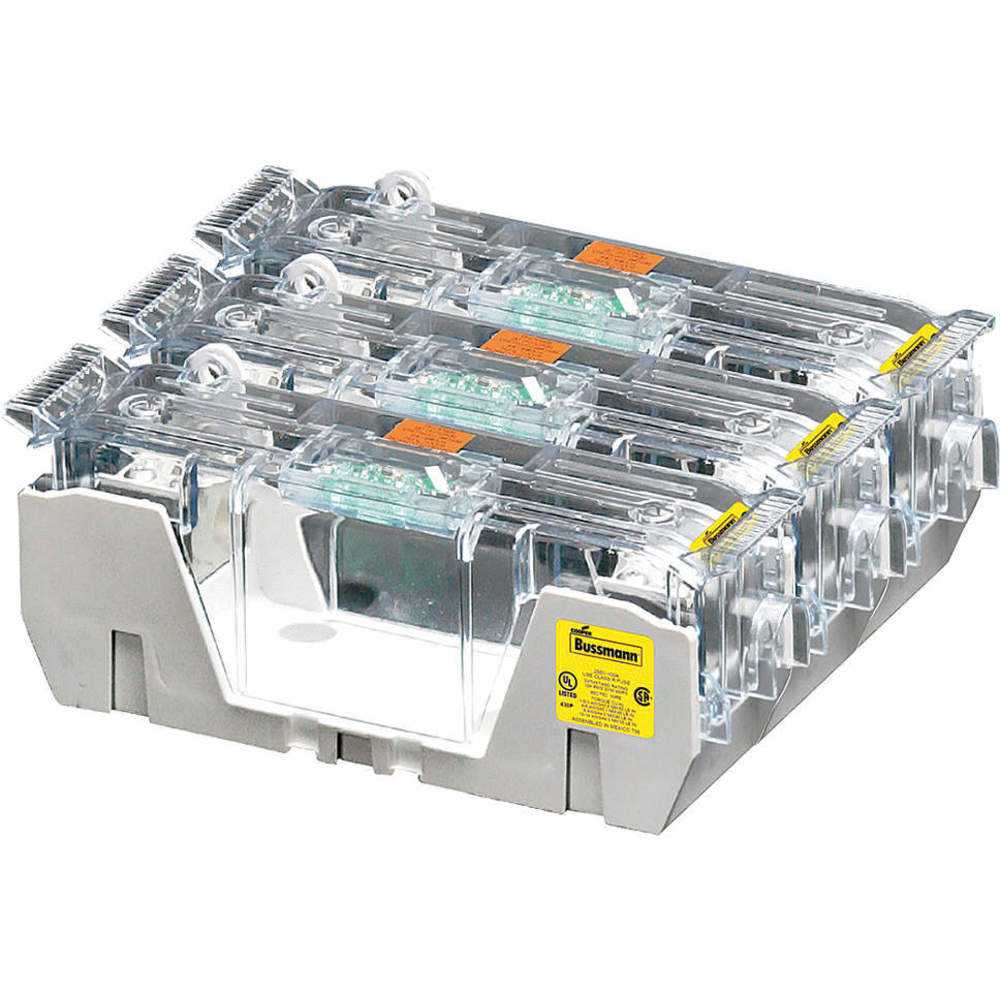

BUSSMANN RM25600-3CR Fuse Block 450 To 600 Amps 250max Volt 3p
Item: AC8FCJModel: RM25600-3CRCross Ref: 39P357
7 In Stock
Ships within 2 days via
10.00% off
€2,328.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 250V AC |
| Amp Range | 401-600A |
| Amperage Range | 450 to 600 |
| Amps | 450-600A |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Dc Voltage | 250V DC |
| Depth | 6" |
| Features | Protection Against Single Phase Motor Damage |
| Fits Fuse Type | Industrial |
| For Fuse Size | 10 3/8" x 2 7/8" |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Current | 401-600A |
| Fuse Dia. | 2 3/5" |
| Fuse Holder Code | BL |
| Fuse Length | 10 2/5" |
| Fuse Overall Diameter | 2 7/8" |
| Fuse Overall Length | 12.11" |
| Fuse Ul Class | R |
| Height | 5.61" |
| Indicating / Nonindicating | Non Indicating |
| Length | 12.11" |
| Material | Thermoplastic |
| Max. Amps | 600A |
| Max. Voltage | 250V |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 3 |
| Visual Indication | Non Indicating |
| Voltage | 250V |
| Voltage Rating | 250V AC/DC |
| Width | 14 4/5" |
| Wire Range | 4 AWG to 500 mcm |
| Wire Size | 4 AWG to 250 kcmil |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 28.58 |
| Ship width (cm) | 37.47 |
| HS code | 8536908085 |
| Country of Origin | MX |
Product Variants
| Product | Model | Fuse Ul Class | Number Of Poles | Connector Type | Amp Range | Voltage Rating | Fuse Block Design | Voltage | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RM25100-1CR | R | 1 | Box Lug | 70-100A | - | Barrier | 250V | 2 4/5" | €210.14 | |
 |
RM25100-2CR | R | 2 | Box Lug | 61-100A | 250V AC/DC | Open | 250V | 2 4/5" | €349.41 | |
 |
RM25100-3CR | R | 3 | Box Lug | 61-100A | 250V AC/DC | Open | 250V | 2 4/5" | €465.23 | |
 |
RM25200-1CR | R | 1 | Box Lug | 101-200A | 250V AC/DC | Open | 250V | 3 4/5" | €497.24 | |
|
RM25200-2CR | R | 2 | Box Lug | 101-200A | 250V AC/DC | Open | 250V | 3 4/5" | €900.99 | |
|
RM25200-3CR | R | 3 | Box Lug | 101-200A | 250V AC/DC | Open | 250V | 3 4/5" | €1,443.46 | |
 |
RM25400-1CR | R | 1 | Box Lug | 201-400A | 250V AC/DC | Open | 250V | 4 4/5" | €1,426.66 |
