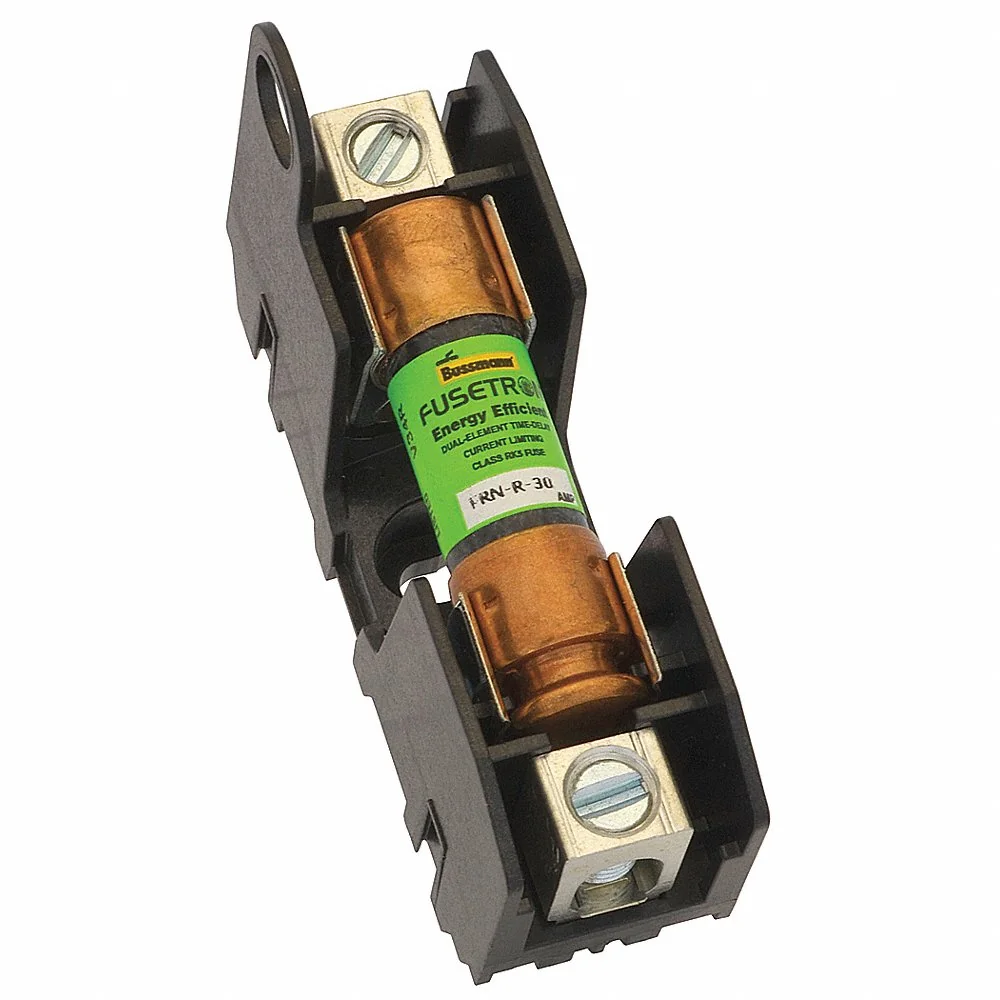

BUSSMANN RM25030-1SR Fuse Block, Fits Industrial Fuse Type, 1 Poles, 0 to 30 A, 250 VAC
Item: CQ8BTYModel: RM25030-1SRCross Ref: 49ZV33
7 In Stock
Ships within 2 days via
10.00% off
€47.49 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | HM25030 Series |
| Connector Type | Screw |
| Diameter | 9/16" |
| Features | Optional Cover And Indication |
| Fits Fuse Type | Industrial |
| For Fuse Size | 2" x 9/16" Dia. |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Current | 0-30A |
| Fuse Overall Diameter | 9/16" |
| Fuse Overall Length | 3 1/5" |
| Fuse Ul Class | R |
| Height | 1 2/5" |
| Housing Material | Thermoplastic |
| Length | 3 1/5" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 1 |
| Standards | Ce, Csa Certified, Ul Listed |
| Visual Indication | Non Indicating |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Width | 1" |
| Wire Range | 18 AWG to 10 AWG |
Shipping Info:
| Ship height (cm) | 3.56 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Fuse Ul Class | Number Of Poles | Connector Type | Amp Range | Voltage Rating | Fuse Block Design | Voltage | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RM25100-1CR | R | 1 | Box Lug | 70-100A | - | Barrier | 250V | 2 4/5" | €210.14 | |
 |
RM25100-2CR | R | 2 | Box Lug | 61-100A | 250V AC/DC | Open | 250V | 2 4/5" | €349.41 | |
 |
RM25100-3CR | R | 3 | Box Lug | 61-100A | 250V AC/DC | Open | 250V | 2 4/5" | €465.23 | |
 |
RM25200-1CR | R | 1 | Box Lug | 101-200A | 250V AC/DC | Open | 250V | 3 4/5" | €497.24 | |
|
RM25200-2CR | R | 2 | Box Lug | 101-200A | 250V AC/DC | Open | 250V | 3 4/5" | €900.99 | |
|
RM25200-3CR | R | 3 | Box Lug | 101-200A | 250V AC/DC | Open | 250V | 3 4/5" | €1,443.46 | |
 |
RM25400-1CR | R | 1 | Box Lug | 201-400A | 250V AC/DC | Open | 250V | 4 4/5" | €1,426.66 |
