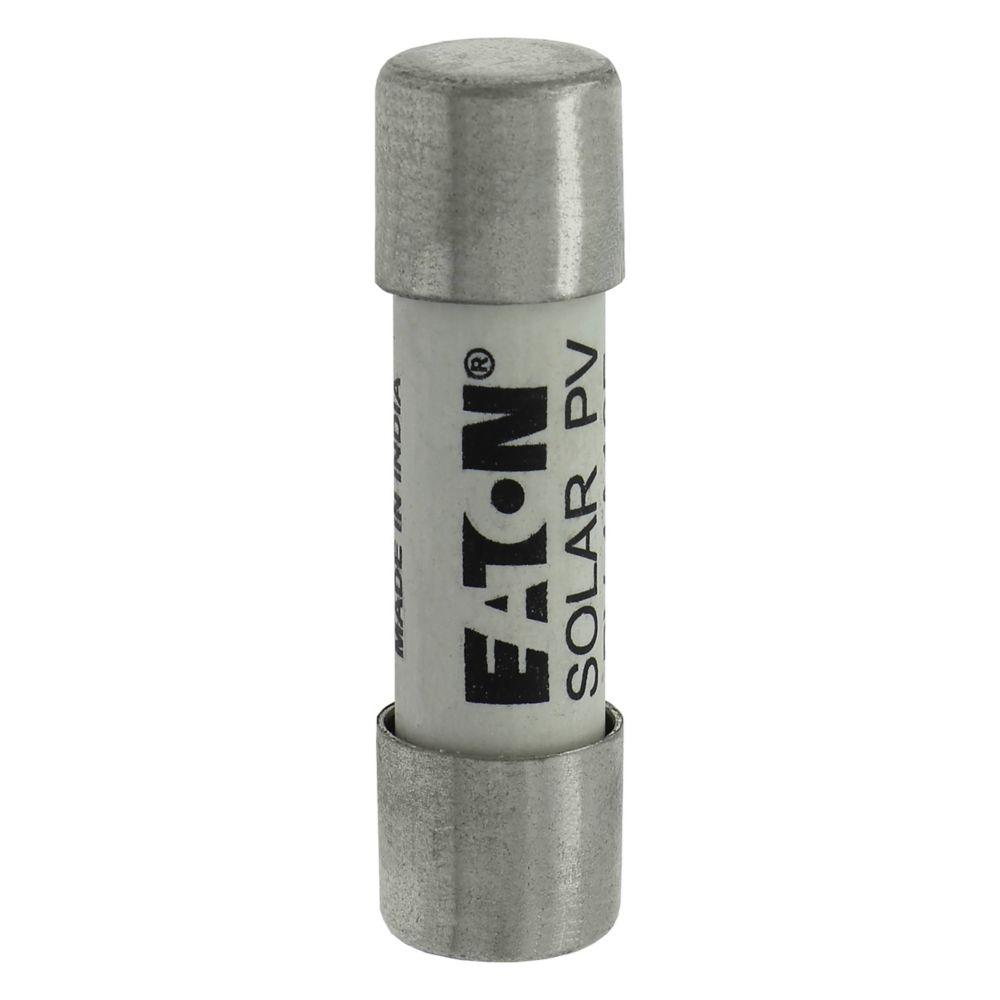

BUSSMANN PV-5A10F Fuse, 5A, 1000V DC
Item: BC8ZQKModel: PV-5A10FCross Ref: 49ZV20
7 In Stock
Ships within 2 days via
10.00% off
€53.58 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | Not Rated |
| Amps | 5A |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Class | Gpv/Ul Pv |
| Dc Voltage | 1 kV DC |
| Dc Voltage Rating | 1000V DC |
| Diameter | 13/32" |
| Element | Single |
| Equivalent Brand And Series | Bussmann Pv F, Littelfuse Spf, Mersen Hp10M, Spfs Series |
| Equivalent Series | Hp10M, Pv-F, Spf, Spfs |
| Fits Fuse Block Style | Nonrejection |
| Fuse Size | 1 1/2" x 13/32" |
| Fuse Size / Group | 10 mm x 38 mm |
| Fuse Type | Cartridge Fuses |
| Interrupt Rating | 20 kA at 1000V DC |
| Length | 1 1/2" |
| Max. Operating Temp. | 90 Deg. C |
| Max. Operating Temp. | 90°C |
| Min. Operating Temp. | -40°C |
| Mounting Type | Holder |
| Overall Diameter | 13/32" |
| Overall Length | 1.51" |
| Series | PV-F Series |
| Speed | Fast Acting |
| Speed Type | Fast Acting |
| Standards | Ccc (1-15A), Csa, Iec 60269-6, Ul 2579 (File Number E335324) |
| Termination Type | Clip |
| Visual Indication | Non Indicating |
| Voltage | Not Rated |
| Voltage (dc) | 1kVDC |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Model | Amps | Body Style | Interrupt Rating | Dc Voltage | Ac Voltage Rating | Dc Voltage Rating | Speed | Visual Indication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PV-10A10F | 10A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €83.43 | |
| PV-12A10F | 12A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €92.38 | |
| PV-15A10F | 15A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €90.48 | |
| PV-8A10F | 8A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €87.75 | |
| PV-1A10F | 1A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €87.75 | |
| PV-2A10F | 2A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €87.75 | |
| PV-3A10F | 3A | Cylindrical | 33 kA at 1000V DC | - | Not Rated | 1000V DC | Fast Acting | Non Indicating | €87.75 |
