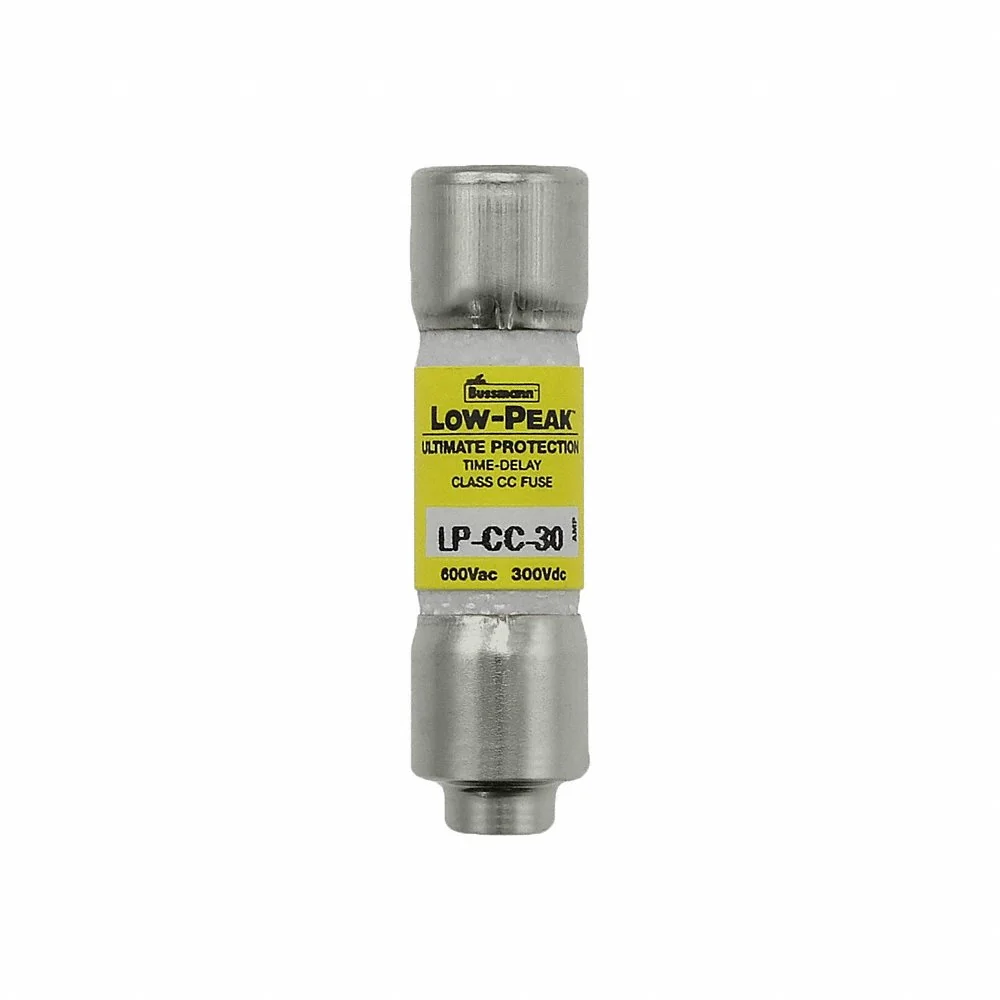

BUSSMANN LP-CC-30 Low-Voltage Fuse, 30 A, 600 VAC / 300 VDC
Item: AA9FMZModel: LP-CC-30Cross Ref: 1CX58
7 In Stock
Ships within 2 days via
10.00% off
€18.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 30A |
| Body Material | Melamine |
| Body Style | Cylindrical |
| Class | Class CC |
| Compatible Fuse Block Series | Bc, Bcm, C2617, C5268, Chcc, Hpf, Opm-1038, Opm-Ng |
| Dc Voltage Rating | 300V DC |
| Diameter | 13/32" |
| Element | Dual |
| Equivalent Brand And Series | Bussmann LP-CC, Littelfuse CCMR, Mersen ATDR Series |
| Equivalent Series | Atdr, Ccmr, Lp-Cc |
| Fits Fuse Block Style | Rejection |
| Functionally Equal To | Ferraz ATDR |
| Fuse Size (lg X Dia) | 1 1/2" x 13/32" |
| Indicating / Nonindicating | Non Indicating |
| Interrupt Rating | 200 kA at 600V AC, 20 kA at 300V DC |
| Length | 1 1/2" |
| Overall Diameter | 13/32" |
| Rejection / Nonrejection | Rejection |
| Series | LP-CC Series |
| Source | Mouser |
| Speed | Time Delay |
| Speed Type | Time Delay |
| Standards | Ce/Ul-248-4 Guide Jddz/Csa Class 1422-02 |
| Visual Indication | Non Indicating |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 1.04 |
| Ship width (cm) | 1.04 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Details:
- Non-indicating fuse designed with a current-limitation facility for protecting small horsepower motor circuits or downstream components against damaging thermal and magnetic effects
- Time-delay characteristic avoids unwanted fuse openings caused by power surges and provides fast response speeds under faulty conditions
Product Variants
| Product | Model | Amps | Body Style | Dc Voltage Rating | Voltage | Diameter | Dc Voltage | Speed | Visual Indication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LP-CC-1 | 1A | Cylindrical | 300V DC | 600V AC | 13/32" | 300V | Time Delay | Non Indicating | €22.13 | |
|
LP-CC-1-1/4 | 1.25A | Cylindrical | 300V DC | 600V AC | 13/32" | - | Time Delay | Non Indicating | €24.64 | |
|
LP-CC-1-1/8 | 1.125A | Cylindrical | 300V DC | 600V AC | 13/32" | - | Time Delay | Non Indicating | €22.13 | |
|
LP-CC-1-4/10 | 1.4A | Cylindrical | 300V DC | 600V AC | 13/32" | - | Time Delay | Non Indicating | €24.64 | |
|
LP-CC-1/2 | 1/2A | Cylindrical | 300V DC | 600V AC | 13/32" | - | Time Delay | Non Indicating | €22.13 | |
 |
LP-CC-10 | 10A | Cylindrical | 150V DC | 600V AC | 13/32" | 150V | Time Delay | Non Indicating | €20.68 | |
|
LP-CC-12 | 12A | Cylindrical | 150V DC | 600V AC/150V DC | 13/32" | - | Time Delay | Non Indicating | €24.64 |
