BUSSMANN KTS-R-300 Fuse Rk1 Kts-r 300a 600vac
Item: AA9PWAModel: KTS-R-300Cross Ref: 1EL31
7 In Stock
Ships within 2 days via
10.00% off
€1,260.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 300A |
| Body Material | Melamine |
| Body Style | Blade |
| Class | Class RK1 |
| Compatible Fuse Block Series | 1Br, R600, Rm250, Rm251, Rm252, Rm254, Rm256, Rm600, Rm601, Rm602, Rm604, Rm606 |
| Dc Voltage Rating | Not Rated |
| Diameter | 2" |
| Element | Single |
| Equivalent Brand And Series | Bussmann Kts-R, Littelfuse Klsr, Mersen A6K-R |
| Equivalent Series | A6K-R, Klsr, Kts-R |
| Fits Fuse Block Style | Rejection |
| Fuse Size | 11 5/8" x 2" |
| Indicating / Nonindicating | Non Indicating |
| Interrupt Rating | 200 kA at 600V AC |
| Length | 11 5/8" |
| Rejection / Nonrejection | Rejection |
| Series | KTS-R Series |
| Speed | Fast Acting |
| Speed Type | Fast Acting |
| Standards | Ce, Ul 248-12 Guide Jddz, File E4273, Csa C22.2 No. 248.12, Class 1422-02, File 53787 |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 30.48 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Body Style | Amps | Interrupt Rating | Diameter | Termination Type | Speed | Visual Indication | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KTS-R-25 | Cylindrical | 25A | 200 kA at 600V AC | 9/16" | - | Fast Acting | Non Indicating | - | €61.36 | |
 |

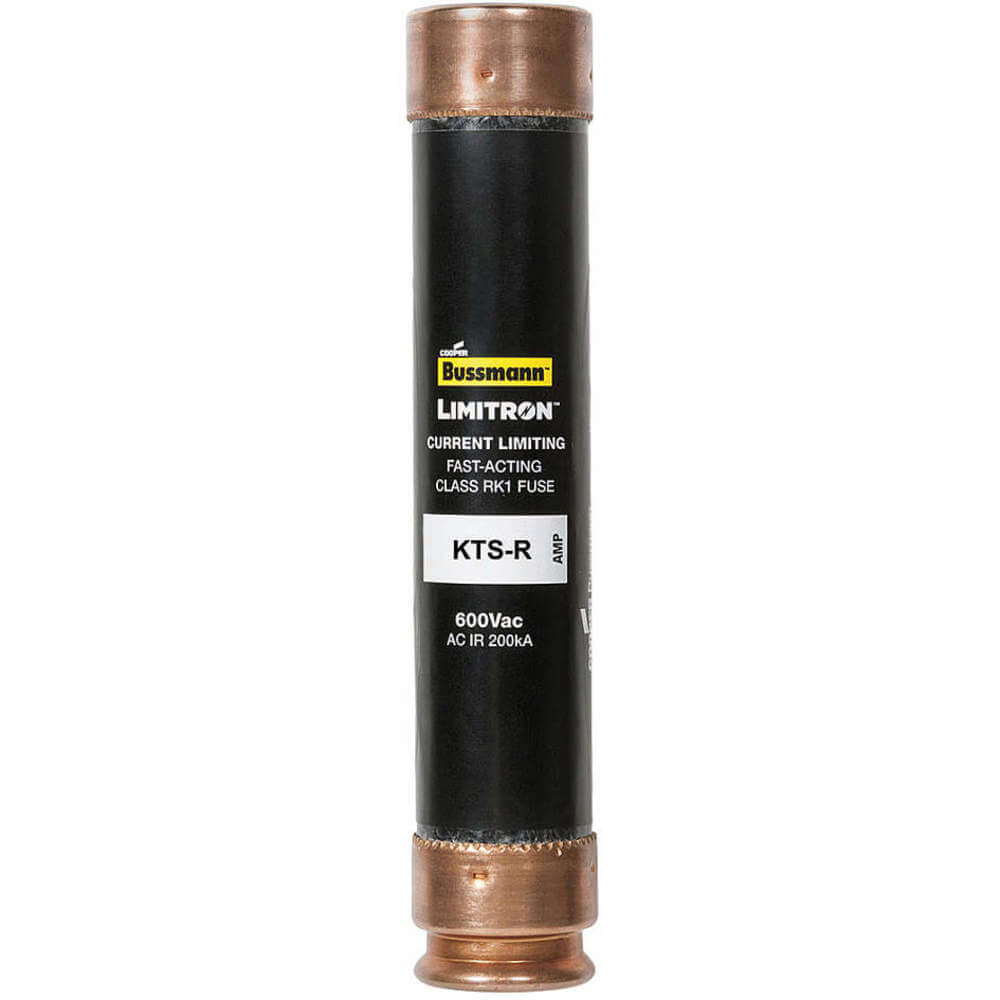

KTS-R-45 | Cylindrical | 45A | 200 kA at 600V AC | 1 1/16" | - | Fast Acting | Non Indicating | - | €167.21 | |
|
KTS-R-50 | Cylindrical | 50A | 200 kA at 600V AC | 1.06" | - | Fast Acting | Non Indicating | - | €167.21 | |
|
KTS-R-60 | Cylindrical | 60A | 200 kA at 600V AC | 13/16" | - | Fast Acting | Non Indicating | - | €159.89 | |
|
KTS-R-70 | Blade | 70A | 200 kA at 600V AC | 1" | - | Fast Acting | Non Indicating | - | €349.07 | |
 |
KTS-R-100 | Blade | 100A | 200 kA at 600V AC | 1" | - | Fast Acting | Non Indicating | - | €241.09 | |
|
KTS-R-125 | Blade | 125A | 200 kA at 600V AC | 1 9/16" | - | Fast Acting | Non Indicating | - | €373.21 |
