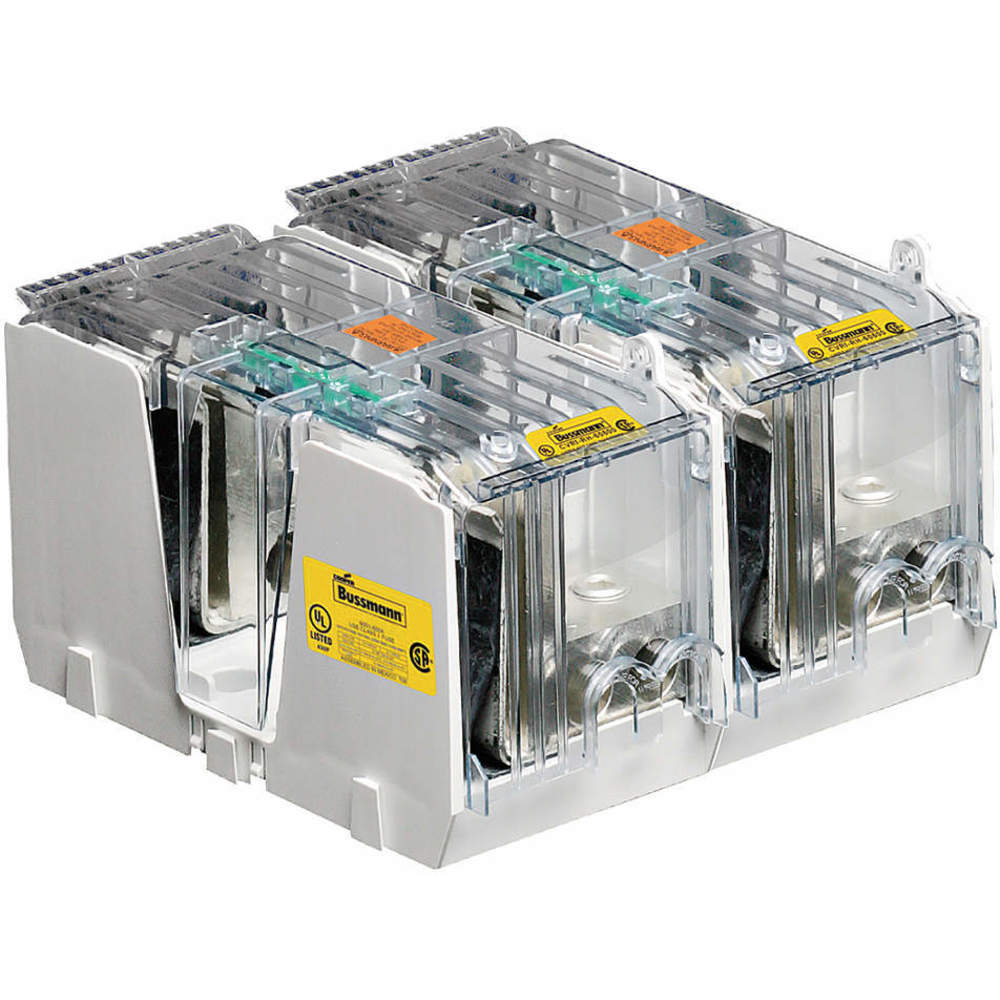

BUSSMANN JM60600-2CR Fuse Block, Industrial, 600VAC Rating, 450 to 600 Amp. Range
Item: AC8FEGModel: JM60600-2CRCross Ref: 39P409
7 In Stock
Ships within 2 days via
10.00% off
€1,992.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amp Range | 401-600A |
| Amperage Range | 450 to 600 |
| Amps | 450-600A |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Depth | 6" |
| Features | Short Circuit Protection |
| Fits Fuse Type | Industrial |
| For Fuse Size | 8" x 2 1/2", 8" x 2 19/32" |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Current | 401-600A |
| Fuse Dia. | 2" |
| Fuse Holder Code | AE |
| Fuse Length | 8" |
| Fuse Overall Diameter | 2 19/32" |
| Fuse Overall Length | 9.3" |
| Fuse Type | Industrial |
| Fuse Ul Class | Class J |
| Height | 6" |
| Indicating / Nonindicating | Non Indicating |
| Length | 9.3" |
| Material | Thermoplastic |
| Max. Amps | 600A |
| Max. Voltage | 600V |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 2 |
| Product Datasheet | bussmann-jm60100-3cr.pdf |
| Spring Reinforced Clip | Yes |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Voltage Rating | 600V AC/300V DC |
| Width | 9 1/2" |
| Wire Range | 4 AWG to 500 mcm |
| Wire Size | 4 AWG to 250 kcmil |
Shipping Info:
| Ship weight (kg) | 3.57 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 24.13 |
| HS code | 8536908085 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amp Range | Height | Wire Size | Fuse Block Design | Fuse Length | Depth | Fuse Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JM60100-1CR | 1 | 61-100A | 2 4/5" | 14 AWG to 1/0 AWG | Open | 4 3/5" | 2 1/5" | 3/4" | €125.17 | |
 |
JM60100-2CR | 2 | 61-100A | 2 4/5" | 14 AWG to 1/0 AWG | Open | 4 3/5" | 2 1/5" | 3/4" | €248.05 | |
 |
JM60100-3CR | 3 | 61-100A | 2 4/5" | 14 AWG to 1/0 AWG | Open | 4 3/5" | 2 1/5" | 3/4" | €431.09 | |
 |
JM60200-1CR | 1 | 101-200A | 3 4/5" | 6 AWG to 250 mcm | Open | 5 3/4" | 3" | 1" | €464.00 | |
 |
JM60200-2CR | 2 | 101-200A | 3 4/5" | 6 AWG to 250 mcm | Open | 5 3/4" | 3" | 1" | €858.04 | |
 |
JM60200-3CR | 3 | 101-200A | 3 4/5" | 6 AWG to 250 mcm | Open | 5 3/4" | 3" | 1" | €1,299.46 | |
 |
JM60400-1CR | 1 | 201-400A | 4 4/5" | 600 kcmil to 4 AWG | Open | 7 1/5" | 4 1/5" | 1 3/5" | €750.58 |
