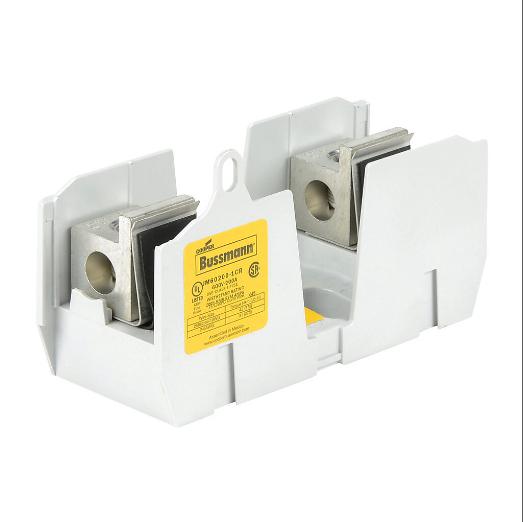

BUSSMANN JM60200-1CR-1 Modular Fuse Block, 200A, 600V, 1-Pole, 6 Awg-250 Mcm Copper Or Aluminum, Box Lug
€343.80 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Block |
| Accepts Fuse Class | Class J |
| Amps Rating | 200A |
| Conductor Connection Type | Box Lug |
| Conductor Size | 6 AWG to 250 MCM Copper Or Aluminum |
| Modular | Yes |
| Mounting | Panel |
| No. Of Poles | 1 |
| Product Datasheet | bussmann-cvri-j-60100-m-1.pdf |
| Voltage Rating | 600V |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Height | Fuse Amps | Fuse Overall Length | Wire Size | Fuse Overall Dia. | Fuse Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JM60100-1CR | 1 | 70-100A | 2 4/5" | 61-100A | 7 1/5" | 14 AWG to 1/0 AWG | 1 1/8" | 4 3/5" | €113.21 | |
 |
JM60100-2CR | 2 | 61-100A | 2 4/5" | 61-100A | 7 1/5" | 14 AWG to 1/0 AWG | 1 1/8" | 4 3/5" | €283.27 | |
 |
JM60100-3CR | 3 | 70-100A | 2 4/5" | 61-100A | 7.81" | 14 AWG to 1/0 AWG | 1 1/8" | 4 3/5" | €430.18 | |
 |
JM60200-1CR | 1 | 101-200A | 3 4/5" | 101-200A | 8.7" | 6 AWG to 250 mcm | 1 5/8" | 5 3/4" | €214.00 | |
 |
JM60200-2CR | 2 | 110-200A | 3 4/5" | 101-200A | 8.7" | 6 AWG to 250 mcm | 1 5/8" | 5 3/4" | €1,041.36 | |
 |
JM60200-3CR | 3 | 110-200A | 3 4/5" | 101-200A | 8.7" | 6 AWG to 250 mcm | 1 5/8" | 5 3/4" | €1,120.35 | |
 |
JM60400-1CR | 1 | 201-400A | 4 4/5" | 201-400A | 10.11" | 600 kcmil to 4 AWG | 2 1/8" | 7 1/5" | €1,120.99 |
