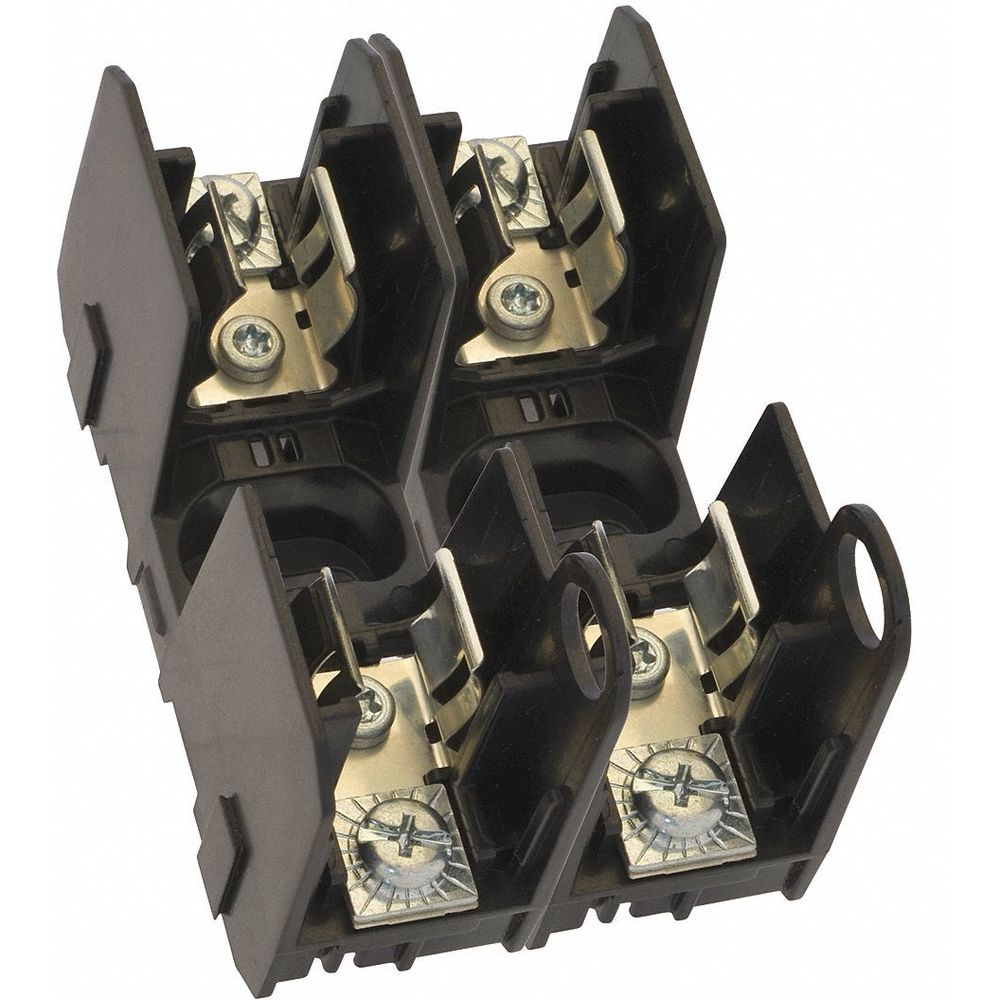

BUSSMANN JM60030-2SR 2-Pole Industrial Fuse Block, AC 600 VAC, DC 300 VDC, 0 to 30A
Item: CD2LGBModel: JM60030-2SRCross Ref: 49ZU64
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | JM60030 Series |
| Connector Type | Screw |
| Dc Voltage | 300V DC |
| Features | Optional Cover And Indication |
| Fits Fuse Type | Industrial |
| For Fuse Size | 2 1/4" x 13/16" Dia. |
| For Use | DFJ,JKS,LPJ |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Current | 0-30A |
| Fuse Overall Diameter | 13/16" |
| Fuse Overall Length | 3 2/5" |
| Fuse Type | Industrial |
| Fuse Ul Class | Class J |
| Height | 2.3" |
| Housing Material | Thermoplastic |
| Indicating / Nonindicating | Non Indicating |
| Length | 3 2/5" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 2 |
| Operating Amps | 0-30A |
| Rejection / Nonrejection | Non Rejection |
| Spring Reinforced Clip | Yes |
| Standards | Ce, Csa Certified, Ul Listed |
| Type | Fuse Block |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Voltage Rating | 600V AC/300V DC |
| Width | 2 1/5" |
| Wire Range | 18 AWG to 10 AWG |
| Wire Size | 10 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 5.59 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Connector Type | Amp Range | Voltage Rating | Mounting Style | Fuse Block Design | Fits Fuse Type | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JM60030-3SR | 3 | Screw | 0-30A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2.3" | €178.98 | |
 |
JM60030-1CR | 1 | Box Lug | 0-30A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2.3" | €66.59 | |
|
JM60030-2CR | 2 | Box Lug | 0-30A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2.3" | €208.79 | |
 |
JM60060-2CR | 2 | Box Lug | 31-60A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2 3/5" | €234.14 | |
|
JM60060-1CR | 1 | Box Lug | 31-60A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2 3/5" | €75.58 | |
|
JM60060-3CR | 3 | Box Lug | 31-60A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2 3/5" | €308.32 | |
 |
JM60030-2PR | 2 | Pressure Plate | - | - | - | Open | Industrial | 2.3" | €176.65 |
