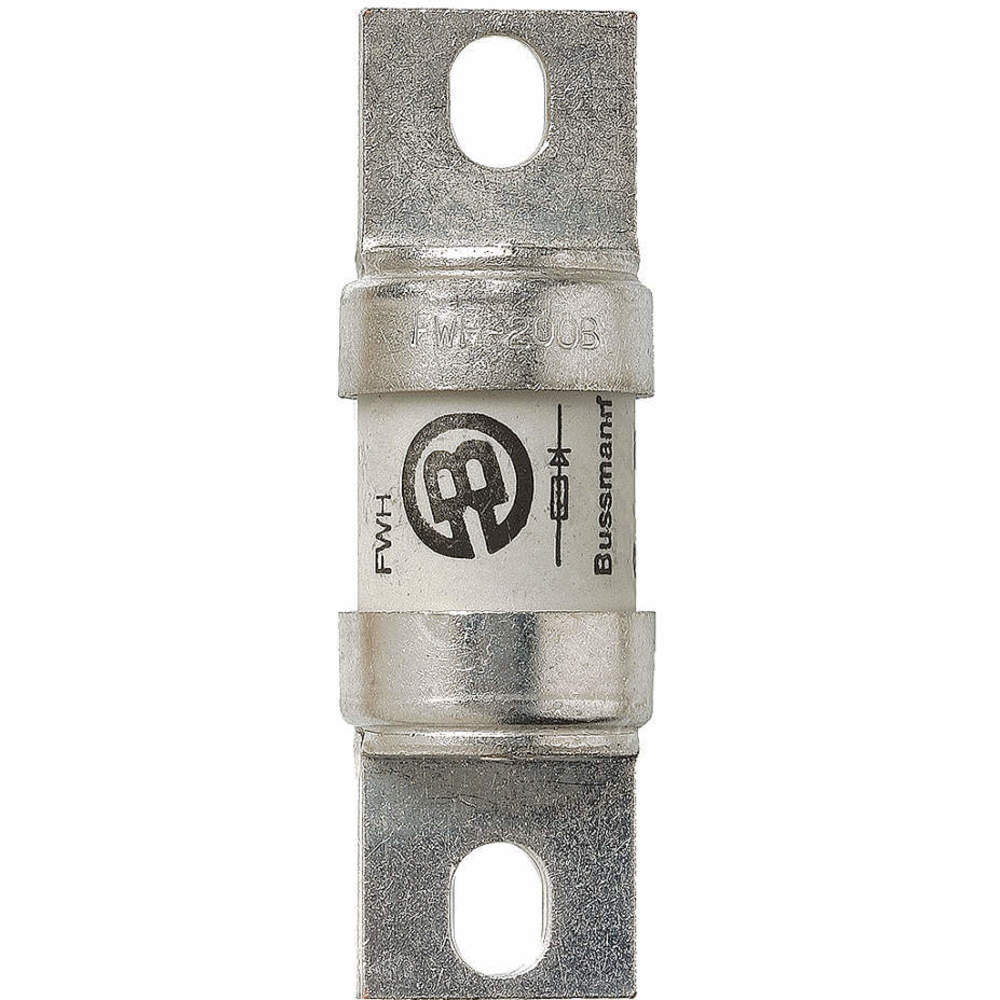

BUSSMANN FWH-400A High Speed Fuse, 400A, 500 VDC/VAC
Item: AE8QUMModel: FWH-400ACross Ref: 6F404
7 In Stock
400A
Ships within 2 days via
10.00% off
€404.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Voltage Rating | 500V AC |
| Amps | 400A |
| Body Material | Fiberglass |
| Body Style | Bolt On |
| Class | High Speed |
| Compatible Fuse Block Series | 1Bs |
| Dc Voltage Rating | 500V DC |
| Diameter | 1 1/2" |
| Element | Single |
| Equivalent Brand And Series | A50QS, BUSSMANN FWH, LITTELFUSE L50S, MERSEN A50P |
| Equivalent Series | A50P, A50Qs, Fwh, L50S |
| Fits Fuse Block Style | Nonrejection |
| Fuse Size | 4 11/32" x 1 1/2" |
| Indicating / Nonindicating | Non Indicating |
| Interrupt Rating | 200 kA at 500V AC, 50 kA at 500V DC |
| Length | 4 11/32" |
| Rejection / Nonrejection | Non Rejection |
| Series | FWH-A Series |
| Speed | Fast Acting |
| Speed Type | Fast Acting |
| Standards | Ce, Csa Certified, Ul Recognized |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 4.09 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 11.48 |
| HS code | 8536100040 |
| Country of Origin | MX |
Product Details:
- Bussmann FWH-400A semiconductor fuse best suited for providing short-circuit and overcurrent protection in DC common buses & DC drives
- Low arc voltage and low let-through energy ensure minimum power consumption with optimum efficiency
- Easily coordinated with existing and new variable speed drives and electric controllers
- Adheres to CE, UL and CSA standards
Product Variants
| Model | Amps | Diameter | Body Material | Fuse Size | Body Style | Dc Voltage Rating | Speed | Visual Indication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FWH-45B | 45A | 13/16" | Ceramic | 3 3/16" x 13/16" | Bolt On | 500V DC | Fast Acting | Non Indicating | €129.04 | |
| FWH-1600A | 1600A | 4 1/4" | Fiberglass | 10 7/32" x 4 1/4" | Bolt On | 500V DC | Fast Acting | Non Indicating | €4,530.67 | |
| FWH-325A | 325A | 1 1/2" | Fiberglass | 4 11/32" x 1 1/2" | Bolt On | 500V DC | Fast Acting | Non Indicating | €219.31 | |
| FWH-450A | 450A | 2" | Fiberglass | 4 11/32" x 2" | Bolt On | 500V DC | Fast Acting | Non Indicating | €300.76 | |
| FWH-35B | 35A | 13/16" | Ceramic | 3 3/16" x 13/16" | Bolt On | 500V DC | Fast Acting | Non Indicating | €176.29 | |
| FWH-50B | 50A | 13/16" | Ceramic | 3 3/16" x 13/16" | Bolt On | 500V DC | Fast Acting | Non Indicating | €191.86 | |
| FWH-60B | 60A | 13/16" | Ceramic | 3 3/16" x 13/16" | Bolt On | 500V DC | Fast Acting | Non Indicating | €160.99 |
