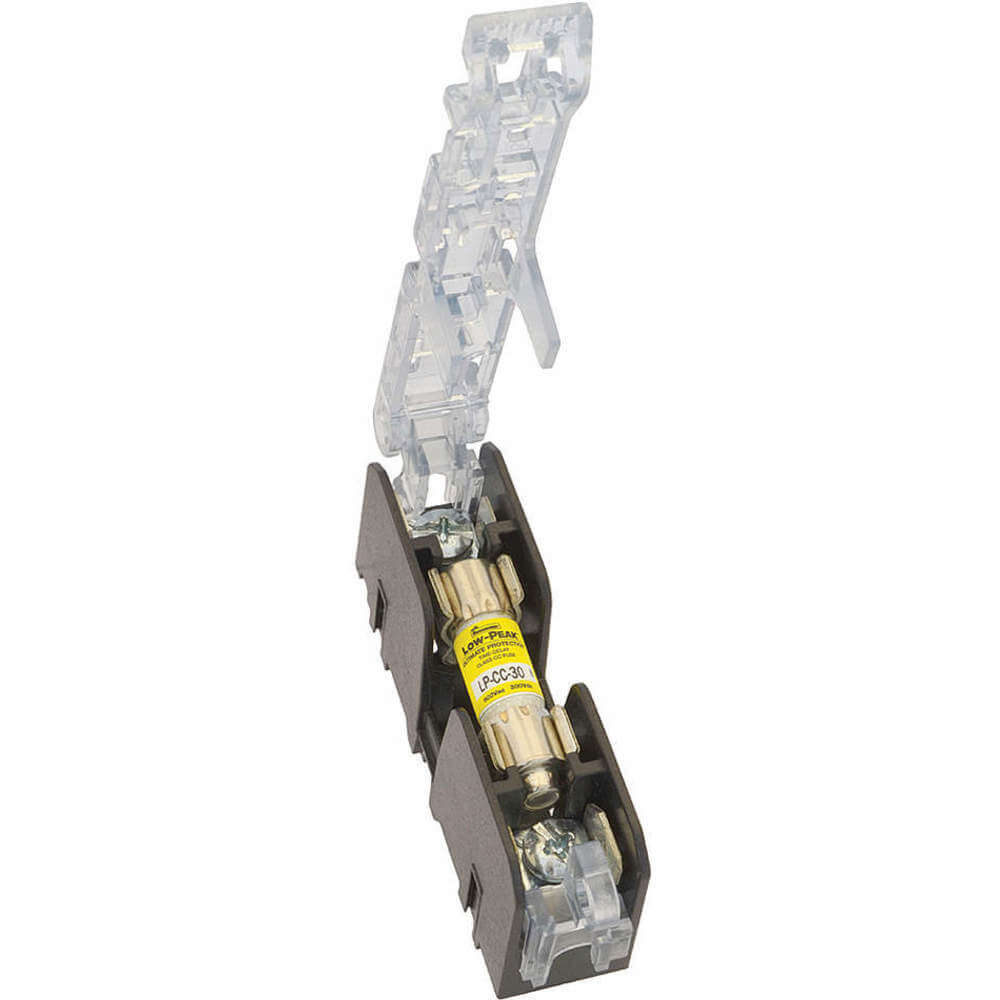

BUSSMANN BCM603-3C Fuse Block, 30 A, Pressure Plate Terminal
Item: AH9MWXModel: BCM603-3CCross Ref: 40LG68
7 In Stock
Ships within 2 days via
10.00% off
€134.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | BCM603 Series |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Fits Fuse Type | Class CC |
| For Fuse Size | 1 1/2" x 13/32" Dia. |
| For Use | FNQ-R, KTK-R, LP-CC |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Current | 0-30A |
| Fuse Overall Diameter | 13/32" |
| Fuse Overall Length | 3" |
| Fuse Ul Class | Class CC |
| Height | 1.3" |
| Housing Material | Thermoplastic |
| Indicating / Nonindicating | Non Indicating |
| Length | 3" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 3 |
| Operating Amps | 0-30A |
| Rejection / Nonrejection | Rejection |
| Standards | Ce, Csa Certified, Reach, Rohs, Ul Listed |
| Type | Fuse Block |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Voltage Rating | 600V AC/300V DC |
| Width | 2 2/5" |
| Wire Range | 14 AWG to 2 AWG |
| Wire Size | 2 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.84 |
| Country of Origin | MX |
Product Details:
- Fuse Type : Class CC
Product Variants
| Product | Model | Number Of Poles | Voltage Rating | Wire Range | Voltage | Wire Size | Fuse Ul Class | Amp Range | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

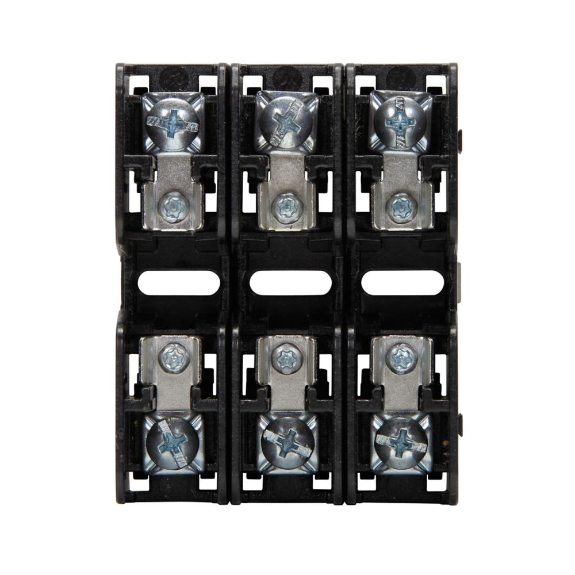

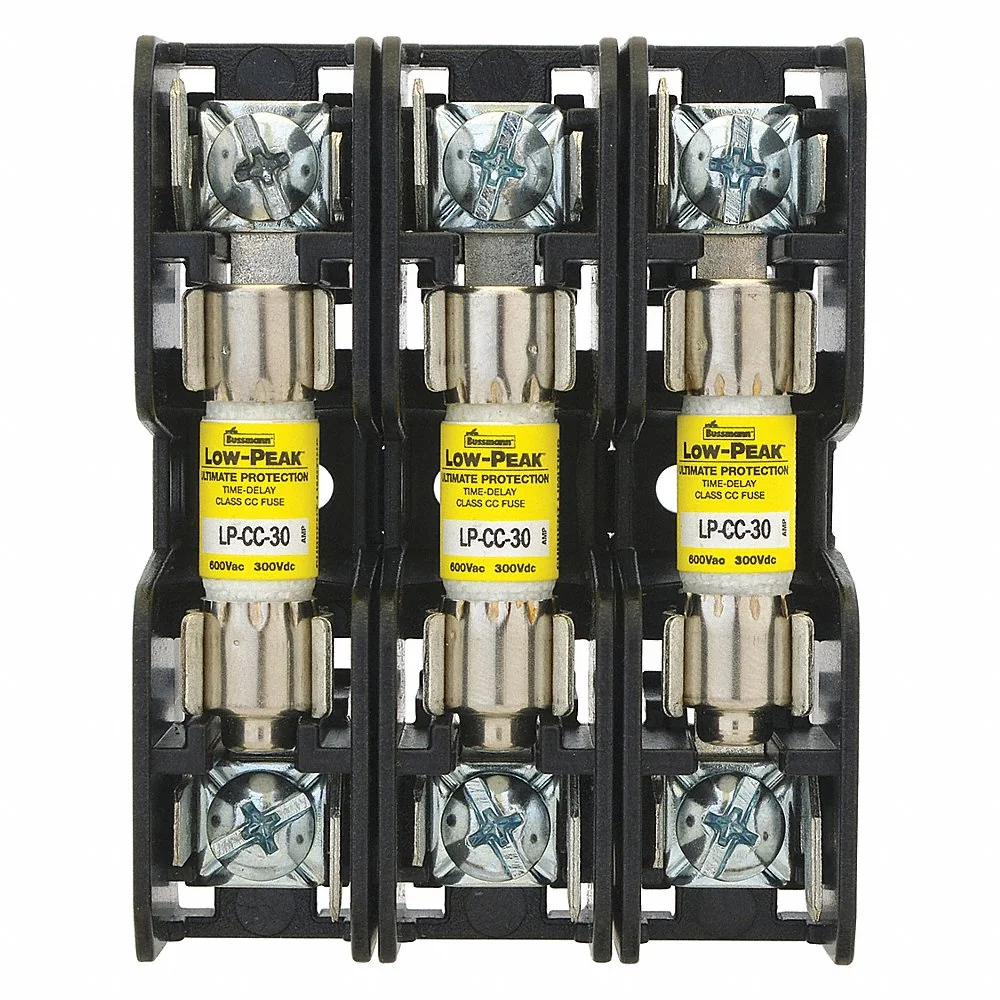

BCM603-3P | 3 | 600V AC/300V DC | 18 AWG to 10 AWG | 600V AC/300V DC | 10 AWG to 18 AWG | Class CC | 0-30A | Bolt-Down, Din Rail | €58.27 | |
 |

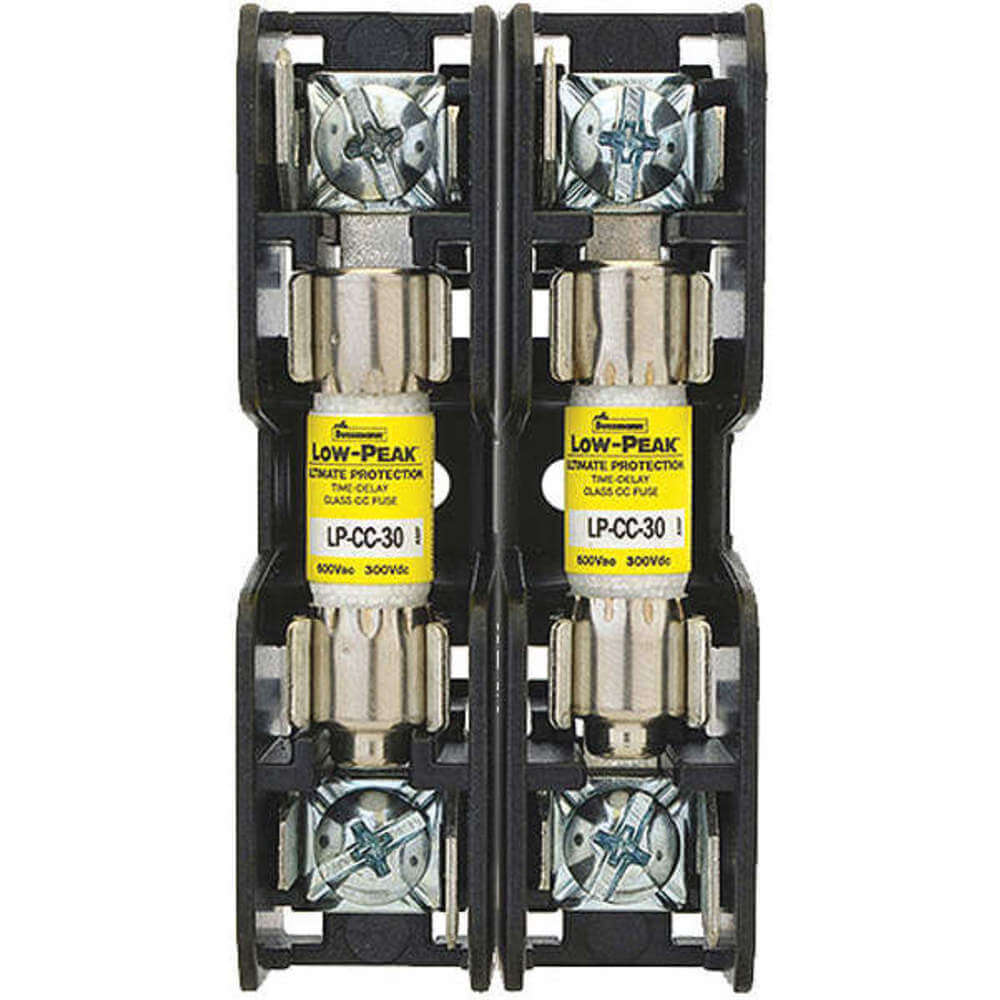

BCM603-2P | 2 | 600V AC/300V DC | 18 AWG to 10 AWG | 600V AC/300V DC | 10 AWG to 18 AWG | Class CC | 0-30A | Bolt-Down, Din Rail | €45.43 | |
 |
BCM603-1P | 1 | 600V AC/300V DC | 18 AWG to 10 AWG | 600V AC/300V DC | 10 AWG to 18 AWG | Class CC | 0-30A | Bolt-Down, Din Rail | €30.16 | |
 |

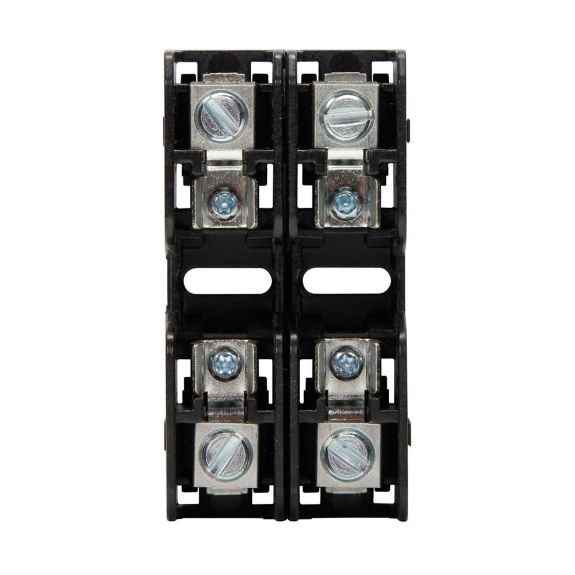

BCM603-2C | 2 | 600V AC/DC | 14 AWG to 2 AWG | 600V AC/DC | - | Class CC | 0-30A | Bolt-Down, Din Rail | €113.84 | |
|
BCM603-2SQ | 2 | 600V AC/DC | 18 AWG to 10 AWG | 600V AC/DC | - | Class CC | 0-30A | Bolt-Down, Din Rail | €40.65 | |
 |

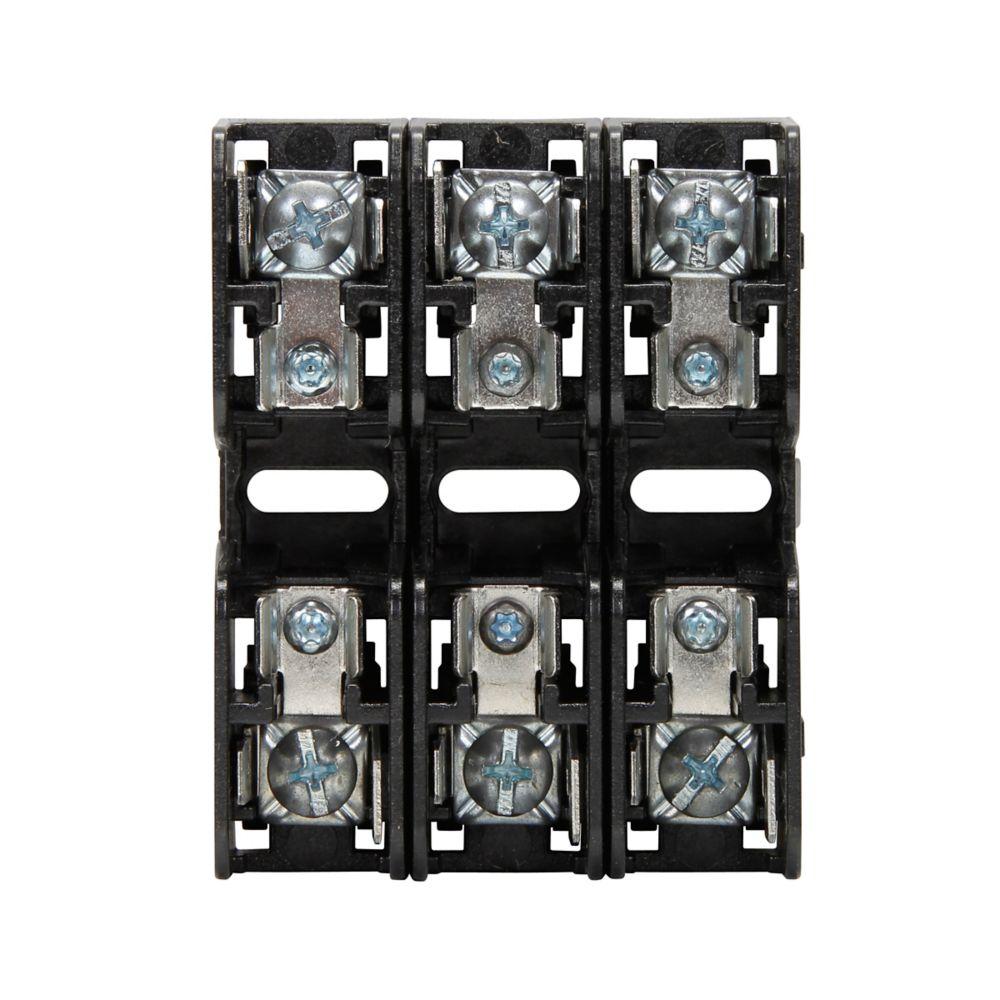

BCM603-3PQ | 3 | 600V AC/DC | 18 AWG to 10 AWG | 600V AC/DC | - | Class CC | 0-30A | Bolt-Down, Din Rail | €62.36 | |
 |

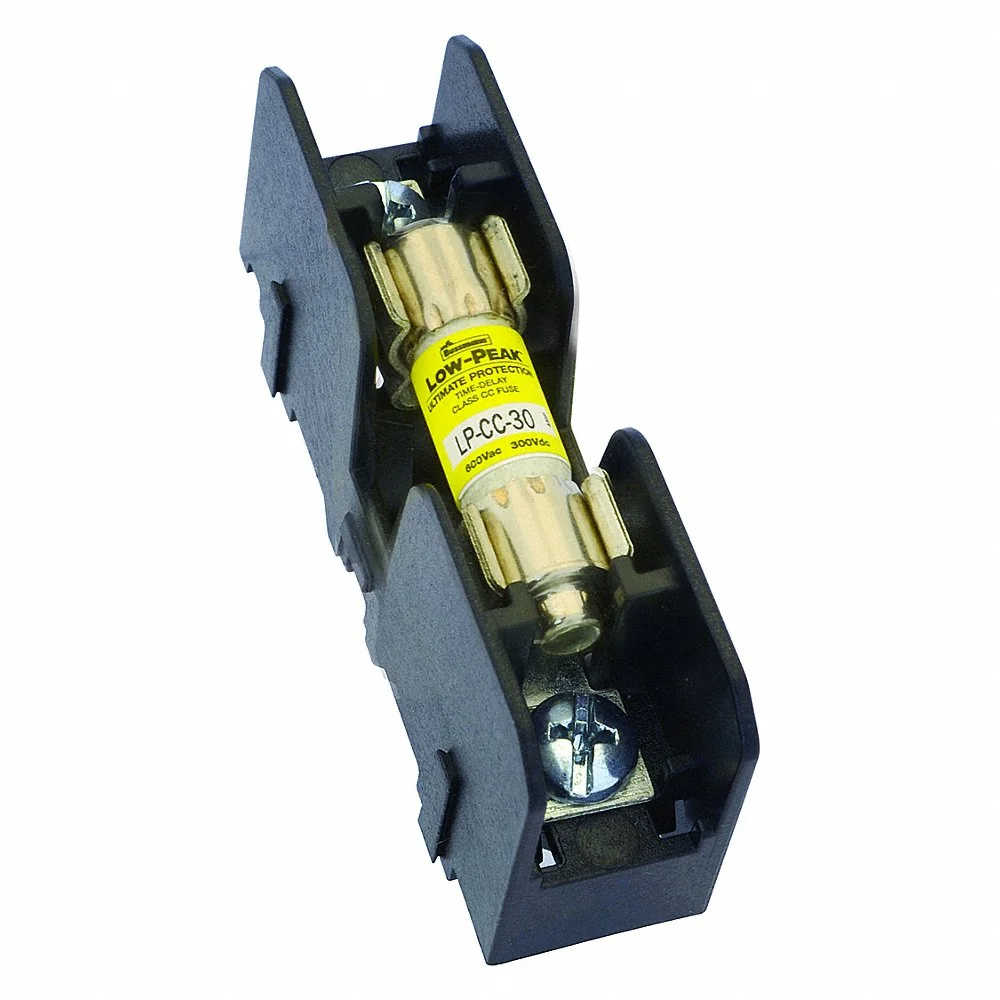

BCM603-1SQ | 1 | 600V AC/DC | 18 AWG to 10 AWG | - | - | Class CC | 0-30A | Bolt-Down, Din Rail | €25.47 |
