BUSSMANN 16500-1 Power Distribution Block, 1 Pole, 6 AWG - 350 kcmil Line Side Wire Size Range, 5.43 Inch Overall Lg
Item: AD3HNVModel: 16500-1Cross Ref: 3ZJC8
7 In Stock
Ships within 2 days via
5.00% off
€253.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Distribution Block |
| Amps | 620A |
| Depth | 2.93" |
| Flammability Rating | V-0 |
| For Conductor Material | Aluminum, Copper |
| For Max. Line Wire Size | 350 kcmil |
| For Max. Load Wire Size | 350 kcmil |
| For Min. Line Wire Size | 6 AWG |
| For Min. Load Wire Size | 6 AWG |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Length | 5 1/2" |
| Line Connections/pole | 2 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 2 |
| Load Side Connection Type | Lug |
| Max. Amps | 620A |
| Max. Operating Temp. | 248°F |
| Max. Voltage | 600V AC/DC |
| No. Of Poles | 1 |
| Overall Depth | 2.89" |
| Overall Length | 5.43" |
| Overall Width | 5.74" |
| Power Distribution Block Design | Open |
| Primary Wire Range | 4 to 350 MCM CU-AL |
| Secondary Connection/pole | 2 |
| Standards | Csa Class 6228-01, Ul 1059 |
| Terminal Material | Aluminum |
| Type | PDB |
| Voltage | 600V |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 10.67 |
| HS code | 8537109050 |
| Country of Origin | MX |
Product Details:
- Primary Connections/Pole (2)
Product Variants
| Product | Model | Line Connections/pole | Load Connections/pole | Amps | Overall Length | Overall Width | Overall Depth | Terminal Material | For Min. Line Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16321-1 | 1 | 6 | 175A | 5.5" | 2 1/2" | 3.5" | Aluminum | 14 AWG | €233.88 | |
 |
16370-1 | - | - | 310A | - | - | - | - | - | €161.68 | |
 |
PDBFS204 | 1 | 1 | 175A | 2.15" | 0.99" | 3.7" | Aluminum | 14 AWG | €97.90 | |
 |

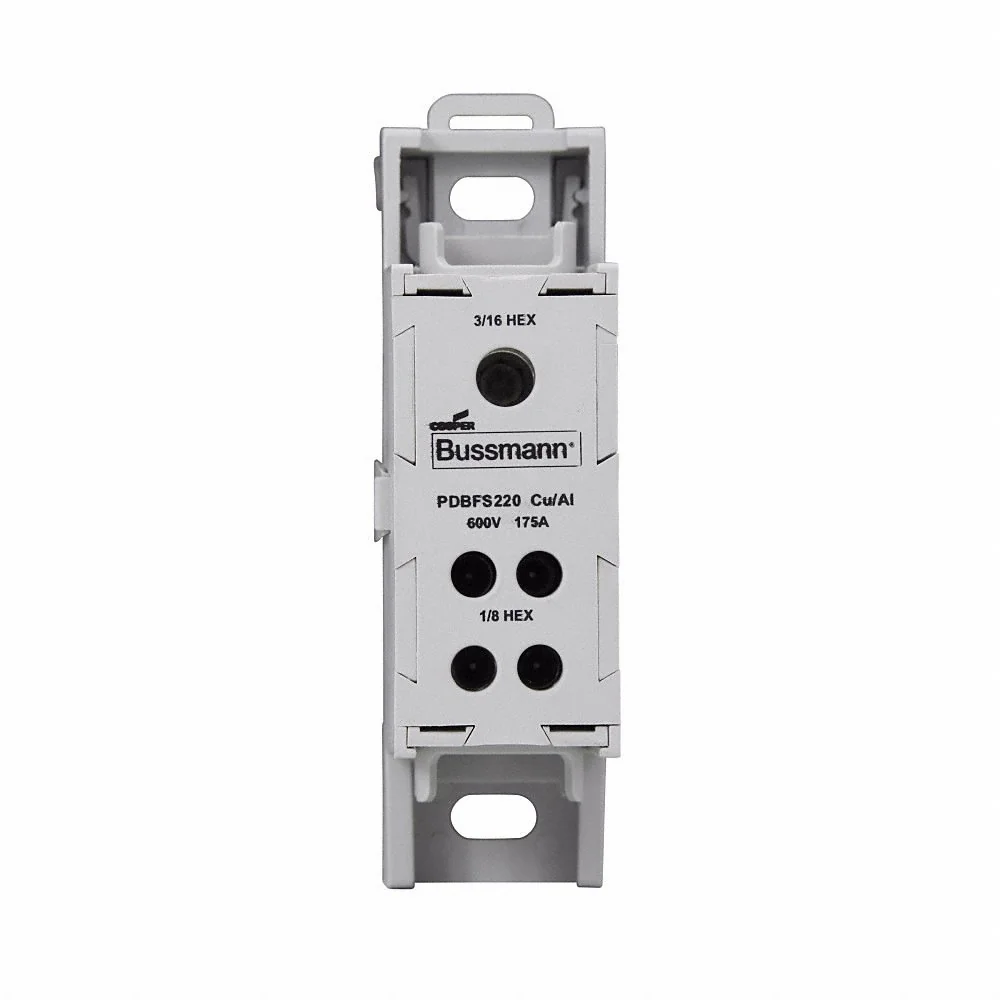

PDBFS220 | 1 | 4 | 175A | 2.15" | 0.99" | 3.7" | Aluminum | 14 AWG | €114.11 | |
 |
PDBFS303 | 1 | 1 | 310A | 5" | 1/2" | 1" | Aluminum | 6 AWG | €231.22 | |
 |

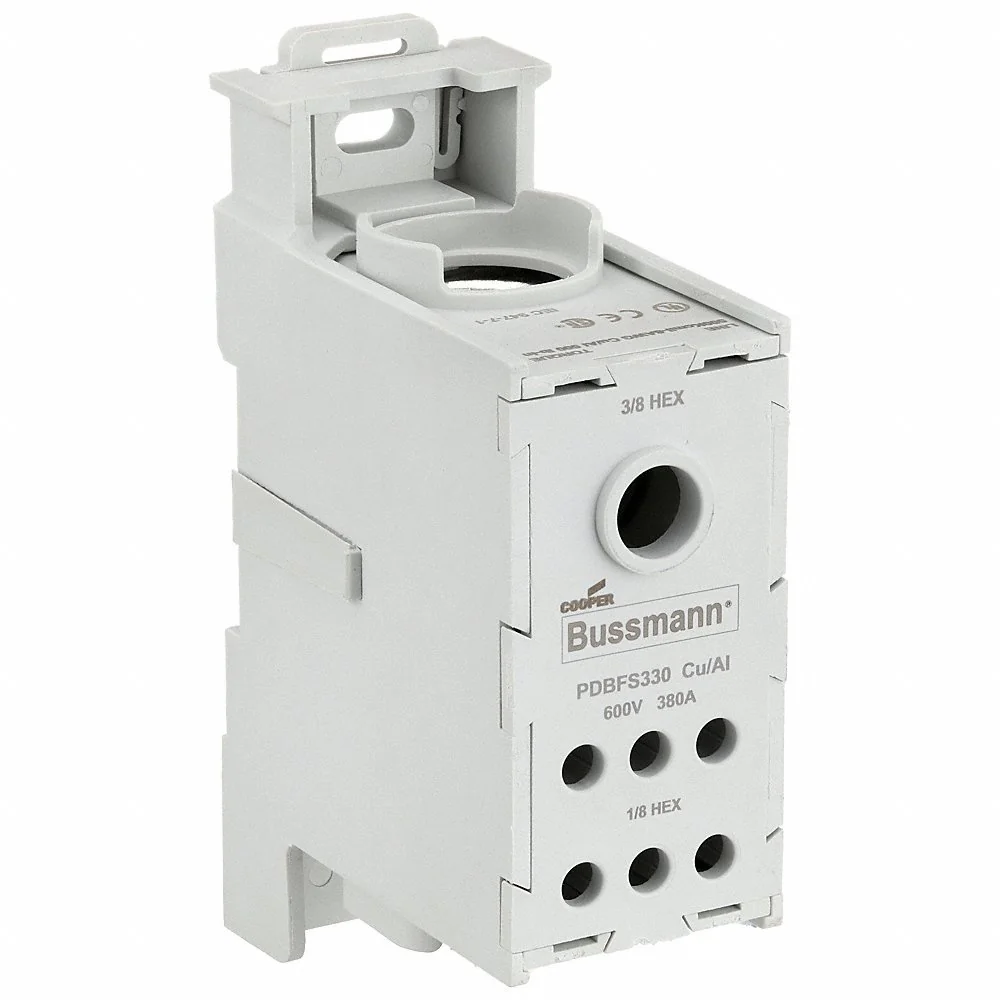

PDBFS330 | 1 | 6 | 380A | 4.63" | 1.58" | 2.98" | Aluminum | 6 AWG | €288.95 | |
 |
PDBFS377 | 2 | 12 | 570A | 4.6" | 1.86" | 2.94" | Aluminum | 4 AWG | €269.94 |
