BUSSMANN Distribution Block: 1 Pole
Bussmann distribution blocks are used in electrical distribution systems, industrial and commercial settings. These 1 pole distribution blocks facilitate organised power distribution by connecting and distributing electrical circuits, enhancing safety and control within electrical panels and eq...uipment. These distribution blocks are designed for panel installation, optimising space within electrical enclosures.Read more
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O| Style | Model | Line Connections/pole | For Maximum Line Wire Size | Load Connections/pole | For Maximum Load Wire Size | Amps | Overall Length | Overall Width | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

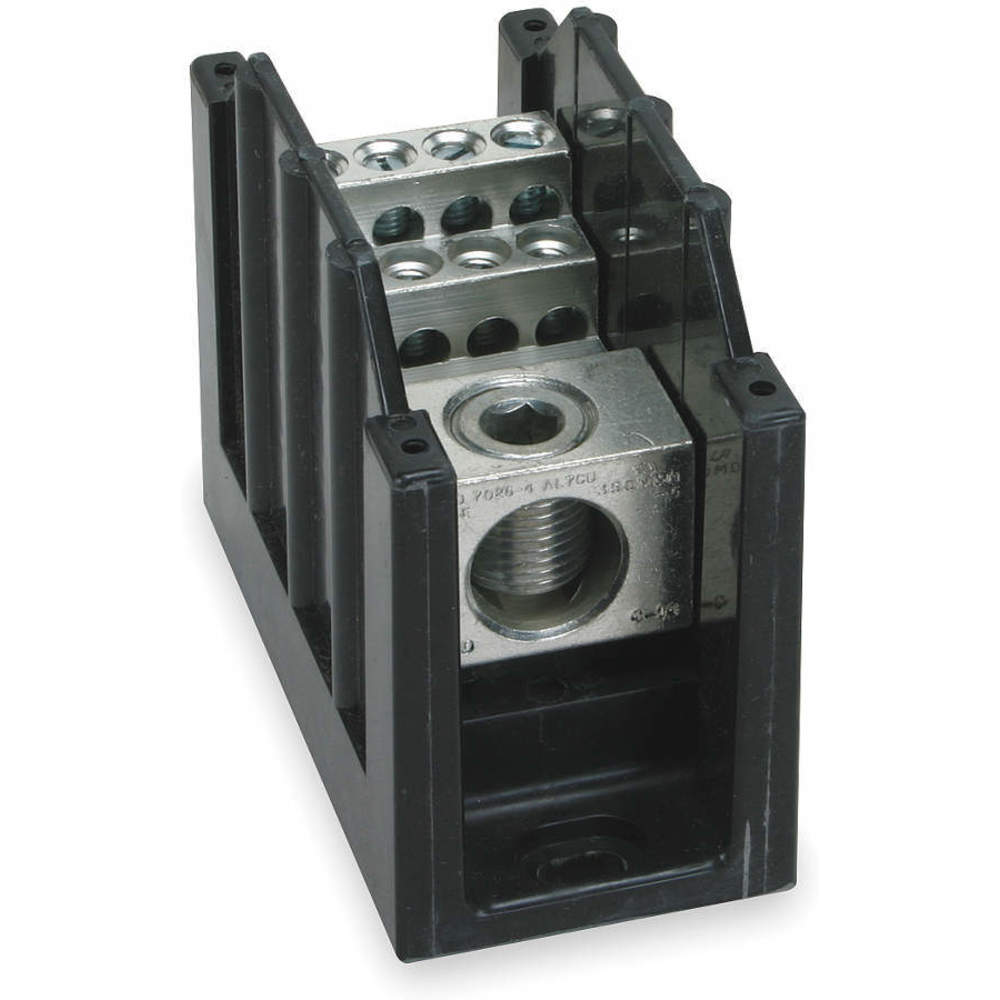

| A | 16370-1 | - | - | - | - | 310A | - | - | - | €161.68 | |

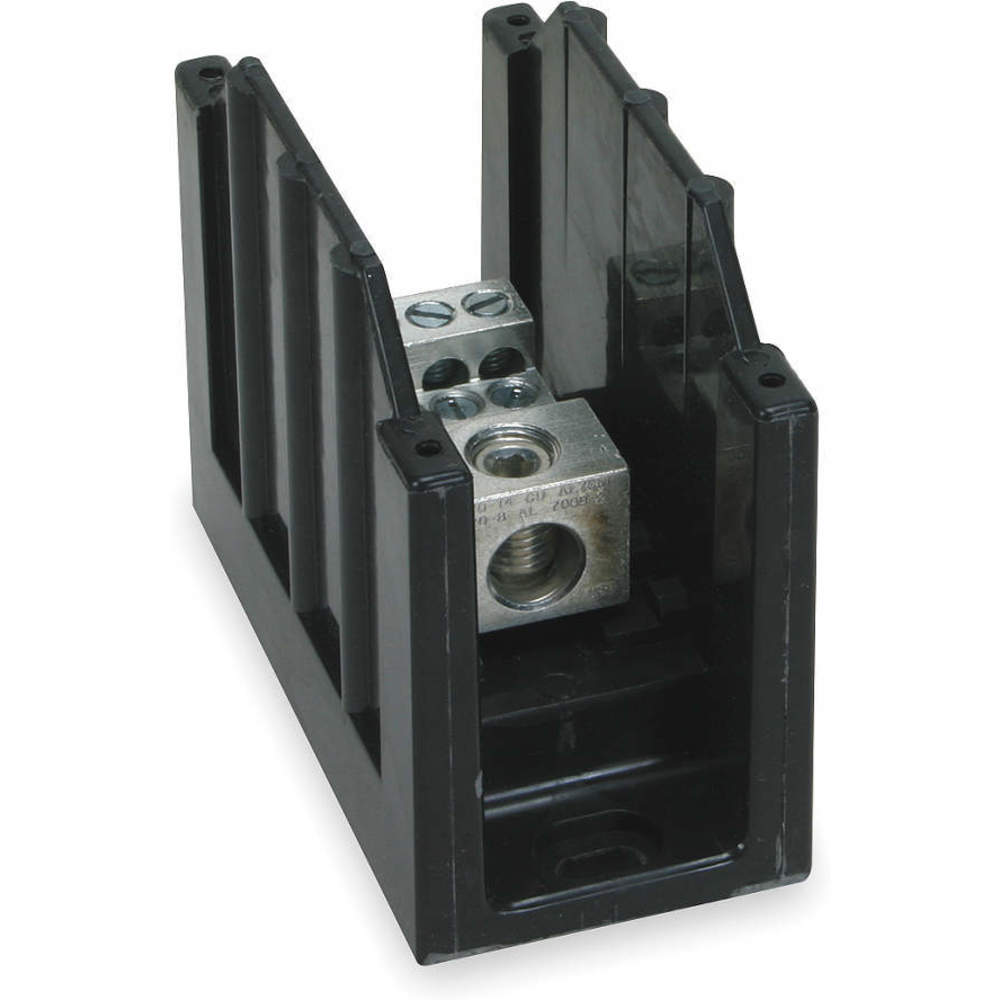

| B | 16321-1 | 1 | 2/0 AWG | 6 | 4 AWG | 175A | 5.5" | 2 1/2" | 3.5" | €187.52 | |

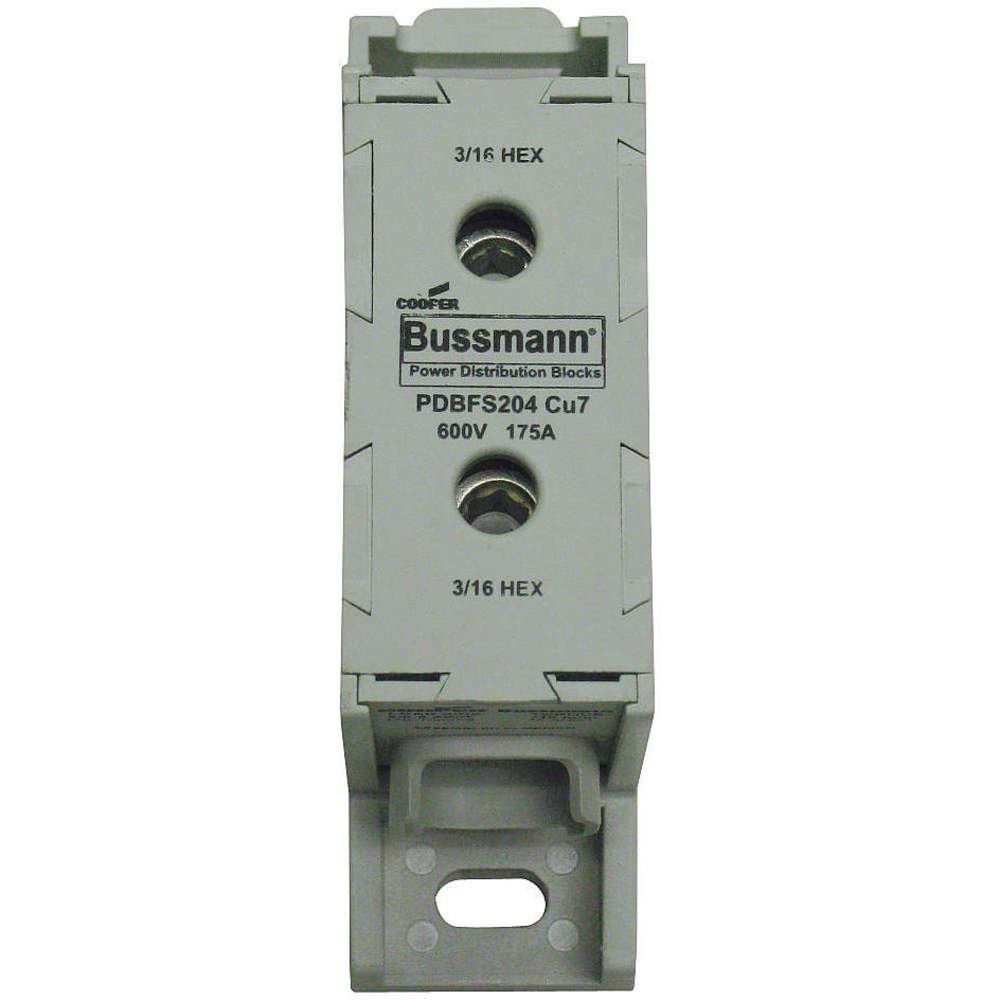

| C | PDBFS204 | 1 | 2/0 AWG | 1 | 2/0 AWG | 175A | 2.15" | 0.99" | 3.7" | €71.21 | |

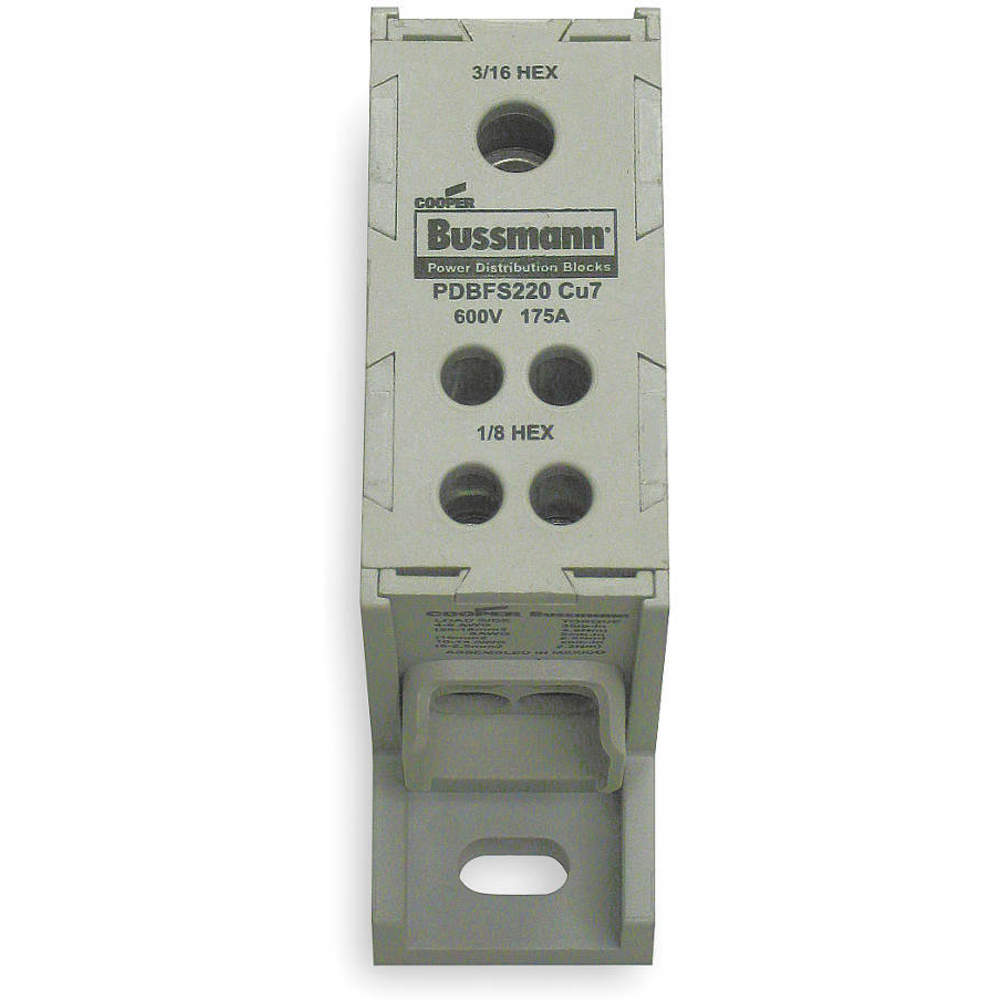

| D | PDBFS220 | 1 | 2/0 AWG | 4 | 4 AWG | 175A | 2.15" | 0.99" | 3.7" | €105.69 | |

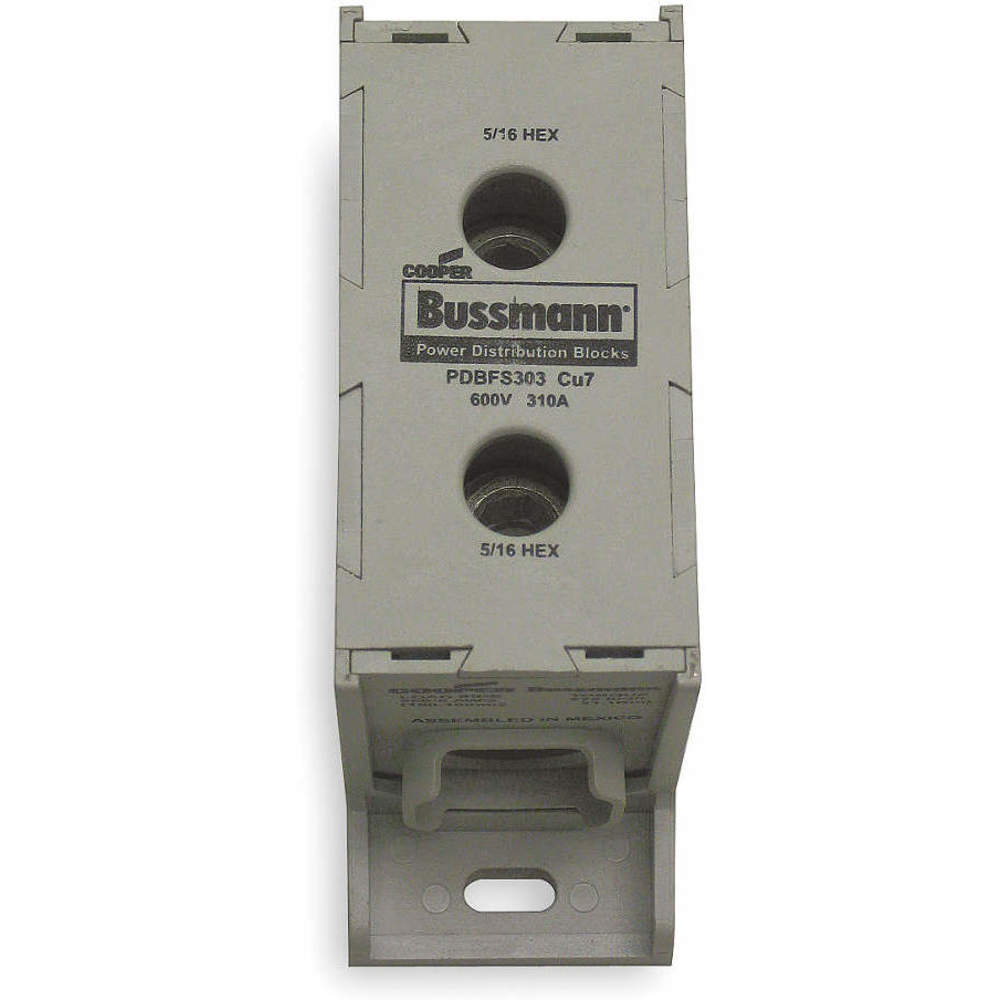

| E | PDBFS303 | 1 | 350 kcmil | 1 | 6 AWG | 310A | 5" | 1/2" | 1" | €211.21 | |

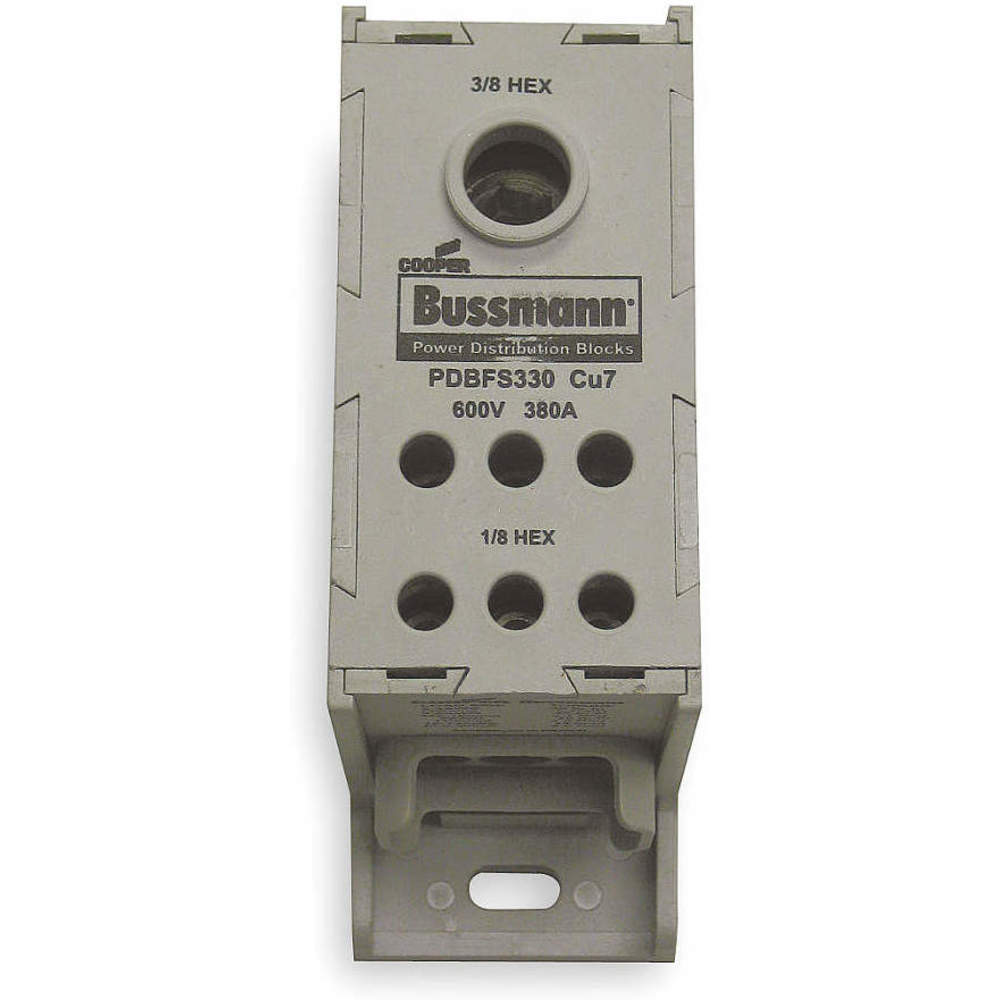

| F | PDBFS330 | 1 | 500 kcmil | 6 | 2 AWG | 380A | 4.63" | 1.58" | 2.98" | €263.94 | |

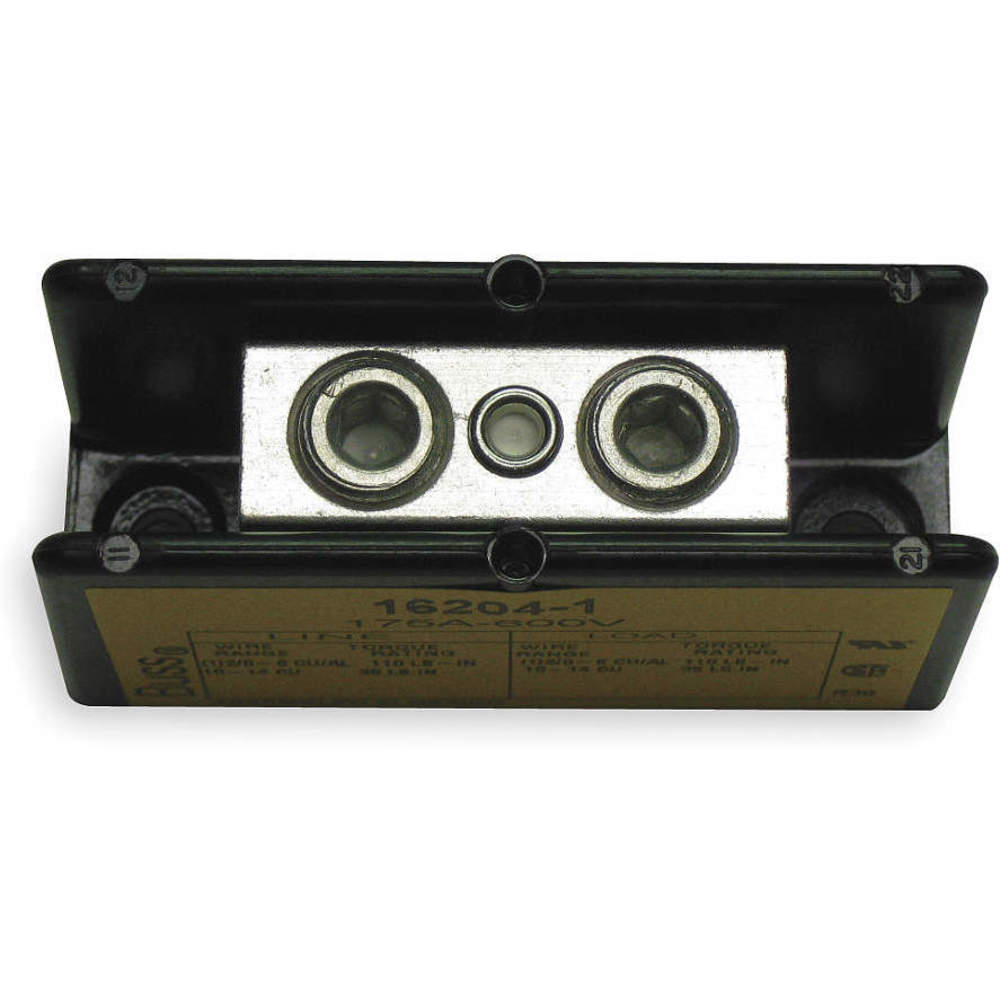

| G | 16204-1 | 1 | 2/0 AWG | 1 | 2/0 AWG | 175A | 2.81" | 1 2/5" | 1.71" | €48.98 | |
| H | 16303-1 | 1 | 350 kcmil | 1 | 350 kcmil | 310A | 3.32" | 1.98" | 3.32" | €220.22 | |

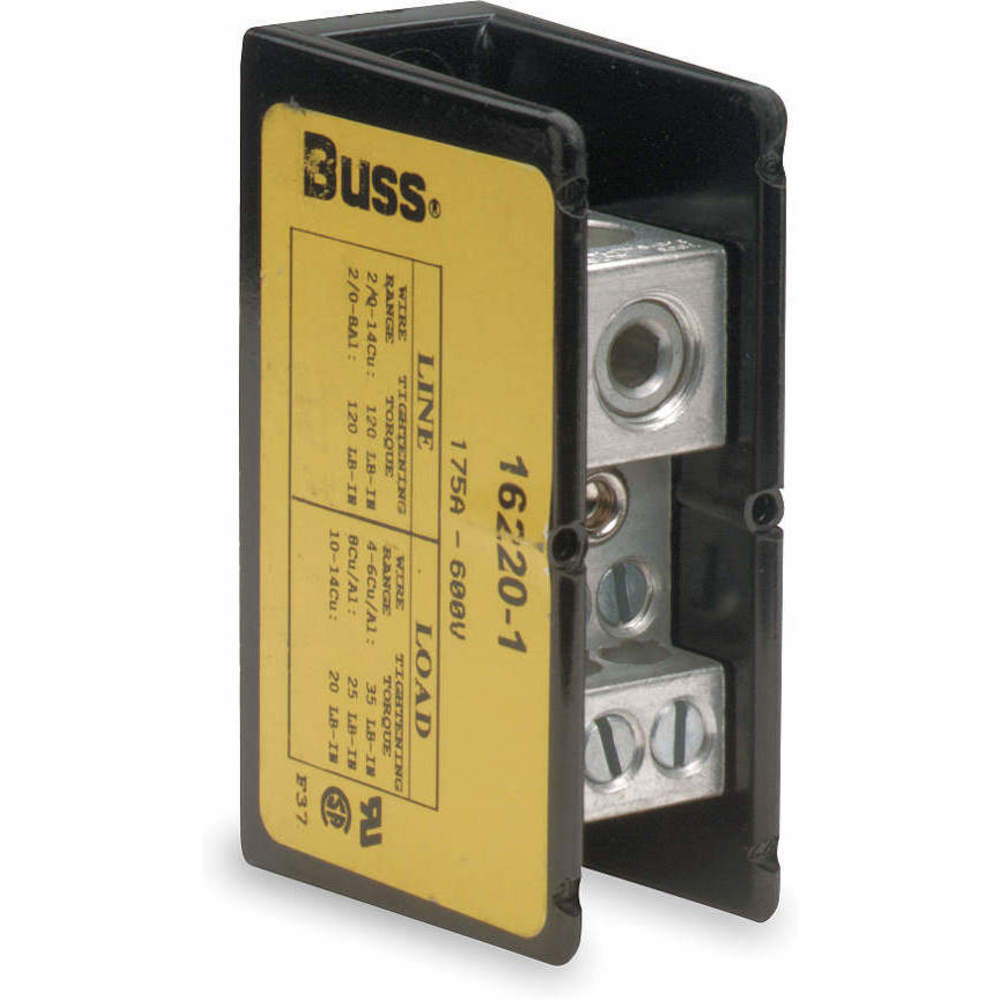

| I | 16220-1 | 1 | 2/0 AWG | 4 | 4 AWG | 175A | 3" | 1" | 2" | €76.37 | |
| J | 16323-1 | 1 | 350 kcmil | 6 | 4 AWG | 310A | 3.95" | 1.98" | 3.18" | €176.23 | |

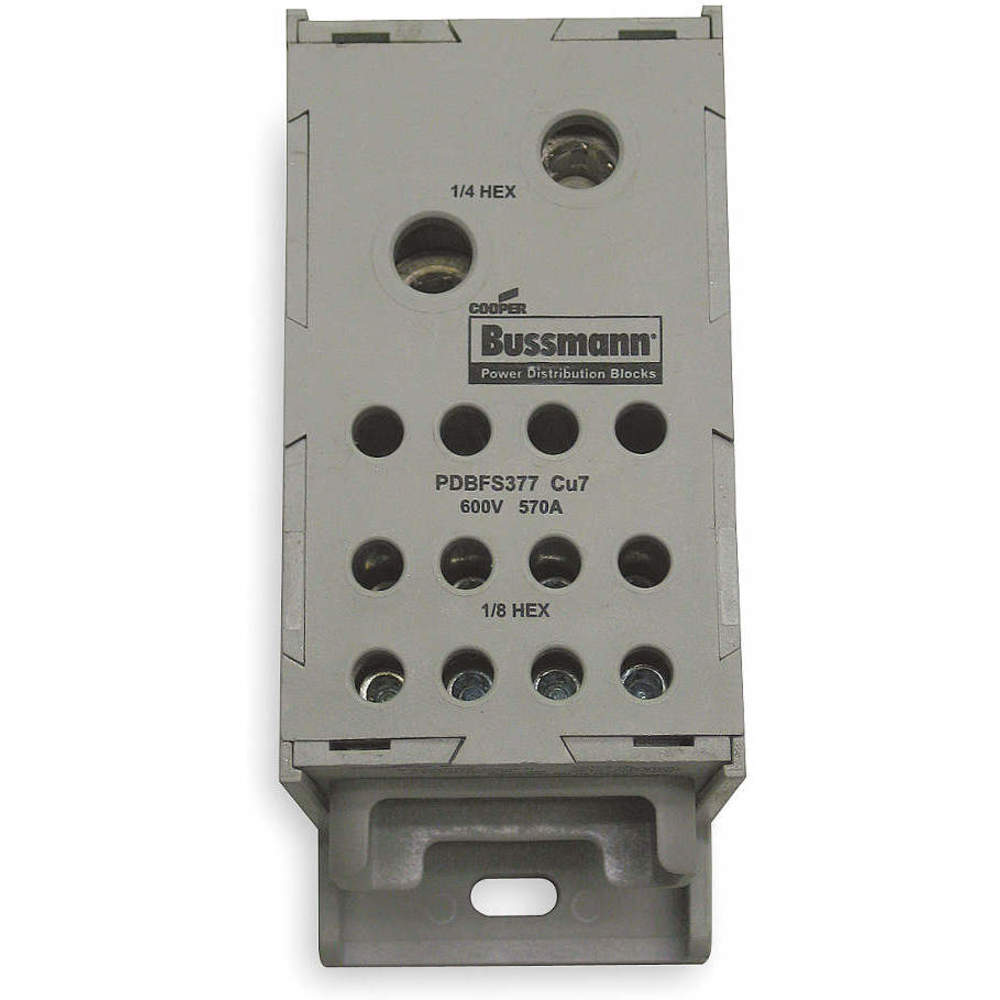

| K | PDBFS377 | 2 | 300 kcmil | 12 | 4 AWG | 570A | 4.6" | 1.86" | 2.94" | €246.61 | |

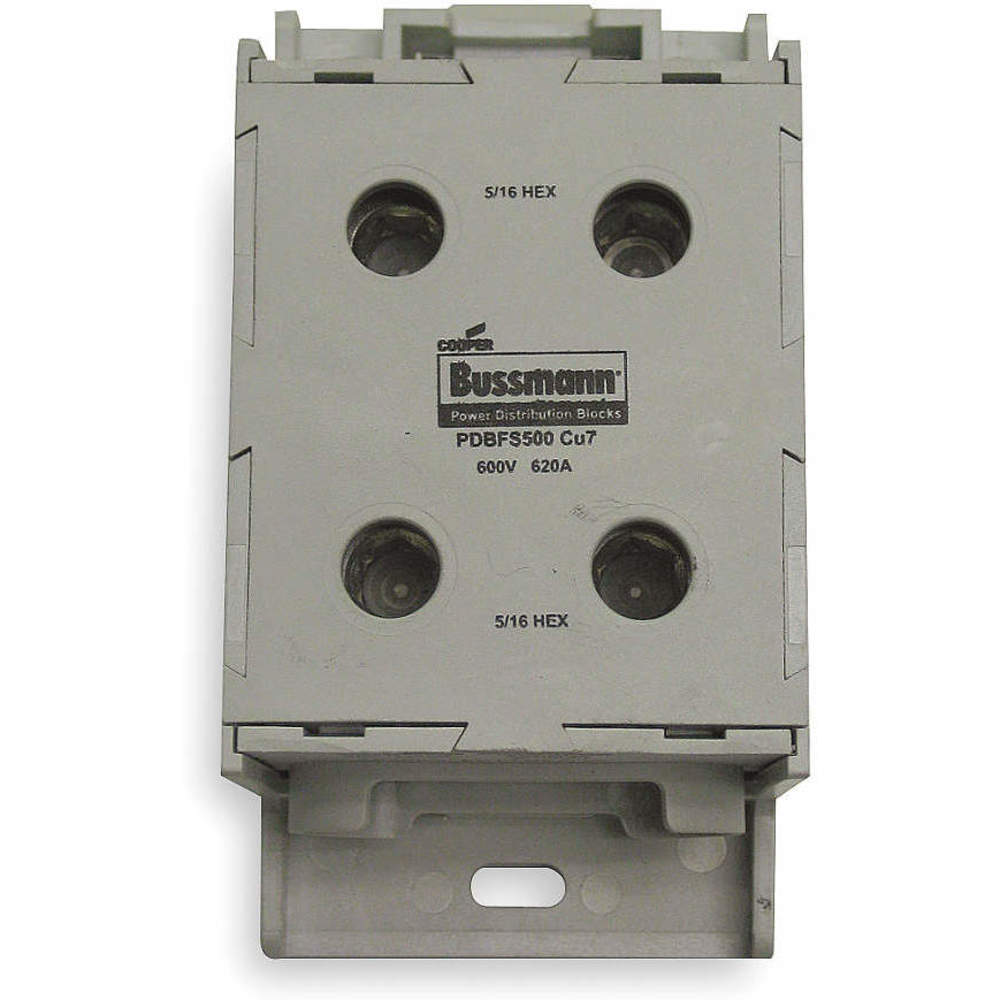

| L | PDBFS500 | 2 | 350 kcmil | 2 | 350 kcmil | 620A | 5" | 3" | 2.5" | €692.45 | |

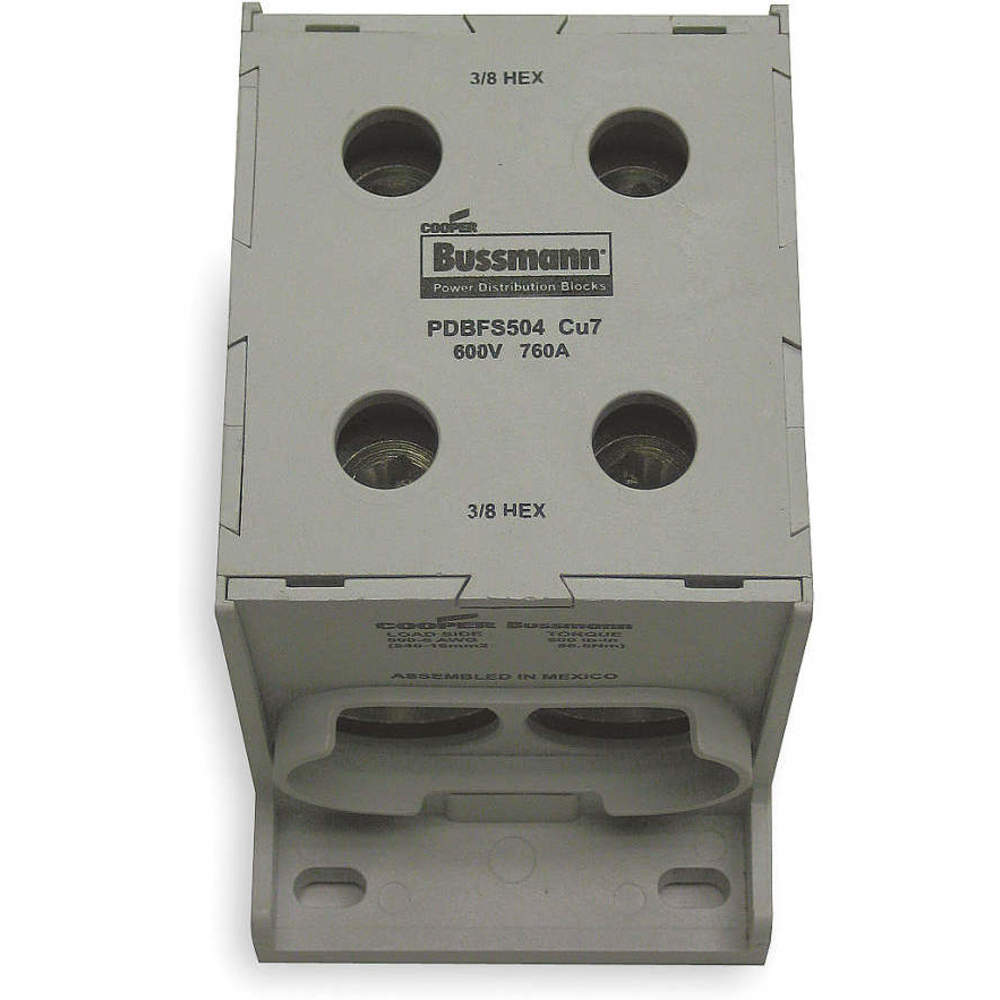

| M | PDBFS504 | 2 | 500 kcmil | 2 | 500 kcmil | 760A | 4.5" | 3" | 3" | €537.08 | |

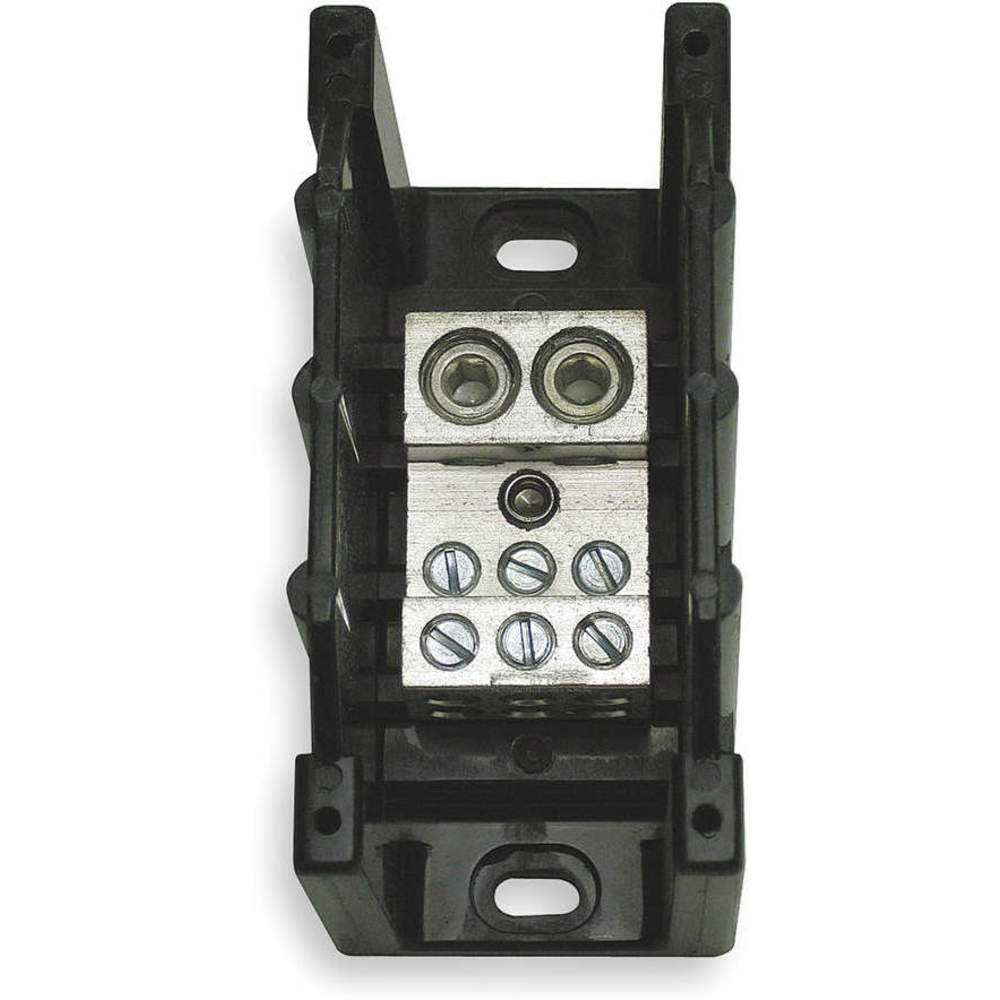

| N | 16325-1 | 2 | 2/0 AWG | 6 | 4 AWG | 350A | 3.94" | 1.97" | 3.19" | €200.56 | |
| O | 16500-1 | 2 | 350 kcmil | 2 | 350 kcmil | 620A | 5.43" | 5.74" | 2.89" | €267.04 |
Working Mechanism
- Attach the power source to the input terminal of the distribution block.
- Use the output terminals to connect and distribute power to various circuits or devices.
- Tighten terminals to ensure secure electrical connections.
Features
- They are designed with IP-20 finger-safe protection for enhanced safety in electrical applications.
- These Bussmann distribution blocks can handle voltages of 600VAC and 600VDC, ensuring compatibility with electrical systems.
- They offer a current rating of 310A for robust power distribution capabilities.
- These distribution blocks have tin-plated aluminium connectors for increased conductivity and corrosion resistance.
Frequently Asked Questions
How do I clean and maintain Bussmann distribution blocks?
- Disconnect power source.
- Carefully disconnect wires or cables.
- Inspect for damage or wear.
- Use compressed air to remove debris.
- Wipe with isopropyl alcohol and a cloth.
- Reconnect wires securely.
- Restore power.
- Perform regular maintenance checks.
What factors should I consider while choosing a distribution block?
- Determine the block's capacity to handle your current and future electrical loads.
- Ensure the block has the required number of poles for your application.
- Match the voltage rating with your system's voltage.
- Choose between DIN rail, panel or surface mount, depending on your installation.
- Ensure the block accommodates your wire sizes.
- Look for features like overcurrent protection or surge suppression.
- Confirm the block fits within your available space.
- Consider the block's suitability for your operating environment.
Does Raptor Supplies offer similar Bussmann distribution blocks with 3 pole configuration?
Yes, customers looking for 3-pole variants can opt for Bussmann 16X Series power distribution blocks. These distribution blocks offer a maximum current rating of 840
