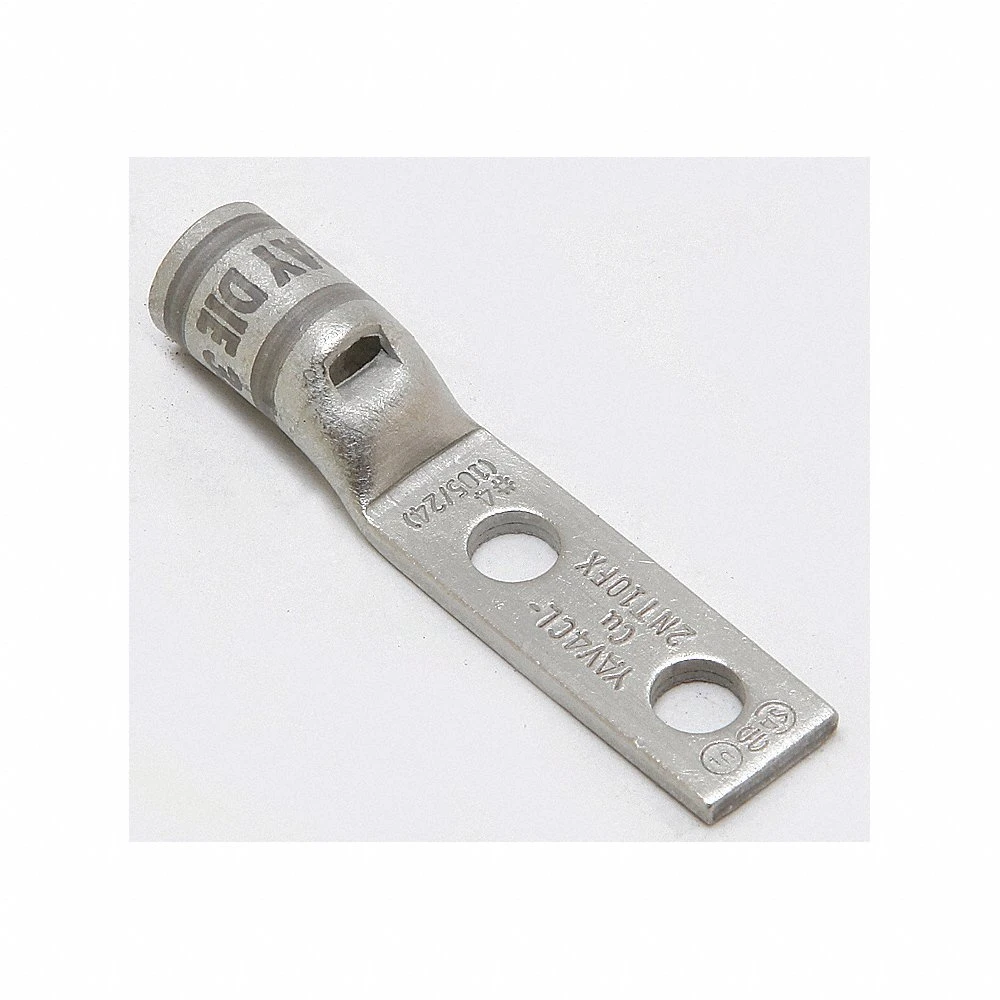

BURNDY YAV4CL2NT10FX 2 Hole Narrow Tongue Standard Barrel Cu Flex Lug
Item: AB6XGVModel: YAV4CL2NT10FXCross Ref: 22P093
7 In Stock
Ships within 2 days via
5.00% off
€33.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two Hole Narrow Tongue Standard Barrel CU Flex Lug |
| Barrel Length | Short |
| Barrel Outside Dia. | 0.38" |
| Barrel Size | Standard |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 4 AWG |
| Color Code | Gray |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 8 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 4 AWG |
| For Wire Size | 4 AWG |
| For Wire Type | Solid, Stranded |
| Hole Center To Center | 5/8" |
| Hole Center To End | 1/4" |
| Hole Size | 1/5" |
| Hole To Hole Center | 0.625" |
| Hole To Hole Center (in.) | 5/8 |
| Inspection Hole | Yes |
| Length | 1 24/25" |
| Length (straight Wireway) | 1 24/25" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 4 AWG |
| Min. For Stranded Copper Wire Size | 4 AWG |
| Mount | Bolt |
| Mounting | Bolt |
| No. Of Holes | 2 |
| Overall Length | 1.95" |
| Overall Width | 0.41" |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Product Datasheet | burndy-yav4cl2nt10fx.pdf |
| Rohs Compliant | Yes |
| Strip Length | 9/16" |
| Stud Size | #10 |
| Style | Narrow |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.52" |
| Tongue Style | Narrow |
| Tongue Width | 0.41" |
| Width | 0.55" |
| Wire Material | Copper |
Shipping Info:
| Ship height (cm) | 0.97 |
| Ship length (cm) | 4.95 |
| Ship width (cm) | 0.97 |
| HS code | 8535908020 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Stud Size | Color Code | Cable Size | Strip Length | Hole Size | Hole Center To End | Barrel Outside Dia. | Min. For Stranded Copper Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAV2CL2NT14FX | 1/4" | Brown | 2 AWG | 11/16" | 0.27" | 0.31" | 0.46" | 2 AWG | €39.29 | |
 |

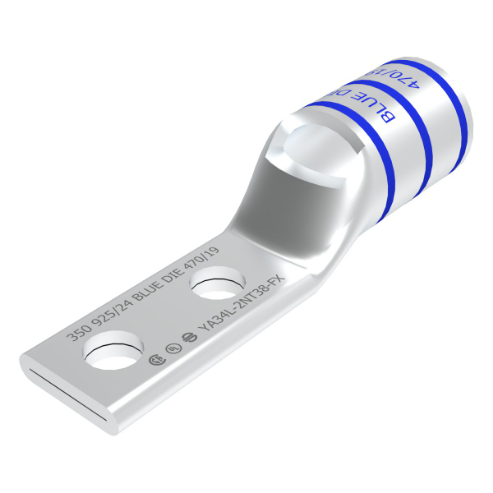

YA34L2NT38FX | 3/8" | Blue | 374 kcmil | 1 5/16" | 0.39" | 0.41" | 1.06" | 350 kcmil | €116.46 | |
|
YA38L2NT38FX | 3/8" | Pink | 535 kcmil | - | 0.39" | 1/2" | 1 1/4" | 500 kcmil | €182.35 | |
 |

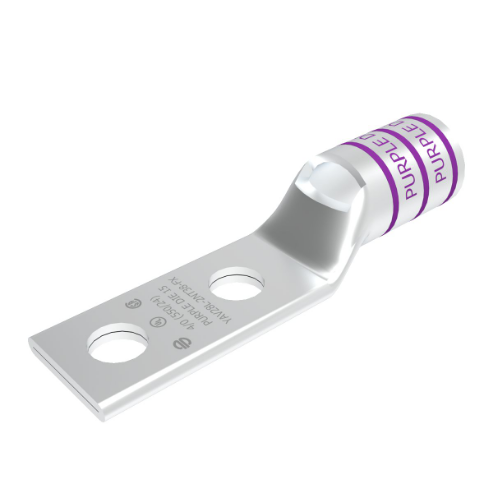

YAV28L2NT38FX | 3/8" | Purple | - | 1 1/16" | 0.39" | 0.41" | 0.77" | 4/0 AWG | €50.10 |
