BURNDY YA342TC38 Long Barrel Telecom Cu Lug 2-hole 500kcmil
Item: AB6RLXModel: YA342TC38Cross Ref: 22C379
7 In Stock
Ships within 2 days via
10.00% off
€105.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two Hole Long Barrel CU Lug |
| Barrel Od | 1.06" |
| Barrel Outside Diameter | 1.06" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 500 kcmil |
| Cable Size Code | 500 kcmil |
| Color Code | Brown |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 20 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 500 kcmil |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| For Stud Size | 3/8" |
| For Wire Size | 500 kcmil |
| For Wire Type | Stranded |
| Hole Center To Center | 1" |
| Hole Center To End | 0.41" |
| Hole Size | 2/5" |
| Hole To Hole Center (in.) | 1 |
| Hole To Hole Center (in.) | 1" |
| Inspection Hole | No |
| Length | 4.9" |
| Length (straight Wireway) | 4.9" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 500 kcmil |
| Number Of Holes | 2 |
| Overall Length | 4.9" |
| Overall Width | 1 14/25" |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Corrosion Resistant, Non-Insulated Construction |
| Strip Length | 2 5/16" |
| Stud Size | 3/8" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.84" |
| Tongue Style | Standard |
| Tongue Thickness | 0.23" |
| Tongue Width | 1.55" |
| Width | 1 14/25" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 3.96 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Hole Size | Hole To Hole Center (in.) | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6C2TC14 | Blue | 1/4" | 6 AWG | 0.31" | 0.27" | 0.625" | 2.65" | 1 3/16" | €28.27 | |
|
YA6C2TC38 | Blue | 3/8" | 6 AWG | 0.41" | 0.41" | 1" | 3.22" | 1 3/16" | €27.63 | |
 |
YA2C2TC38 | Brown | 3/8" | 2 AWG | 0.41" | 2/5" | 1" | 3.42" | 1 5/16" | €28.27 | |
 |

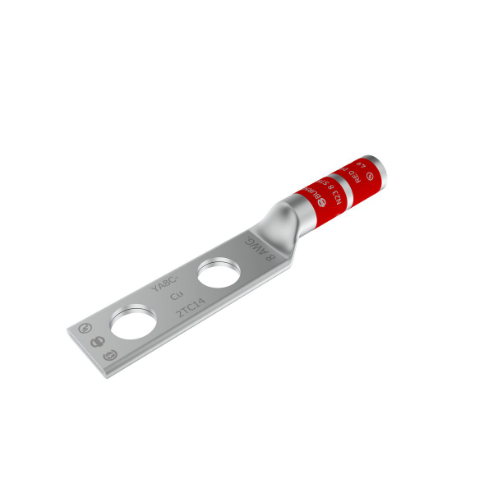

YA8C2TC14 | Red | 1/4" | 8 AWG | 0.31" | 0.27" | 0.625" | 2.33" | 7/8" | €19.28 | |
|
YA2C2TC14 | Brown | 1/4" | 2 AWG | 0.31" | 0.27" | 0.625" | 2.86" | 1 5/16" | €39.00 | |
 |
YA282TC38 | Purple | 3/8" | - | 0.41" | 2/5" | 1" | 3.99" | 1 11/16" | €57.52 | |
|
YA6C2TC14E2 | Blue | 1/4" | 6 AWG | 0.31" | 0.27" | 0.75" | 2.78" | 1 3/16" | €19.57 |
