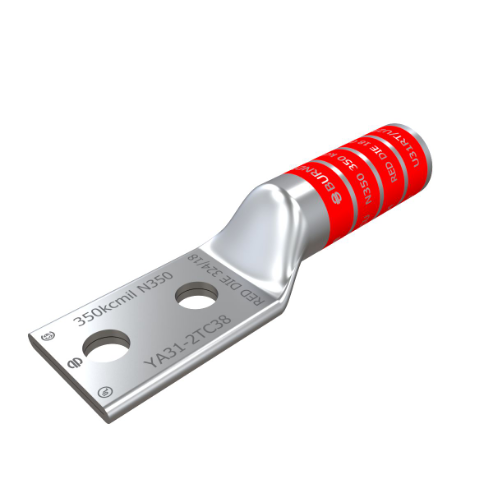

BURNDY YA312TC38 Long Barrel Telecom Cu Lug 2-hole 350kcmil
Item: AB6RLYModel: YA312TC38Cross Ref: 22C380
7 In Stock
Ships within 2 days via
5.00% off
€52.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Two Hole Long Barrel CU Lug |
| Barrel Outside Dia. | 22/25" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 350 kcmil |
| Cable Size Code | 350 kcmil |
| Color Code | Red |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 18 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 350 kcmil |
| For Stud Size | 3/8" |
| For Wire Size | 350 kcmil |
| For Wire Type | Stranded |
| Hole Center To Center | 1" |
| Hole Center To End | 0.41" |
| Hole Size | 2/5" |
| Hole To Hole Center | 1" |
| Hole To Hole Center (in.) | 1 |
| Inspection Hole | No |
| Length | 4.49" |
| Length (straight Wireway) | 4.49" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 35 kV AC |
| Max. Wire Size | 350 kcmil |
| Min. For Stranded Copper Wire Size | 350 kcmil |
| No. Of Holes | 2 |
| Overall Length | 4.49" |
| Overall Width | 1.29" |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Product Datasheet | burndy-ya312tc38.pdf |
| Rohs Compliant | Yes |
| Strip Length | 2 1/16" |
| Stud Size | 3/8" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Tongue Thickness | 0.18" |
| Tongue Width | 1.29" |
| Width | 1.29" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 11.4 |
| Ship width (cm) | 2.24 |
| HS code | 8535908020 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color Code | Stud Size | Strip Length | Cable Size | Hole Size | Barrel Size | Hole Center To End | Barrel Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6C2TC14 | Blue | 1/4" | 1 3/16" | 6 AWG | 0.27" | Long | 0.31" | 0.29" | €22.30 | |
|
YA6C2TC38 | Blue | 3/8" | 1 3/16" | 6 AWG | 0.41" | Long | 0.41" | 0.29" | €28.53 | |
 |
YA2C2TC38 | Brown | 3/8" | 1 5/16" | 2 AWG | 2/5" | Long | 0.41" | 0.42" | €26.49 | |
 |
YA8C2TC14 | Red | 1/4" | 7/8" | 8 AWG | 0.27" | Long | 0.31" | 0.27" | €19.89 | |
|
YA2C2TC14 | Brown | 1/4" | 1 5/16" | 2 AWG | 0.27" | Long | 0.31" | 0.42" | €38.61 | |
 |
YA282TC38 | Purple | 3/8" | 1 11/16" | - | 2/5" | Long | 0.41" | 0.69" | €43.89 | |
|
YA6C2TC14E2 | Blue | 1/4" | 1 3/16" | 6 AWG | 0.27" | Long | 0.31" | 0.29" | €19.65 |
