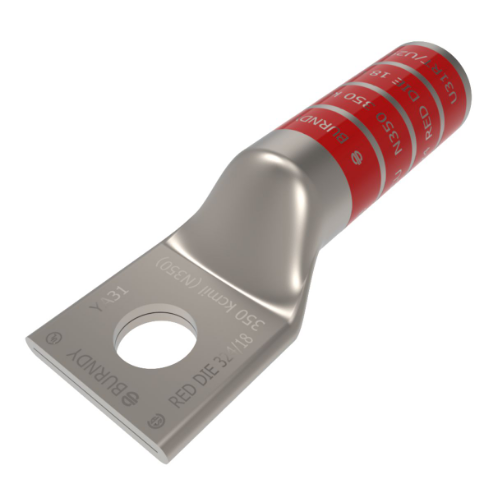

BURNDY YA31 Long Barrel Cu Lug 1 Hole 350 Kcmil
Item: AB6RKTModel: YA31Cross Ref: 22C352
7 In Stock
95 mm
Ships within 2 days via
10.00% off
€31.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Hole Long Barrel CU Lug |
| Barrel Od | 22/25" |
| Barrel Outside Diameter | 22/25" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 350 kcmil |
| Cable Size Code | 350 kcmil |
| Color Code | Red |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 18 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 350 kcmil |
| For Stranded Copper Wire Size - Minimum | 350 kcmil |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 0.53" |
| Hole Size | 0.53" |
| Inspection Hole | No |
| Length | 3.73" |
| Length (straight Wireway) | 3.73" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 350 kcmil |
| Number Of Holes | 1 |
| Overall Length | 3.73" |
| Overall Width | 1.29" |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Non-Insulated Construction |
| Strip Length | 2 1/16" |
| Stud Size | 1/2" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.08" |
| Tongue Style | Standard |
| Tongue Thickness | 0.18" |
| Tongue Width | 1.29" |
| Width | 1.29" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 9.47 |
| Ship width (cm) | 3.28 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Details:
- Blackburn CTL350L12, T&B 54915BE
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Number Of Holes | Hole Size | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

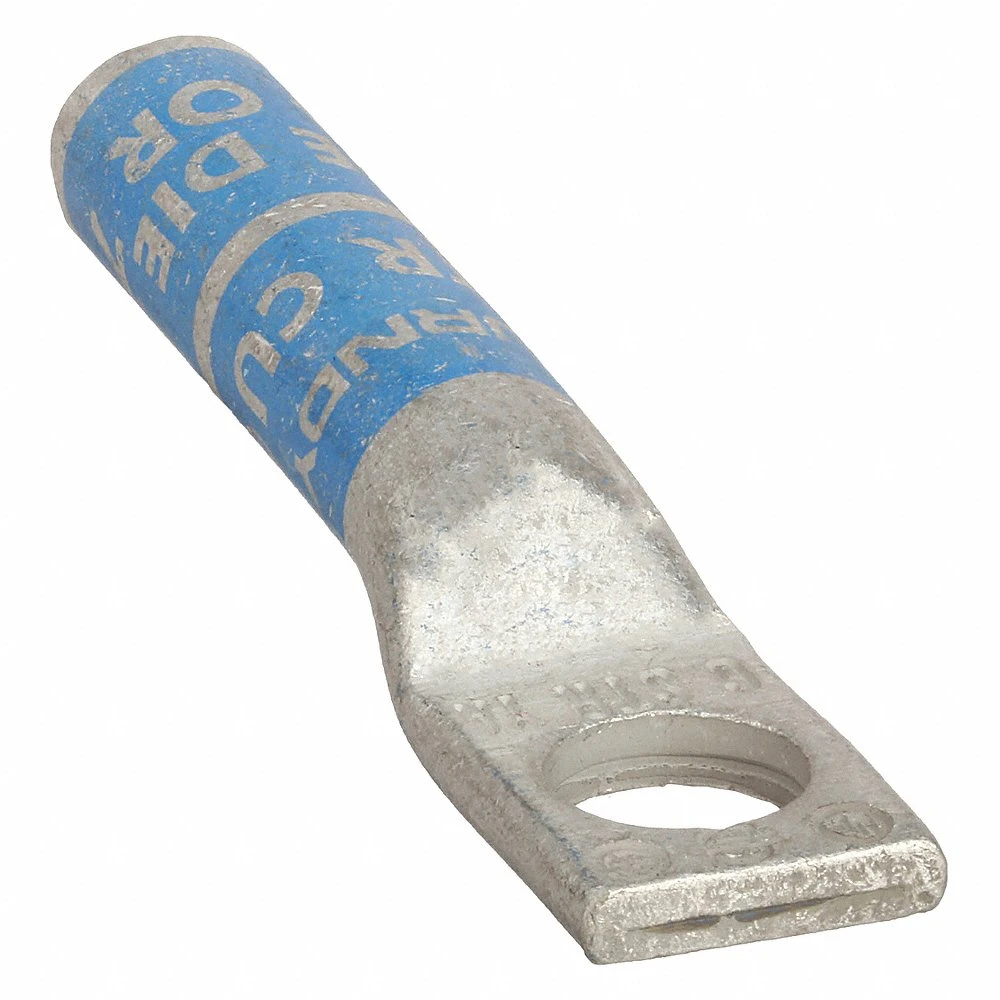

YA6C | Blue | 1/4" | 6 AWG | 1/4" | 1 | 0.27" | 1.81" | 1 3/16" | €8.80 | |
 |
YA28 | Purple | 1/2" | - | 0.53" | 1 | 0.53" | 3.23" | 1 9/16" | €34.76 | |
 |

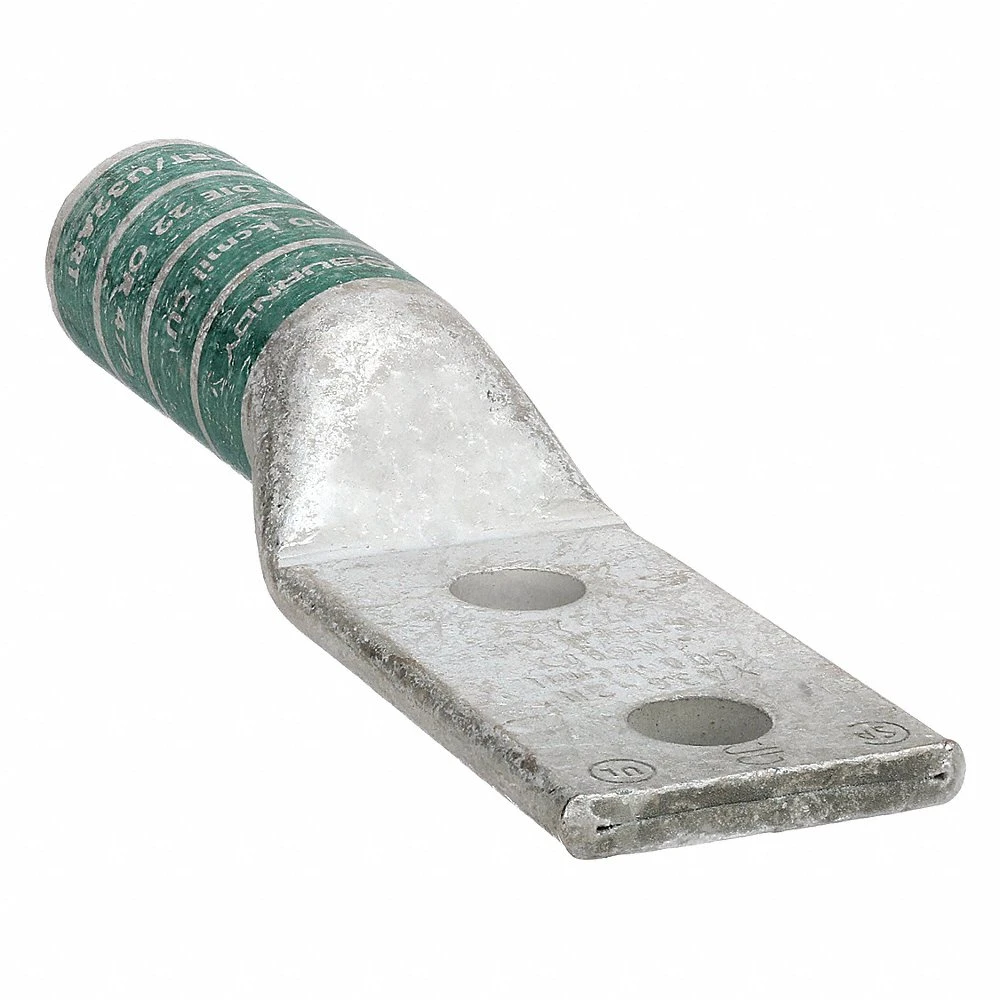

YA362N | Green | 1/2" | 600 kcmil | 0.63" | 2 | 14/25" | - | - | €130.44 | |
 |

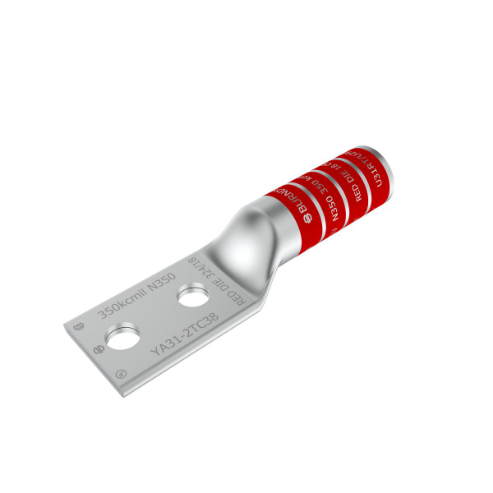

YA312N | Red | 1/2" | 350 kcmil | 0.62" | 2 | 14/25" | 5.69" | 2 1/16" | €59.23 | |
 |
YA262N | Black | 1/2" | - | 0.63" | 2 | 14/25" | 4.97" | 1 9/16" | €36.63 | |
 |
YA2C | Brown | 5/16" | 2 AWG | 0.34" | 1 | 0.33" | 2.29" | 1 5/16" | €19.12 | |
 |

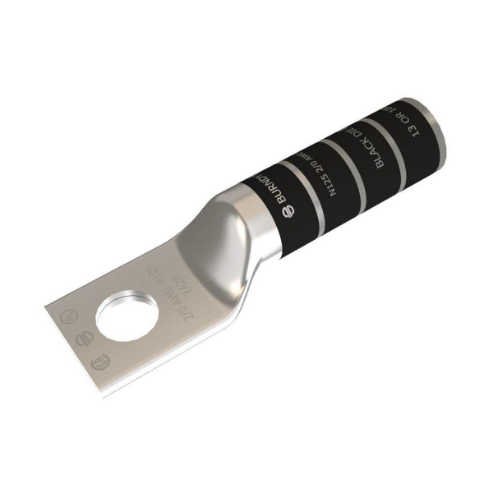

YA26 | Black | 3/8" | - | 0.41" | 1 | 2/5" | 2.77" | 1 9/16" | €20.36 |
