BURNDY YA28 Long Barrel Cu Lug 1 Hole 4/0 Awg
Item: AB6RJZModel: YA28Cross Ref: 22C335
7 In Stock
82 mm
Ships within 2 days via
10.00% off
€31.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Hole Long Barrel CU Lug |
| Barrel Od | 0.62" |
| Barrel Outside Diameter | 0.62" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Color Code | Purple |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 15 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 0.53" |
| Hole Size | 0.53" |
| Inspection Hole | No |
| Length | 3.26" |
| Length (straight Wireway) | 3.26" |
| Material | Copper |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 4/0 AWG |
| Number Of Holes | 1 |
| Overall Length | 3.23" |
| Overall Width | 1.02" |
| Peep Hole | No |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Special Features | Non-Insulated Construction |
| Strip Length | 1 9/16" |
| Stud Size | 1/2" |
| Style | Standard |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.08" |
| Tongue Style | Standard |
| Tongue Thickness | 0.14" |
| Tongue Width | 1.02" |
| Width | 1.02" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.57 |
| Ship length (cm) | 8.2 |
| Ship width (cm) | 2.59 |
| HS code | 8535908020 |
| Country of Origin | US |
Product Details:
Burndy YA28 lug compression connector is designed to slide over naked wires to provide controllable & reliable connections in electrical circuits. It is ideal for extreme temperatures, current surges and more applications.
Features:
- Burndy YA28 lug compression connector is made of copper, offering high conductivity and features a long, straight barrel connector body for easy connections.
- This one-hole lug has electro-tin plating to withstand overcurrent and harsh weather scenarios.
- It has a peephole ensuring electrical connections that are securely and correctly made.
- This unit has an internal chamfered barrel style for high-stress applications.
Compatible Accessories:
- Burndy Compression Connector Hardware Kits: These hardware kits fit the brand's one-hole lug compression connectors for safe connections in electrical circuits.
Standards and Approvals:
- RoHS
- UL
- CSA
Frequently Asked Questions:
Q. What wire sizes can be accommodated with this lug connector?
A. It can accommodate 4/0 AWG wires.
Q. What is the difference between one-hole and two-hole lug connectors?
A.
- One-hole lugs: They are ideal for standard use.
- Two-hole lugs: They are intended for bus bar applications requiring two bolts, preventing lug rotation.
Q. How to install the long barrel?
A.
- Select the appropriate connector based on wire construction, material and size.
- Strip the insulation to the appropriate wire strip length.
- Wire brush the bare conductor to eliminate any oxides. However, do not wire brush the tin-plated connectors.
- Insert the conductor into the barrel for the full length.
- Apply proper number of crimps.
- Once all crimps have been completed, the connection can be easily inspected for proper installation.
Q. What is the colour code of Burndy lugs?
A.
- Red: #8AWG, 350 kcmil
- Blue: #6 AWG, #5 AWG, 400 kcmil
- Grey: #4 AWG, 450 kcmil, 1750 kcmil
- White: #3 Str, #2 Sol, 300 kcmil, 1000 kcmil
- Brown: #2 AWG, 500 kcmil, 2000 kcmil
- Green: #1 AWG, 600 kcmil, 1500 kcmil
- Black: 2/0 AWG, 750 kcmil
- Orange: 3/0 AWG, 650 kcmil, 800 kcmil, 1300 kcmil
- Yellow 16: 250 kcmil, 550 kcmil, 1250 kcmil
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Hole Center To End | Number Of Holes | Hole Size | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YA6C | Blue | 1/4" | 6 AWG | 1/4" | 1 | 0.27" | 1.81" | 1 3/16" | €8.80 | |
 |

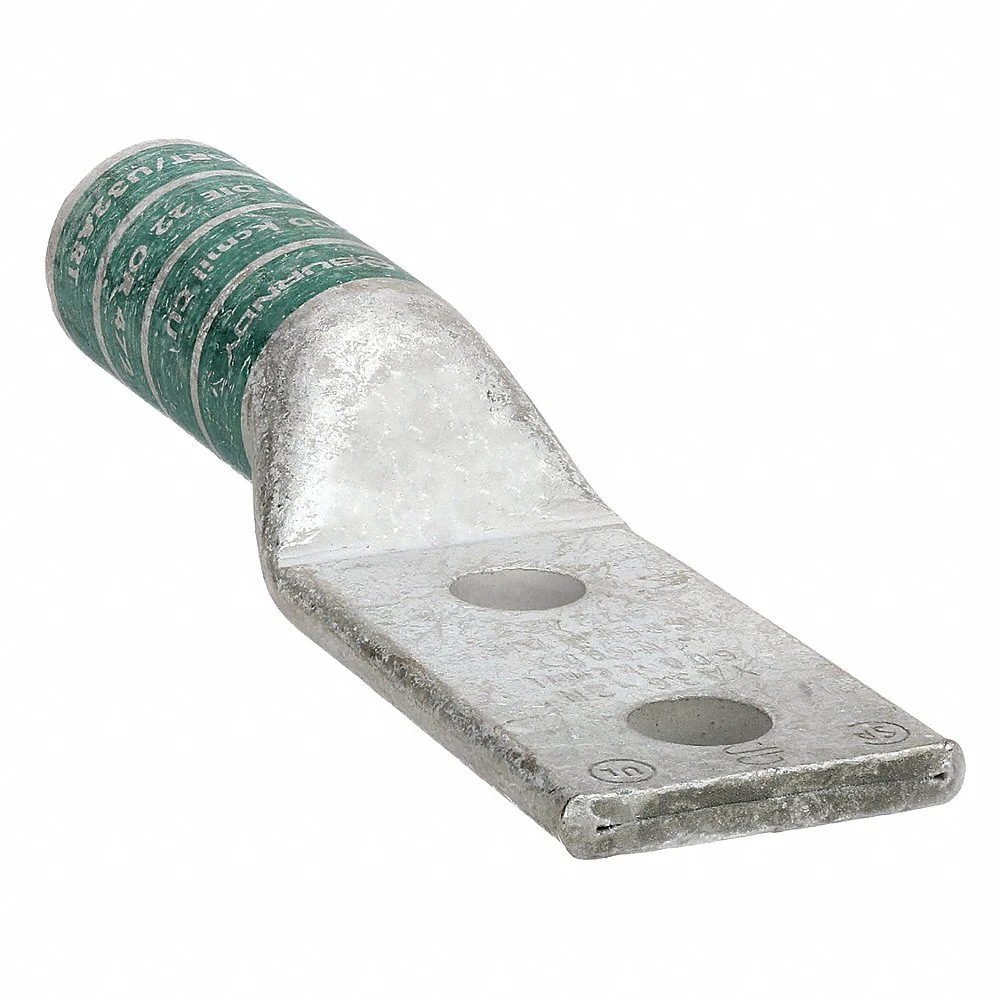

YA362N | Green | 1/2" | 600 kcmil | 0.63" | 2 | 14/25" | - | - | €130.44 | |
 |

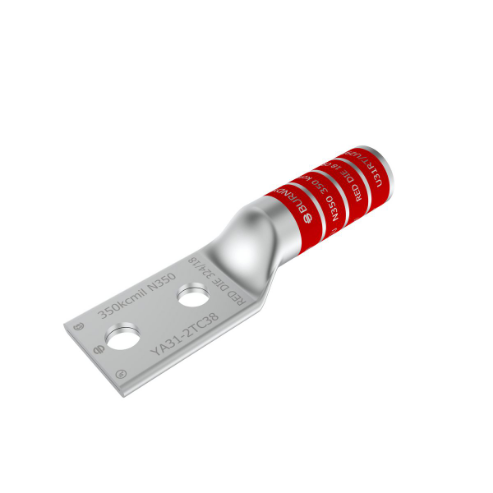

YA312N | Red | 1/2" | 350 kcmil | 0.62" | 2 | 14/25" | 5.69" | 2 1/16" | €59.23 | |
 |
YA262N | Black | 1/2" | - | 0.63" | 2 | 14/25" | 4.97" | 1 9/16" | €36.63 | |
 |
YA2C | Brown | 5/16" | 2 AWG | 0.34" | 1 | 0.33" | 2.29" | 1 5/16" | €19.12 | |
 |

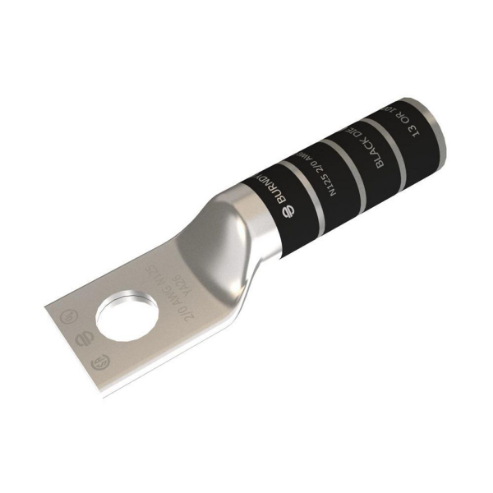

YA26 | Black | 3/8" | - | 0.41" | 1 | 2/5" | 2.77" | 1 9/16" | €20.36 | |
 |

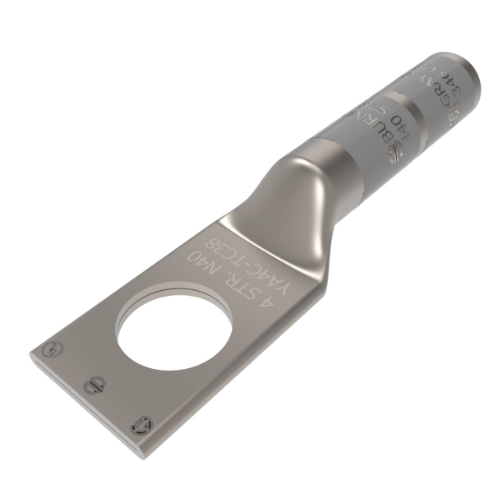

YA4C | Gray | 1/4" | 4 AWG | 1/4" | 1 | 0.27" | - | - | €8.65 |
