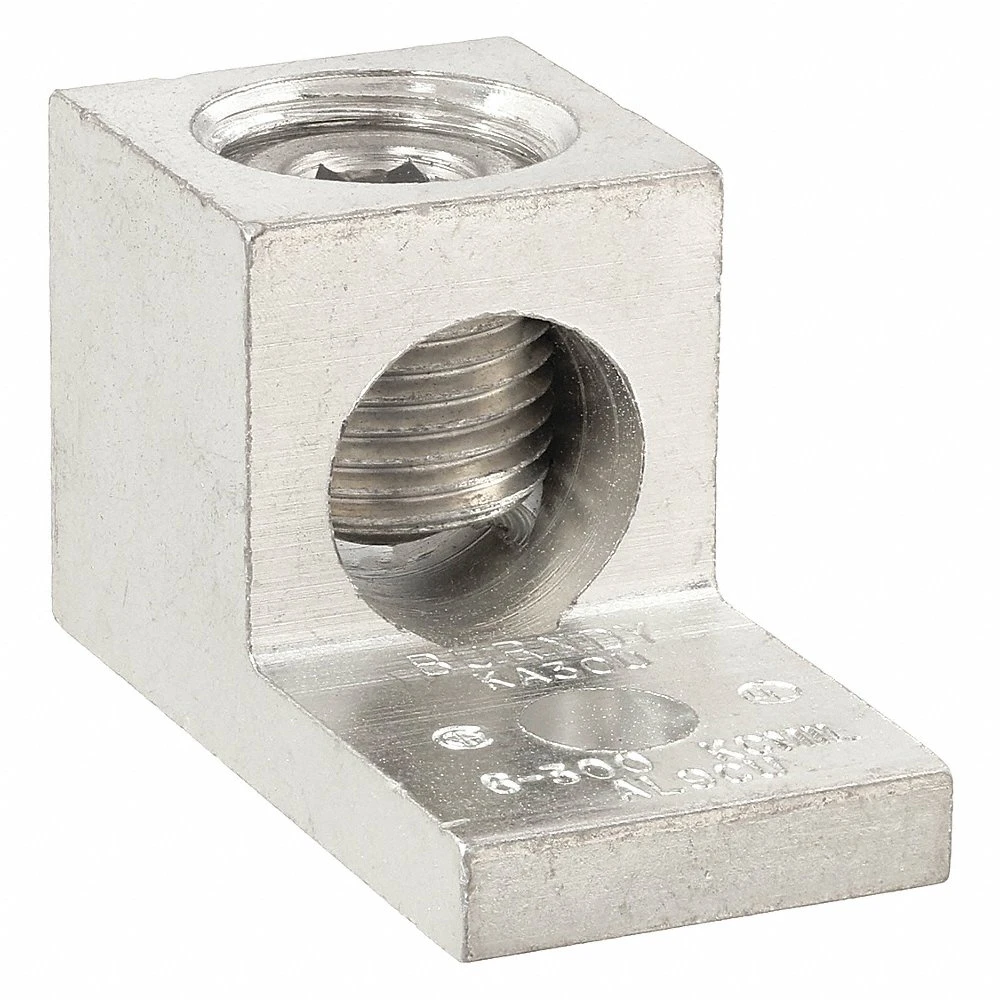

BURNDY KA30U One Conductor Lug 6awg 2in
Item: AB6RDKModel: KA30UCross Ref: 22C181
7 In Stock
Ships within 2 days via
5.00% off
€13.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Conductor Lug |
| Body Material | Aluminum |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Lug |
| Contact Finish | Tin |
| Finish | TiN Coating |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 300 kcmil |
| For Stud Size | 5/16" |
| Head Style | Hex |
| Head Type | Hex |
| Hole Dia. | 0.33" |
| Hole Spacing | Not Applicable |
| Length | 2" |
| Length (straight Wireway) | 2" |
| Material | Aluminum |
| Max. Conductor Size | 300 kcmil |
| Max. For Stranded Copper Wire Size | 300 kcmil |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 600V |
| Min. Conductor Size | 6 AWG |
| Min. For Stranded Copper Wire Size | 6 AWG |
| No. Of Conductors | 1 |
| No. Of Holes | 1 |
| No. Of Terminations | 1 |
| Overall Depth | 1 1/16" |
| Overall Length | 2" |
| Overall Width | 1.14" |
| Product Datasheet | burndy-ka30u.pdf |
| Stud Size | 5/16" |
| Terminal Material | Aluminium |
| Tongue Length | 0.94" |
| Tongue Thickness | 1/4" |
| Tongue Width | 1.02" |
| Torque | 275 lbs.-in. |
| Type | Commercial |
| Width | 1.14" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 2.38 |
| Ship width (cm) | 2.9 |
| HS code | 8535908040 |
| Country of Origin | MX |
Product Details:
- Blackburn ADR30, T&B 62215
Documentation:
Product Variants
| Product | Model | No. Of Holes | Stud Size | Tongue Width | Min. For Stranded Copper Wire Size | Length (straight Wireway) | Hole Dia. | Hole Spacing | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KA6U | 1 | 1/4" | 1/2" | 14 AWG | 1.06" | 0.27" | Not Applicable | 1/2" | €4.25 | |
 |
KA2U | 1 | 1/4" | 0.51" | 14 AWG | 1 4/25" | 0.27" | Not Applicable | 1/2" | €5.70 | |
 |
KA29U | 1 | 5/16" | 1.02" | 6 AWG | 2" | 0.33" | Not Applicable | 1 1/16" | €22.98 | |
 |
KA25U | 1 | 1/4" | 0.63" | 14 AWG | 1 1/2" | 0.27" | Not Applicable | 5/8" | €6.81 | |
 |
KA26U | 1 | 1/4" | 16/25" | 14 AWG | 1.47" | 0.27" | Not Applicable | 5/8" | €7.94 | |
 |
KA31U | 1 | 3/8" | 1.14" | 6 AWG | 2 1/4" | 0.42" | Not Applicable | 1 1/8" | €21.62 | |
 |
KA34U | 1 | 3/8" | 1 13/25" | 4 AWG | 2.81" | 0.42" | Not Applicable | 1 9/16" | €40.23 |
