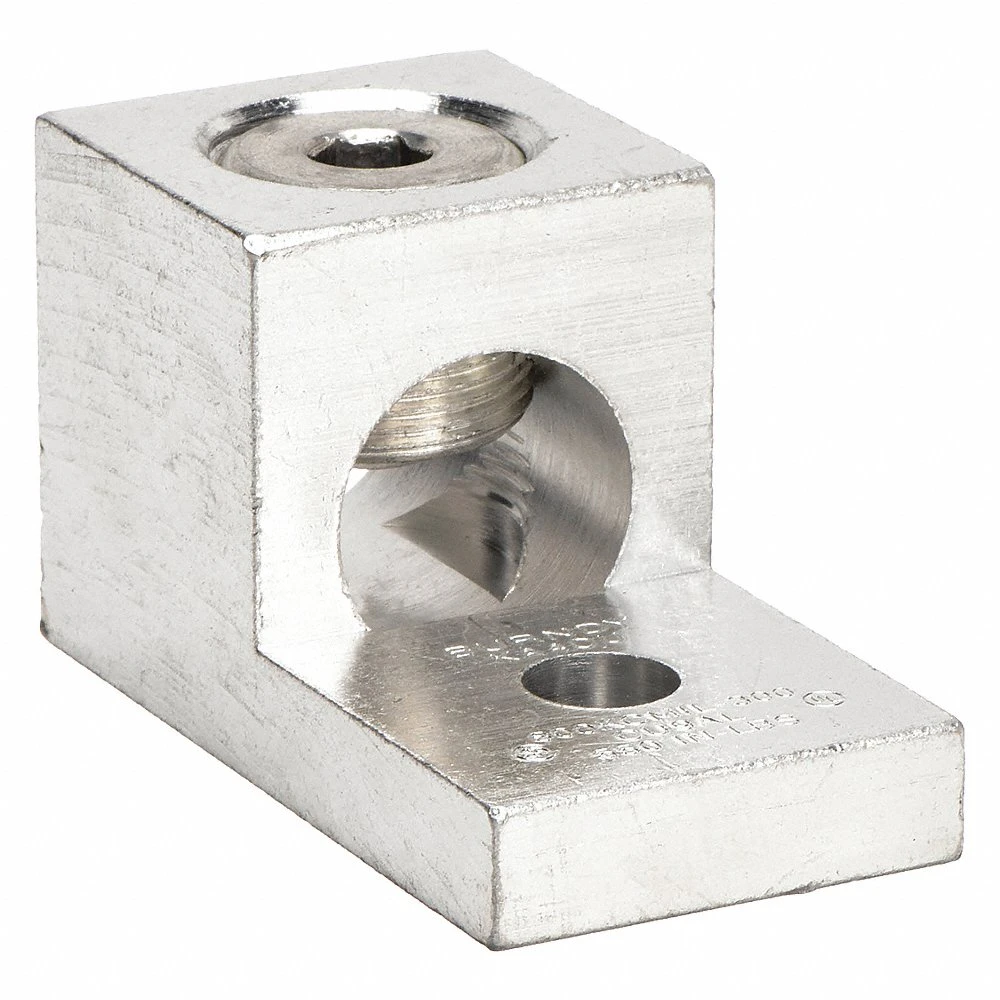

BURNDY KA40U One Conductor Lug 300 Kcmil
Item: AB6RDJModel: KA40UCross Ref: 22C180
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | One Conductor Lug |
| Body Material | Aluminium |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Lug |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 800 kcmil |
| For Stranded Copper Wire Size - Maximum | 800 kcmil |
| For Stranded Copper Wire Size - Minimum | 300 kcmil |
| For Stud Size | 1/2" |
| Head Style | Hex |
| Head Type | Hex |
| Hole Dia. | 0.66" |
| Hole Diameter | 0.66" |
| Hole Spacing | Not Applicable |
| Length | 3 1/2" |
| Length (straight Wireway) | 3 1/2" |
| Material | Aluminium |
| Max. Conductor Size | 800 kcmil |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Min. Conductor Size | 300 kcmil |
| No. Of Conductors | 1 |
| Number Of Conductors | 1 |
| Number Of Holes | 1 |
| Number Of Terminations | 1 |
| Overall Depth | 1 13/16" |
| Overall Length | 3.5" |
| Overall Width | 1.95" |
| Screw Material | Aluminum |
| Special Features | Providing Low Contact Resistance |
| Stud Size | 1/2" |
| Terminal Material | Aluminium |
| Tongue Length | 1.85" |
| Tongue Width | 1.77" |
| Torque | 550 lbs.-in. |
| Type | Commercial |
| Width | 1.95" |
| Wire Material | Copper |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 4.95 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 4.45 |
| HS code | 8535908040 |
| Country of Origin | US |
Product Details:
- Blackburn ADR80, T&B 62223
Product Variants
| Product | Model | Stud Size | Material | Number Of Holes | Body Material | Overall Length | Head Style | Connector Type | Number Of Conductors | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KA36U | 3/8" | Aluminium | 1 | Aluminium | 3.19" | Hex | Lug | 1 | €57.15 | |
 |
KA36U2N | 1/2" | Aluminium | 2 | Aluminium | 4.69" | Hex | Lug | 1 | €75.65 | |
 |
KA40U2N | 1/2" | Aluminium | 2 | Aluminium | 4.75" | Hex | Lug | 1 | €88.80 | |
 |
KA44U2N | 1/2" | Aluminum | 2 | Aluminum | 4 3/4" | Hex | Lug | 1 | €113.64 | |
 |
KA6U | 1/4" | Aluminium | 1 | Aluminium | 1.06" | Slotted | Lug | 1 | €4.94 | |
 |
KA2U | 1/4" | Aluminium | 1 | Aluminium | 1.16" | Slotted | Lug | 1 | €6.83 | |
 |
KA29U | 5/16" | Aluminium | 1 | Aluminium | 2" | Hex | Lug | 1 | €22.24 |
