BURNDY BIBS43 Multi Tap Connector 14awg 1.51in
Item: AB6RFKModel: BIBS43Cross Ref: 22C248
7 In Stock
Ships within 2 days via
10.00% off
€46.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Multi Tap Connector |
| Body Finish | Plastisol |
| Body Material | Aluminium |
| Color | Clear |
| Compatible With Product Type | Code Conductor |
| Connector Type | Single Sided Entry |
| Current | 85A |
| Direct Burial Rated | No |
| Finish | Unplated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 4 AWG |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Head Style | Hex |
| Head Type | Hex |
| Hex Size | 1/8" |
| Insulation | Insulated |
| Insulation Material | Plastisol |
| Length | 1.51" |
| Length (straight Wireway) | 1.51" |
| Max. Conductor Size | 4 AWG |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Min. Conductor Size | 14 AWG |
| Mounting Hole Size | Not Applicable |
| No. Of Ports | 3 |
| Number Of Ports | 3 |
| Overall Length | 1.51" |
| Overall Width | 1 1/4" |
| Rohs Compliant | Yes |
| Screw Finish | Tin Plated Steel |
| Screw Material | Steel |
| Screw Size | 1/4" |
| Special Features | Insulated |
| Strip Length | 5/8" |
| Stud Size | 1/8" |
| Tap Shape | L |
| Terminal Material | Aluminium |
| Torque | 45 lbs.-in. |
| Width | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 3.84 |
| Ship width (cm) | 3.18 |
| HS code | 8535908040 |
| Country of Origin | US |
Product Variants
| Model | Stud Size | Overall Length | Number Of Ports | Body Material | Head Style | Screw Size | Color | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

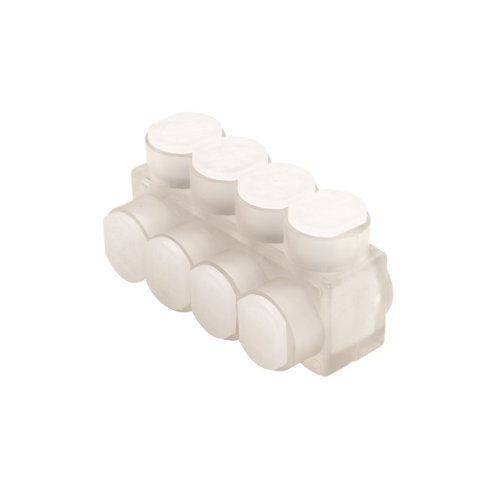

| BIBS44 | 0.312" | 1.95" | 4 | Aluminium | Hex | 1/4" | Clear | - | €60.06 | |
| BIBS6003 | - | 14/25" | 3 | Aluminium | - | - | - | - | - | RFQ
|
| BIBS45 | - | 2.39" | 5 | Aluminium | - | 1/4" | - | 8.26" | - | RFQ
|
| BIBS60010 | - | 3" | 10 | Aluminium | - | - | - | - | - | RFQ
|
| BIBS46 | - | 2.83" | 6 | Aluminium | - | 1/4" | - | 8.26" | - | RFQ
|
| BIBS3506 | - | 5.86" | 6 | Aluminium | - | - | - | - | - | RFQ
|
| BIBS3504 | - | 0.62" | 4 | Aluminium | - | - | - | - | - | RFQ
|
