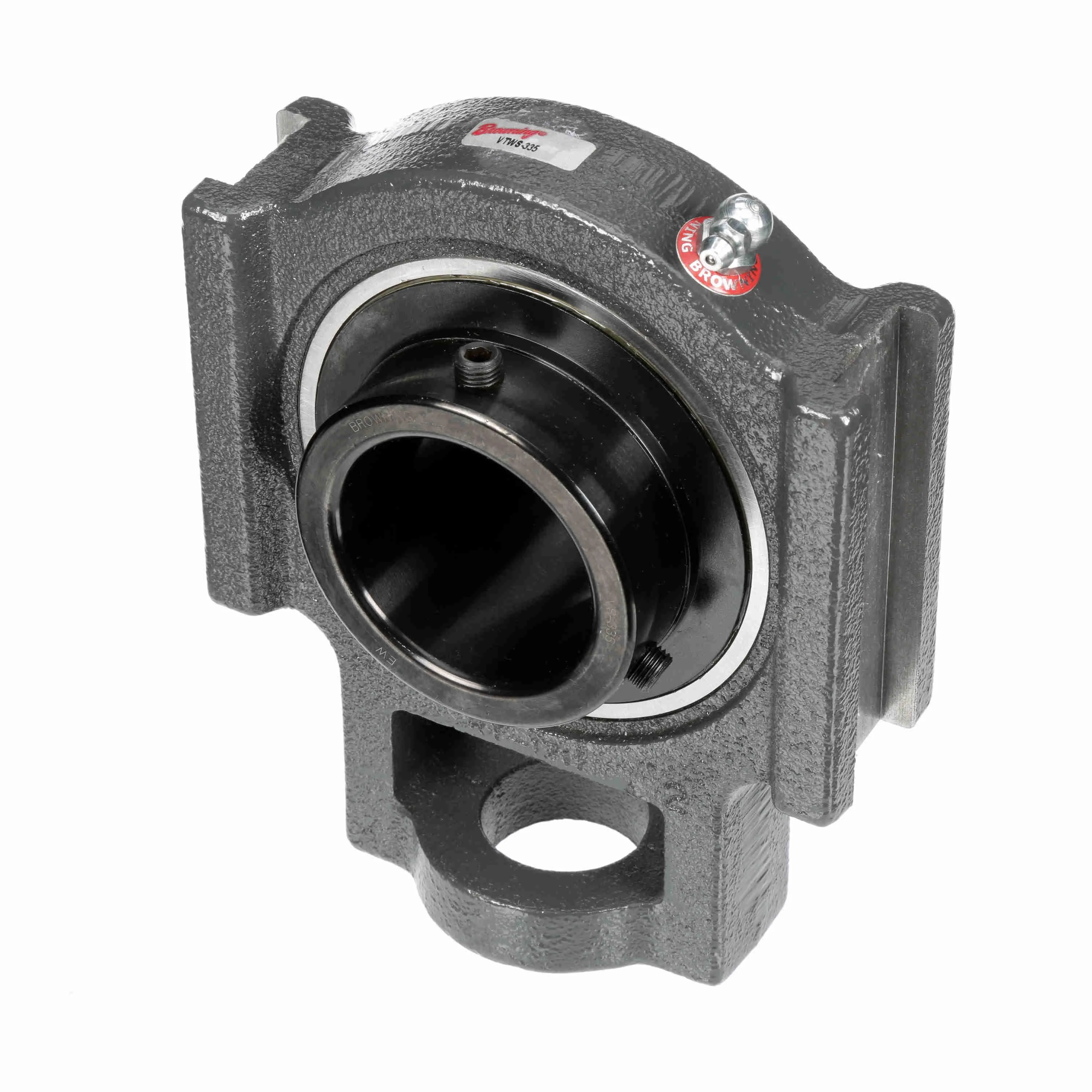

BROWNING VTWS-335 767512 Mounted Cast Iron Wide Slot Take Up Ball Bearing
Get it by Tuesday, Aug 18
€319.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Steel |
| Bearing Type | Take Up |
| Bore Shape | Straight |
| Bore Size - Inch | 2.188" |
| Centerline To Front Face | 1.563" |
| Compatible Frame Number | 1SF10, 3SF16, 6SF16, 9SF16, 1SF10, 3SF16, 6SF16, 9SF16 |
| Duty Series | Medium |
| Duty Type | Medium Duty |
| Dynamic Radial Load Capacity | 11789 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Finish, Coating | Gray |
| Height | 5 3/4" |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 2 1/2" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert No. | VS-335 |
| Inside Ring Outside Dia. | 2.984" |
| Length | 7 1/4" |
| Load Capacity | 11789 Lbs. Dynamic, 8150 Lbs. Static |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Max. Speed | 2500 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Length | 7 1/4" |
| Replacement Bearing | VE-237 |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Series | VTWS Series |
| Shaft Dia. | 2 3/16" |
| Slot Spacing | 5.125 |
| Suitable For Use With | 18SF39, 9SF39, 12SF39 Frames |
| Type Of Bearing | Ball Bearing |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 4.19 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bearing Material | Bore Dia. | Housing Width | Slot Spacing | Dynamic Radial Load Capacity | Inside Ring Outside Dia. | Centerline To Front Face | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VTWS-231 | Black Oxided Bearing Steel | 25 mm | 2 1/8" | 4 | 7889 lbs. | 2.469" | 1.281" | 1 15/16" | €211.82 | |
 |
VTWS-223 | Black Oxided Bearing Steel | 1 7/16" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | 1 7/16" | €159.77 | |
 |
VTWS-220 | Black Oxided Bearing Steel | 1 1/4" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-222 | Steel | - | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-224 | Black Oxided Bearing Steel | 1 1/2" | 2 1/8" | 4 | 7340 lbs. | 2.063" | 1.188" | - | €180.89 | |
 |
VTWS-227 | Black Oxided Bearing Steel | 1 11/16" | 2 1/8" | 4 | 7901 lbs. | 2.297" | 1.188" | 1 11/16" | €216.95 | |
 |
VTWS-323 | - | 1 7/16" | 2 1/8" | 40" | - | - | - | 1 7/16" | €197.27 |
