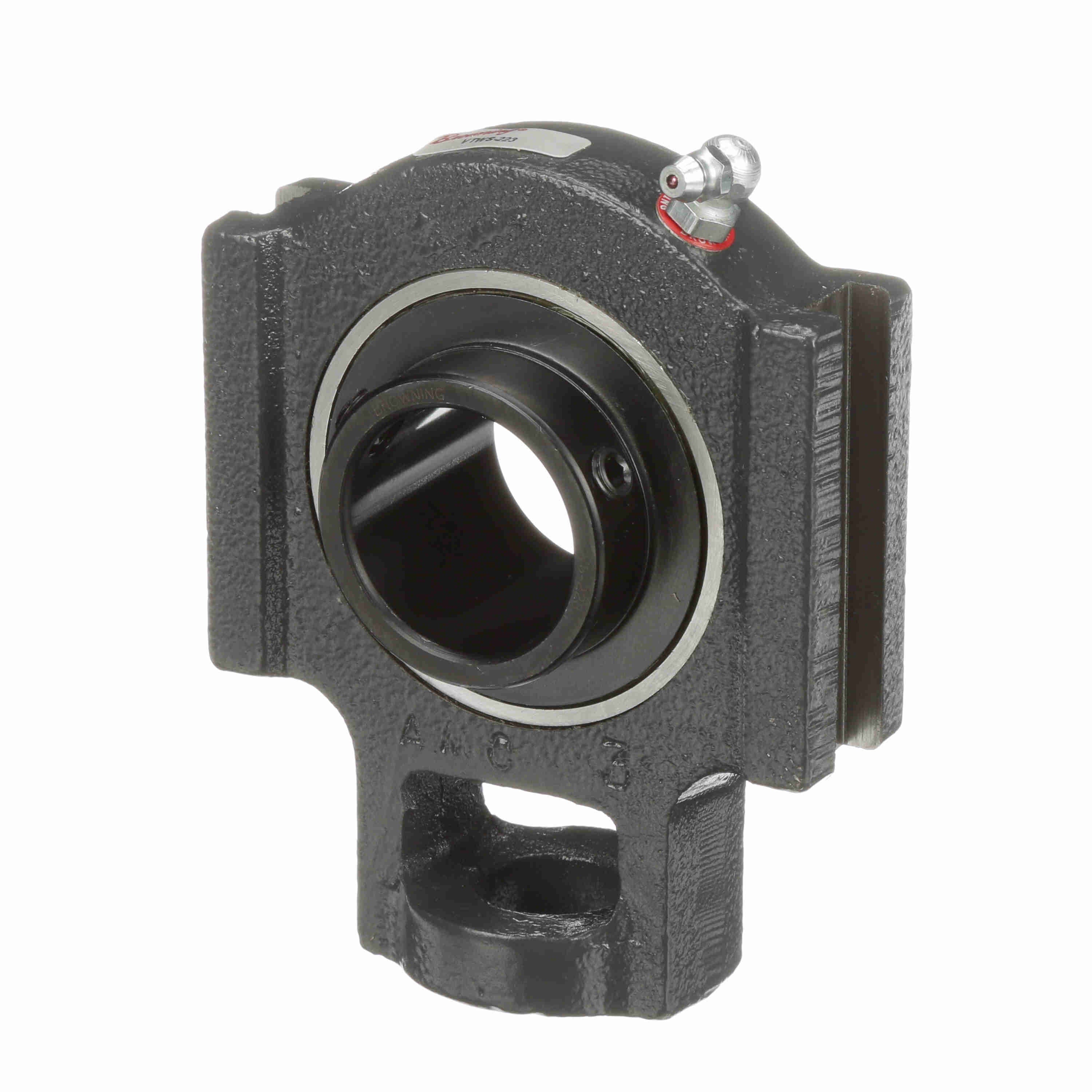

BROWNING VTWS-323 767496 Ball Bearing, 1-7/16 in Bore Dia, Black Oxide Coated, Steel, Medium Duty
Get it by Monday, Aug 17
€197.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Bearing Type | Take Up |
| Bore Dia. | 1 7/16" |
| Compatible Frame Number | 9SF39, 12SF39, 18SF39, 9SF39, 12SF39, 18SF39 |
| Duty Type | Medium Duty |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Housing Material | Cast Iron |
| Housing Width | 2 1/8" |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Locking Device | Set Screw |
| Operating Temp. Range | -20°F to +200°F |
| Overall Height | 4 1/2" |
| Overall Length | 5.5938" |
| Replacement Bearing | VE-123 |
| Rod Hole Dia. | 1 1/8" |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 7/16" |
| Slot Spacing | 40" |
| Type Of Bearing | Ball Bearing |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 11.76 |
| Ship width (cm) | 5.87 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bearing Material | Bore Dia. | Housing Width | Slot Spacing | Dynamic Radial Load Capacity | Inside Ring Outside Dia. | Centerline To Front Face | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VTWS-231 | Black Oxided Bearing Steel | 25 mm | 2 1/8" | 4 | 7889 lbs. | 2.469" | 1.281" | 1 15/16" | €211.82 | |
 |
VTWS-223 | Black Oxided Bearing Steel | 1 7/16" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | 1 7/16" | €159.77 | |
 |
VTWS-220 | Black Oxided Bearing Steel | 1 1/4" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-222 | Steel | - | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-335 | Steel | - | 2 1/2" | 5.125 | 11789 lbs. | 2.984" | 1.563" | 2 3/16" | €319.57 | |
 |
VTWS-224 | Black Oxided Bearing Steel | 1 1/2" | 2 1/8" | 4 | 7340 lbs. | 2.063" | 1.188" | - | €180.89 | |
 |
VTWS-227 | Black Oxided Bearing Steel | 1 11/16" | 2 1/8" | 4 | 7901 lbs. | 2.297" | 1.188" | 1 11/16" | €216.95 |
