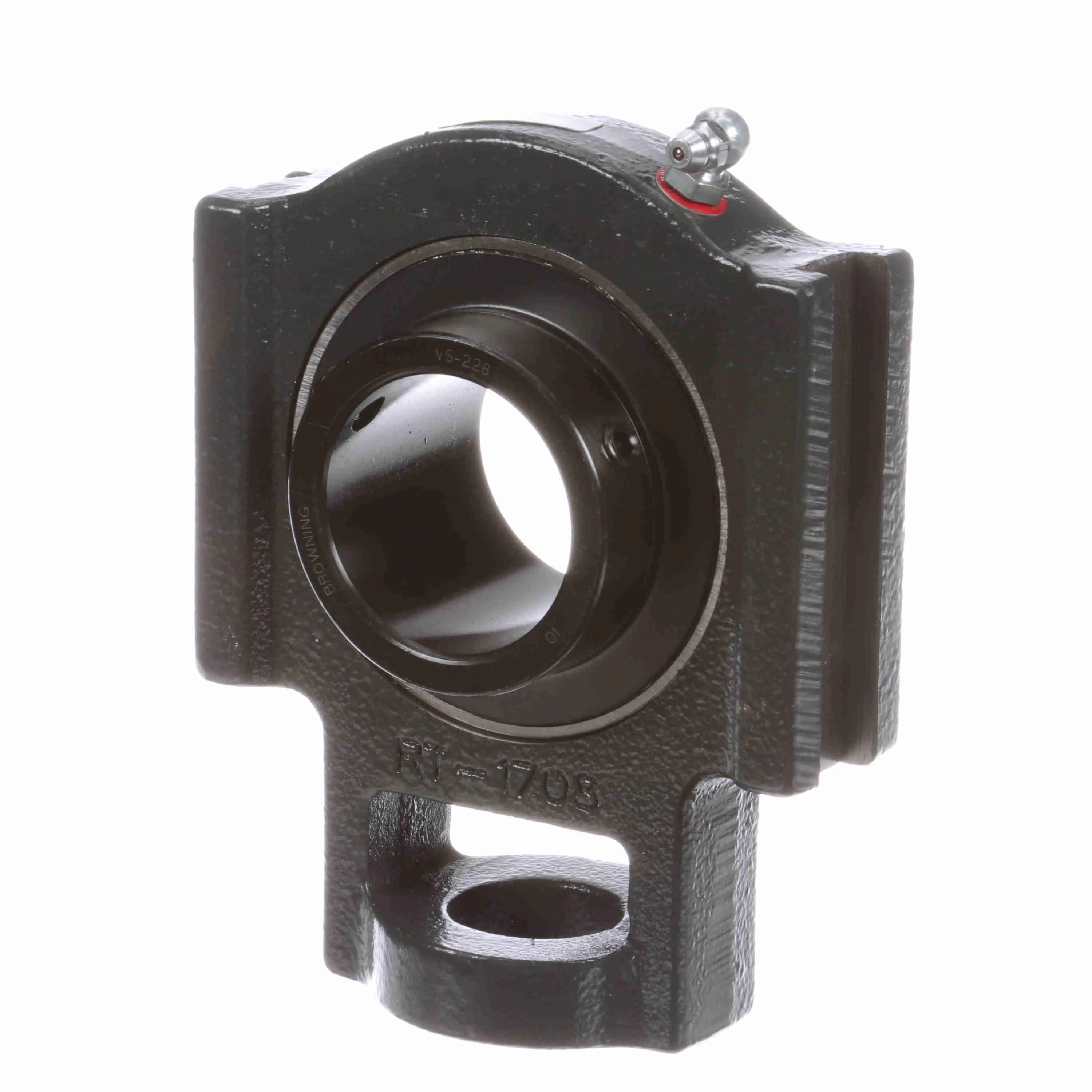

BROWNING VTWS-228 767941 Ball Bearing Unit - Side Mount, 1.5000 Inch Bore, Normal Duty, 0.6875 Inch Slot
Get it by Friday, Aug 14
€216.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Take Up |
| Bore Dia. | 1 3/4" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.188" |
| Compatible Frame Number | 3SF31, 6SF31, 9SF3112SF31, 18SF31, 3SF31, 6SF31, 9SF3112SF31, 18SF31 |
| Dynamic Radial Load Capacity | 7901 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Finish, Coating | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 2 1/8" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Insert No. | VS-228 |
| Inside Ring Outside Dia. | 2.297" |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Max. Speed | 3000 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Length | 5 3/4" |
| Replacement Bearing | VS-230 |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Slot Spacing | 4 |
| Type Of Bearing | Ball Bearing |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 14.61 |
Product Variants
| Product | Model | Bearing Material | Bore Dia. | Housing Width | Slot Spacing | Dynamic Radial Load Capacity | Inside Ring Outside Dia. | Centerline To Front Face | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VTWS-231 | Black Oxided Bearing Steel | 25 mm | 2 1/8" | 4 | 7889 lbs. | 2.469" | 1.281" | 1 15/16" | €211.82 | |
 |
VTWS-223 | Black Oxided Bearing Steel | 1 7/16" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | 1 7/16" | €159.77 | |
 |
VTWS-220 | Black Oxided Bearing Steel | 1 1/4" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-222 | Steel | - | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-335 | Steel | - | 2 1/2" | 5.125 | 11789 lbs. | 2.984" | 1.563" | 2 3/16" | €319.57 | |
 |
VTWS-224 | Black Oxided Bearing Steel | 1 1/2" | 2 1/8" | 4 | 7340 lbs. | 2.063" | 1.188" | - | €180.89 | |
 |
VTWS-227 | Black Oxided Bearing Steel | 1 11/16" | 2 1/8" | 4 | 7901 lbs. | 2.297" | 1.188" | 1 11/16" | €216.95 |
